User Manual for AmpliVox Sound Systems SW230AHS Voice Carrier Portable PA with Headset

Click to enlarge the picture
AmpliVox Sound Systems SW230AHS Voice Carrier Portable PA with Headset Contents of the user manual for the AmpliVox Sound Systems SW230AHS Voice Carrier
  • Product category: Portable PA Systems AmpliVox Sound Systems
  • Brand: AmpliVox Sound Systems
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AmpliVox Sound Systems Portable PA Systems

User manual for the AmpliVox Sound Systems SW230AHS Voice Carrier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AmpliVox Sound Systems product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AmpliVox Sound Systems user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AmpliVox Sound Systems product will considerably shorten its lifespan!



Product description

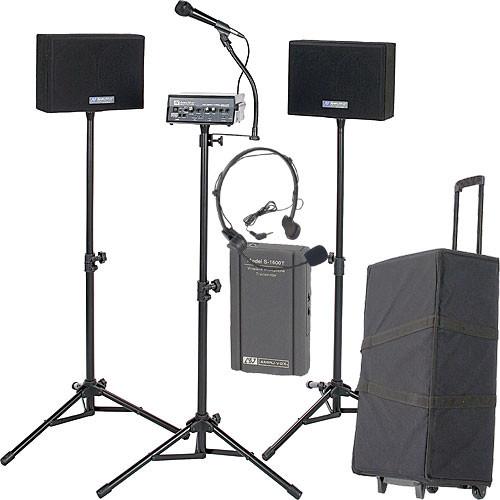

7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The AmpliVox SW230AHS Voice Carrier Portable PA with Headset is a complete, portable P.A. system that stores in a rolling travel case. This system sets up effortlessly and includes an S805A 50-watt multimedia stereo amplifier, two companion speakers, three tripod stands, a handheld microphone with 15' cable, a gooseneck microphone stand, a wireless headset microphone, built-in wireless transmitter and receiver, speaker cables and rolling storage case. The S805A features inputs for a microphone and line audio device with individual level and tone control dials. All the components in the system are compact and completely manageable with a single operator. The SW230AHS Voice Carrier is ideal for mobile presentations, public instruction and more.
    Wireless Receiver Built-In
  • The SW230AHS features a built-in wireless microphone receiver and transmitter for use with the included wireless headset.
    Complete Package
  • The SW230AHS Voice Carrier is an all-in-one portable PA solution with an S805A 50-watt multimedia stereo amplifier, two companion speakers, three tripod stands, a headset microphone, a handheld microphone, a gooseneck mount, 15' microphone cable, speaker cables and rolling storage case.
    Powerful 50 Watt Amplifier
  • The S805A multimedia stereo amplifier delivers an impressive 50 watts of powerful.
    Ready to Go
  • This all-in-one PA tucks discretely into its rugged carrying case and is easily moved from place to place by using the wheels and extension handle.
In the Box AmpliVox Sound Systems SW230AHS Voice Carrier Portable PA with Headset
  • S805A Amplifier with Wireless Receiver
  • 2 x Companion Speakers
  • 3 x Tripod Stands
  • Headset Microphone
  • Gooseneck Microphone Stand
  • Handheld Microphone
  • 15' Microphone Cable
  • 2 x 40' Speaker Cables
  • Rolling Storage Case
  • 6 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AmpliVox Sound Systems SW230AHS Voice Carrier Portable PA with Headset in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AmpliVox Sound Systems SW230AHS Specs

    S805A Multimedia Stereo Amplifier
    Power 50W
    Battery Alkaline or NiCad
    Input Line Inputs with Separate Volume and Tone Controls
    Output Left and Right Output for True Stereo, Line Out Jack for Recording
    S1201 Pair of Jensen Companion Speakers
    Construction Black Carpeted Cabinet
    Speakers 6 x 8" Oval Speakers
    Dimensions (HxWxD) 10 x 13.5 x 5" (25.4 x 34.3 x 12.7cm)
    Weight 15 lbs (6.8kg)
    S2031 Handheld Microphone
    Microphone Type Professional Cardioid Dynamic Mic
    Connections XLR to 1/4"
    S2040 Headset Microphone
    Microphone Type Condenser Microphone with Wireless Options
    S1090 Tripod Stand
    Height 28 - 49" (71.1 x 124.5cm)
    Weight 4 lbs (1.8kg)
    S1960 Carrying Case
    Construction Rugged Reinforced Nylon
    Package Weight 52.0 lb
    Box Dimensions (LxWxH) 32.0 x 17.0 x 12.0"
