User Manual for AMT Bass Clarinet System Click to enlarge the picture
Contents of the user manual for the AMT Bass Clarinet System
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
 |
User manual for the AMT Bass Clarinet System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

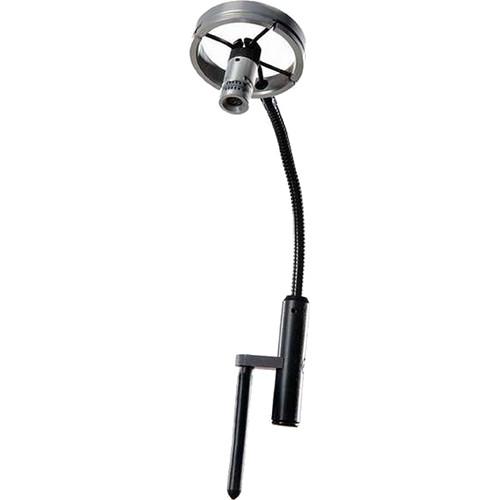

Product description The Bass Clarinet System from AMT includes two AMT LS microphones, two inline preamps, and the bass clarinet clamp. The AMT LS is a professional brass and woodwind microphone system that attaches to the bell of brass and woodwind instruments. The cardioid polar pattern minimizes off-axis noise and feedback. The included BP40 belt-pack provides power and a standard XLR output. The combination provides the perfect mobile microphone system for stage and studio application. To power the microphones, two inline preamps are included (phantom power required). Additionally, the system comes with a bass clarinet clamp. The clamp is intended to fit most major-brand bass clarinets. The clamp can hold upto three microphones (two LS mics included). - LS - Brass & Woodwind Microphone The AMT LS is a professional brass and woodwind microphone system. The LS microphone attaches to the bell of brass and woodwind instruments. The cardioid polar pattern minimizes off-axis noise and feedback. The included BP40 belt-pack provides power and a standard XLR output. The combination provides the perfect mobile microphone system for stage and studio application.
- BP40 Belt-Pack
- The BP40 belt-pack power supple also provides a standard XLR output connection.
- High SPL Handling
- The system provides high SPL handling, minimizing noise while capturing transient peaks.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes off-axis noise and feedback.

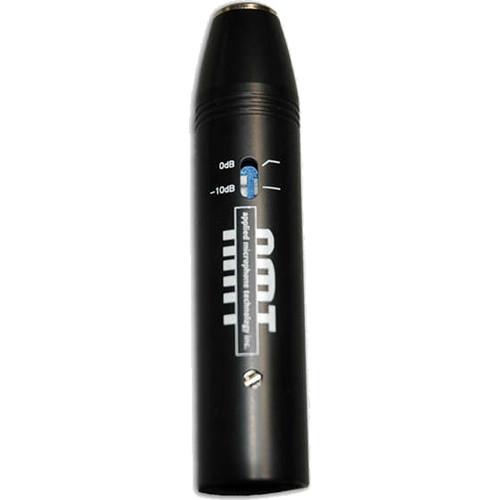

- Inline Preamp/ Power Supply System The AMT Inline Preamp/ Power Supply System comes stock with some AMT Models and microphones that use a disconnecting cable. A perfect choice to use as a hardwired backup preamp with AMT Models. Phantom power is required for operation.
- Works with all D.C.T. Microphones
- Operates with all disconnecting cable microphones when a single channel preamp is necessary
- Reliable Hardwired Preamp
- AMT durability and reliability for all preamp applications

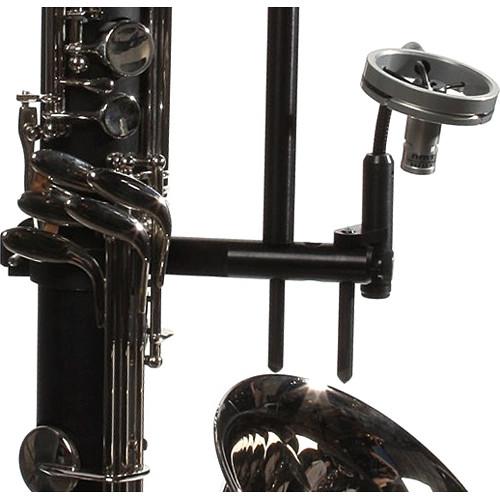

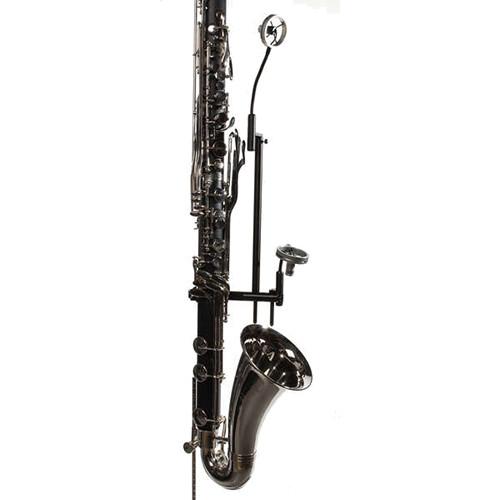

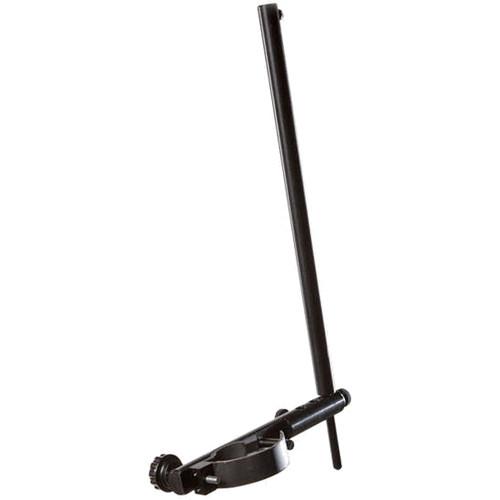

- Bass Clarinet Clamp for System 1, Wi5, and LS The Bass Clarinet Clamp from AMT is designed to comfortably fit most bass clarinet models and is designed for use with the AMT System 1, Wi5, and LS.
- Simple lightweight design attaches to most bass clarinet models
In the Box Bundle Items 2 x LS - Brass & Woodwind Microphone uufxuzyfau 2 x Inline Preamp/ Power Supply System Bass Clarinet Clamp for System 1, Wi5, and LS Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Bass Clarinet System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LS - Brass & Woodwind Microphone
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 18kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 12 to 52V DC | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR On BP40 Preamplifier | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.5" Flex Arm
6' Cable | | Weight | Mic: 36g | | | | Box Dimensions (LxWxH) | 13.9 x 10.0 x 3.5" | - Inline Preamp/ Power Supply System
| Material | Metal construction | | | | Box Dimensions (LxWxH) | 3.75 x 3.25 x 1.25" | - Bass Clarinet Clamp for System 1, Wi5, and LS
| Compatibility | System 1, Wi5, & LS models | | | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
