Product description

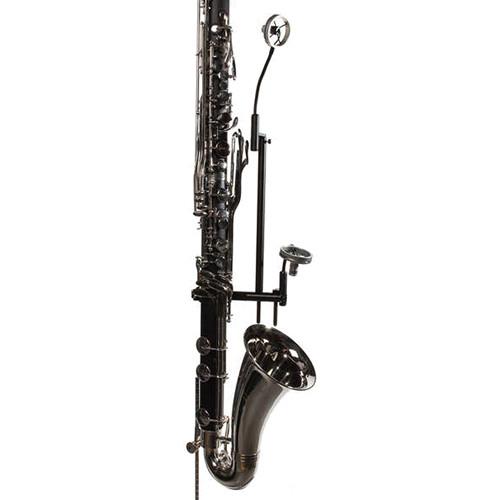

• Bass Clarinet System The Bass Clarinet System from AMT includes two AMT LS microphones, two inline preamps, and the bass clarinet clamp. The AMT LS is a professional brass and woodwind microphone system that attaches to the bell of brass and woodwind instruments. The cardioid polar pattern minimizes off-axis noise and feedback. The included BP40 belt-pack provides power and a standard XLR output. The combination provides the perfect mobile microphone system for stage and studio application. To power the microphones, two inline preamps are included (phantom power required). Additionally, the system comes with a bass clarinet clamp. The clamp is intended to fit most major-brand bass clarinets. The clamp can hold upto three microphones (two LS mics included).
• Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set The Wi5IIC Plug-On Wireless Transmitter Set from AMT comes with the ZRIII multi-channel dual UHF Receiver and the Wi5IIC plug-on transmitter. The system can be completed by adding any AMT microphone for wireless, belt-pack free instrument miking. The included ZRIII dual receiver allows for up to two microphone/transmitter combos to be used with it at a time. It includes two XLR balanced outputs (channels A & B) on the back panel for discrete routing of each channel into your mixer. In addition, channel A also has an unbalanced 1/4" output. The receiver also employs an automatic frequency scan feature for quickly finding the band with the strongest available signal. The Wi5IIC plug-on transmitter can power and attach to any AMT microphone for wireless miking of guitars, saxophones, trumpets and more. The transmitter includes a lithium-ion rechargeable battery with a charge life of up to 8 hours of continuous use. It also features a lit LCD display for visibility on stage, an on/off button for saving battery life during breaks as well as a mute button.
  • Designed for low interference using the UHF 600-930 MHz band
  • 99 channel presets and over 560 possible frequencies
  • Receiver features backlit LCD display that shows RF level, AF level, channel and frequency
  • Transmitter includes a lithium-ion rechargeable battery which can be recharged over 1000 times and gives 7-8 hours of continuous use

2 x

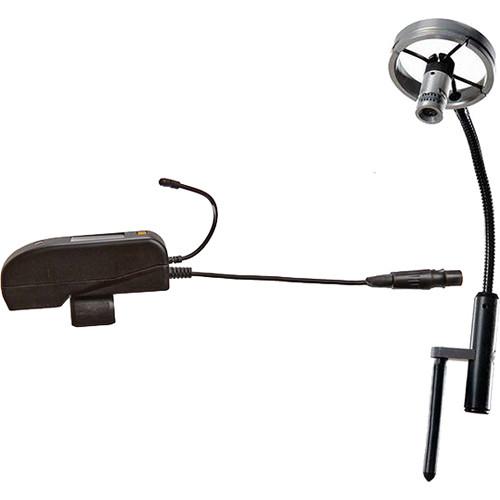

• LS - Brass & Woodwind Microphone

2 x
• Inline Preamp/ Power Supply System

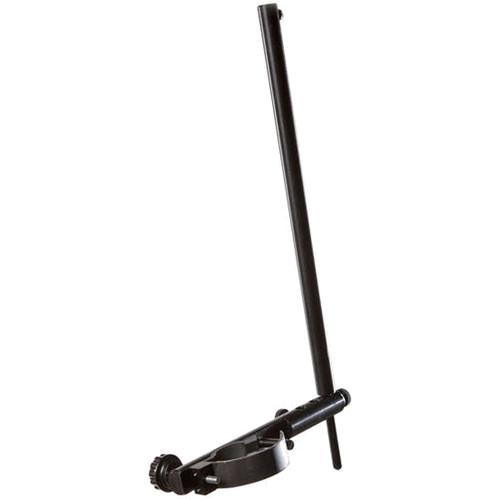

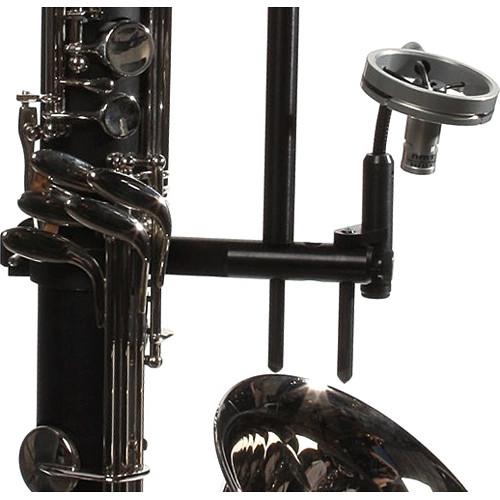

• Bass Clarinet Clamp for System 1, Wi5, and LS

• ZRIII Receiver

• Wi5IIC Transmitter

• 2 x Antennas

• Power Supply

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bass Clarinet System
• Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set

  Carrier Frequency	UHF 600-930 MHz
  Frequency Stability	<±30 ppm
  Dynamic Range	>95 dB
  Total Harmonic Distortion	<0.5%
  Frequency Response	40 to 15,000 Hz ± 3 dB
  Audio Output Level	Balance 400 mV Unbalance 400mV
  Power Supply	15-17 VDC
  Power Consumption	2 W
  S/N Ratio	>95 dB
  Image Rejection	>80 dB Border Upon Channel Rejection: >80 dB
  Receiving Sensitivity	5 dBuV
  De-Emphasis	50 uS
