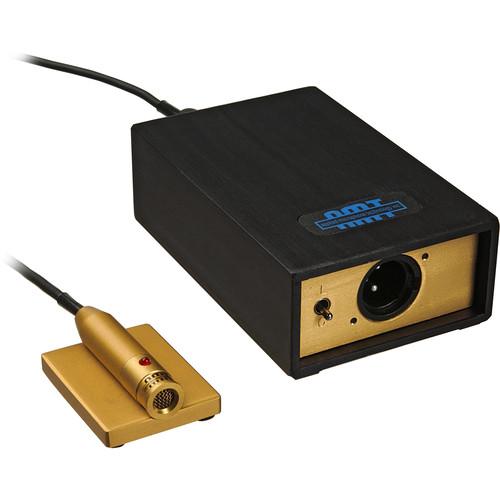

User Manual for AMT M40 Piano Condenser Microphone System Click to enlarge the picture
Contents of the user manual for the AMT M40 Piano Condenser Microphone System
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
|
User manual for the AMT M40 Piano Condenser Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description The M40 Condenser Microphone by AMT is designed to be set inside a grand or upright piano to capture live performances with a natural and even sound. While geared for sound reinforcement, it works equally well in the recording studio or as a boundary mic for a conference or a stage. The microphone is intended to be placed between the 2nd and 3rd sound holes on the cast-iron plate of a grand piano or fastened to the front bottom door of an upright piano. It delivers an accurate sound with a flat frequency response (20 Hz to 20 KHz) and can handle SPL up to 141 dB to capture subtle passages or thunderous fortissimos. The mono design precludes the introduction of phase issues often associated with multiple microphones, and ensures that the individual sound characteristics of each particular piano remain uncompromised. This compact and lightweight microphone allows for a wide range of placement options. It is particularly well suited to work with the piano lid closed, removing the need for cumbersome mic stands and providing additional isolation in loud environments. Housed in a machined-aluminum box, the AP40 preamp features Integrated Circuit technology that incorporates an interchangeable chip for multi-purpose use. It can be powered by external phantom power or 9V battery. Handcrafted in the USA, the M40 features a durable anodized-aluminum construction to withstand high impacts and protect the unit from the rigors of stage use. It comes with a a hard shell case and a 10' audio cable that connects the mic to the preamp. - Designed to be set inside pianos – between the 2nd and 3rd sound holes on the cast-iron plate of a grand piano or fastened to the front bottom door of an upright piano.
- Natural and even sound reproduction with flat frequency response to accurately capture the individual sound characteristics of each particular piano
- Microphone picks up subtle passages as well as fortissimos with sound-pressure levels up to 141 dB, and plenty of gain before feedback
- Designed to work with closed lid in loud environments when isolation is needed
- Compact and lightweight microphone with hemispherical pattern allows for a wide range of placement options
- Durable, anodized aviation-aluminum construction to withstand the rigors of stage use
- AP40 preamp with integrated circuit technology comes with a 10' cable used for connecting to microphone
- Powered by external phantom power or 9V battery – battery is activated only when the mic is plugged into the pre-amp and will last up to 80 hours
- Works equally well in other applications such as boundary miking for conference or stage
UPC: 741360357396 In the Box AMT M40 Piano Condenser Microphone System AP40 Studio Preamp 10' 4-Pin Audio Cable Hard Shell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT M40 Piano Condenser Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT M40 Specs | | | Transducer | Condenser | | Polar Pattern | Hemispherical/Half-Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 141 dB SPL | | Impedance | 150 Ohms | | Sensitivity | -68 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x 9 V | | Operating Voltage | 11 to 52 V | | Length | 2.00" / 50.8 mm | | Diameter | 1.50" / 38.1 mm | | Weight | 1.55 oz / 44 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.2 x 7.5 x 3.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
