User Manual for AMT P800BM Studio Trumpet Microphone System Click to enlarge the picture
Contents of the user manual for the AMT P800BM Studio Trumpet Microphone System
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
 |
User manual for the AMT P800BM Studio Trumpet Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

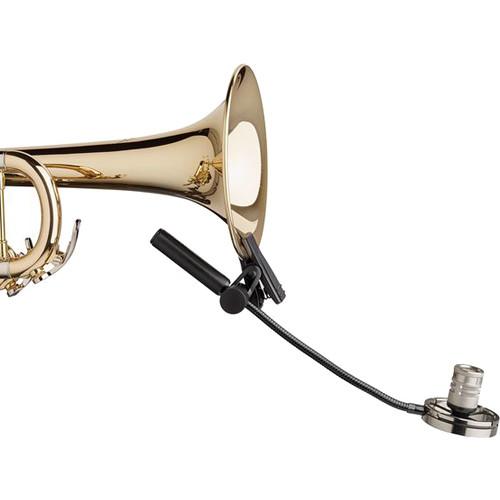

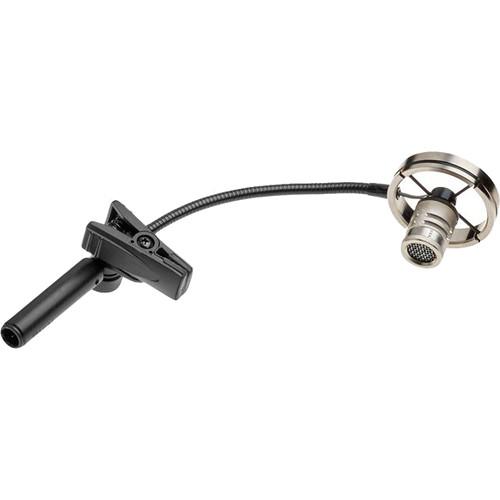

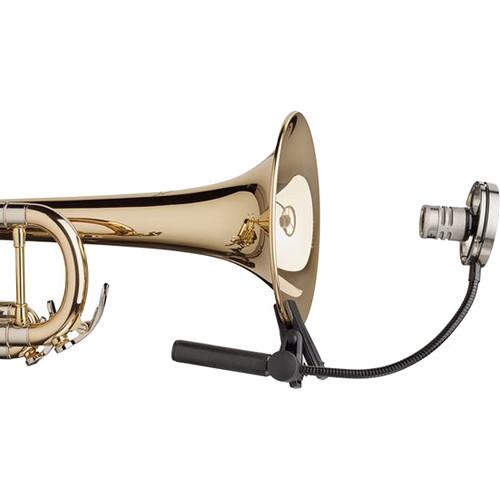

Product description The P800BM Studio Trumpet Microphone System from AMT is a professional trumpet microphone system that combines the P800BM trumpet microphone with the AP40 amplifier. The P800BM Trumpet Microphone is a bell-mounted, high SPL clip-on microphone that features a cardioid microphone element attached to flexible goosenecks. You can clip this mic onto the bell or on the handle of the trumpet. It is suitable for a soloist or lead players who need a bell-mounted solution. For creating a beltpack-free wireless system, the P800BM Trumpet Microphone System features DCT (Disconnect Cable Technology). It allows you to connect your trumpet mic to the Q7 or Wi5IIC systems.The included AMT Studio AP40 Preamp can be used to regulate the microphone's voltage and create a specific frequency curve. The curve is necessary on certain models or instruments in order to maintain the natural sound reproduction in conjunction with achieving the maximum gain before feedback. Studio AP40 supports phantom powering. To change from 9V to phantom power, it features a ground-lift switch. - P800BM On-the-Bell Trumpet Microphone System The P800BM Trumpet Microphone System from AMT is a bell mounted, high SPL clip-on microphone that features a cardioid microphone element attached to a flexible gooseneck. You can clip this mic onto the bell or on the handle of the trumpet. It is suitable for soloist or lead players who need bell mounted solution. For creating a belt-pack free wireless system, the P800BM Trumpet Microphone System features DCT (Disconnect Cable Technology). It allows you to connect your trumpet mic to the Q7 or Wi5IIC systems.
- Fully adjustable swivel clamp to allow for mounting on the trumpet stand
- No need to remove the microphone when using a trumpet stand
- Includes DCT for use with AMT wireless systems
- Suitable for soloist or lead players who need bell mounted solution

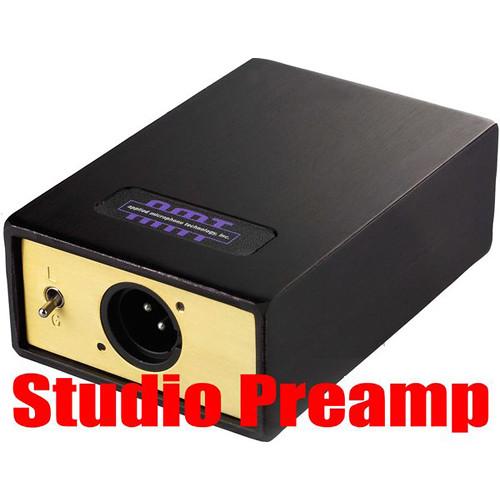

- Studio AP40 Preamp The AMT Studio AP40 Preamp converts microphones to low impedance to regulate their voltage and create a specific frequency curve. The curve is necessary on certain models or instruments in order to maintain the most natural sound reproduction in conjunction with the achieving the most amount of gain before feedback in a live application. Featuring a ground lift switch to change from 9v to phantom power.
- Clean Undistorted Sound
- Professional AMT sound with advanced frequency curve
- Low Impedance Matching
- Converts high impedance microphones to a balanced signal
- Professional Model
- AMT sound expected by professionals
In the Box Bundle Items P800BM On-the-Bell Trumpet Microphone System xywrstdqrwtwwvvuyxdayqusvr Studio AP40 Preamp
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT P800BM Studio Trumpet Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P800BM On-the-Bell Trumpet Microphone System
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 30 Hz to 20 kHz | | Maximum Input Sound Level | 140 dB | | Power Requirements | 12 to 52 VDC | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR | - Studio AP40 Preamp
| Material | Metal Construction | | Outputs | One balanced XLR output | | Power Supply | 9v or phantom power | | | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
