User Manual for AMT Q7-HR3 Complete True Diversity Wireless Microphone System for HR3 Harmonica Microphone Click to enlarge the picture
Contents of the user manual for the AMT Q7-HR3 Complete True Diversity Wireless
- Product category: Wireless Systems AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Wireless Systems
 |
User manual for the AMT Q7-HR3 Complete True Diversity Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

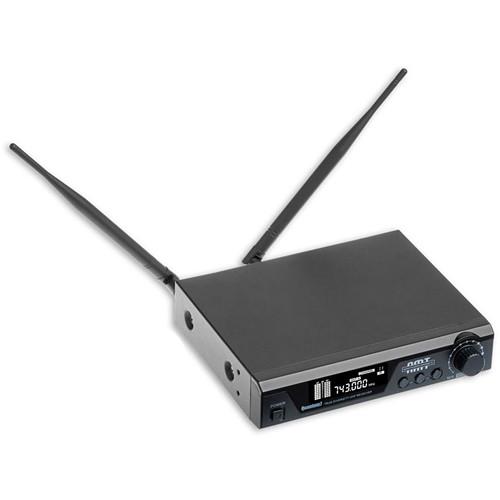

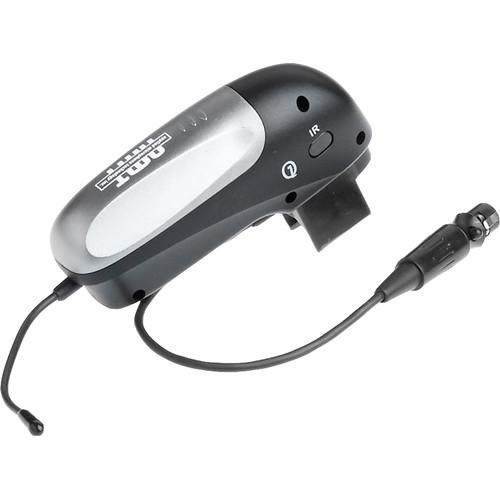

Product description The Q7-HR3 Complete True Diversity Wireless Microphone System from AMT includes Quantum 7 Wireless system and HR3 harmonica microphone. The Quantum 7 Wireless system includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum 7 transmitter clips on to all AMT microphones that include DCT. Simply disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent) the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis which includes a 1/4" and XLR output. The HR3 Harmonica Mic features an adjustable clamp that allows it to be used with a variety of harmonicas, from diatonic to 16-hole. The HR3 features Disconnecting Cable Technology, which allows easy cable replacement, and also provides the ability to interface with various wireless systems, such as the Wi5C beltpack. The mic comes with an in-line preamp, which can be placed on the floor, clipped to a belt, or placed in a pocket. The preamp requires phantom power, and features a low frequency roll-off filter, as well as a 10 dB pad. - Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
- Transmitter can be powered via one AA battery
- Q7 receiver includes heavy-duty metal chassis with rack ears
- Supports 100 channels (region dependent) with up to 30 MHz bandwidth
- PLL frequency stabilization system
- Supports IR syncing from receiver to transmitter
- Wireless operation without a bodypack
- Large analog style volume control for quick and easy access
- Remove the transmitter to convert microphone to a wired setup
- Compatible with all AMT instrument microphones

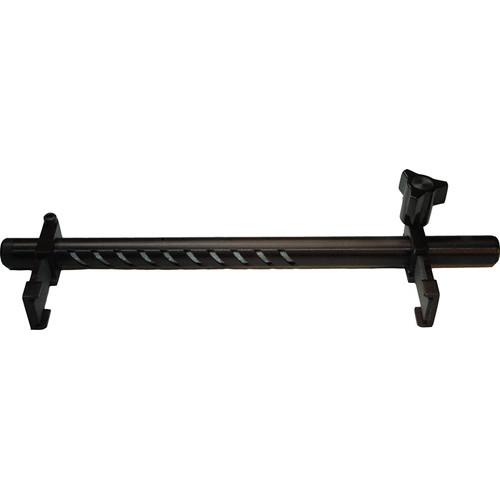

UPC: 741360357662 - HR3 Harmonica Microphone System The HR3 from Applied Microphone Technology is a professional-quality harmonica mic that's designed to provide the most natural sound possible. Unlike other harmonica mics, the HR3 has a unique adjustable clamp that allows it to be used with a variety of harmonicas, from diatonic to 16-hole.
The HR3 features Disconnecting Cable Technology, which allows easy cable replacement, and also provides the ability to interface with various wireless systems, such as the Wi5C beltpack. The mic comes with an inline preamp, which can be placed on the floor, clipped to a belt, or placed in a pocket. The preamp requires phantom power, and features a low frequency rolloff filter, as well as a 10dB pad. A soft carrying pouch is included. Note: Each HR3 is made by hand and colors may vary. You may receive a black or a red model. - Unique adjustable clamp allows the mic to be used with a variety of harmonicas, from diatonic to 16-hole
- Disconnecting Cable Technology allows easy cable replacement, and also provides the ability to interface with various wireless systems, such as the Wi5C beltpack
- Inline preamp features a low frequency rolloff filter and a 10dB pad. The preamp requires phantom power and can be placed on the floor, clipped to a belt, or placed in a pocket
- Soft carrying pouch included
In the Box Bundle Items Quantum7 Wireless System yaayazruyvyr HR3 Harmonica Microphone System Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Q7-HR3 Complete True Diversity Wireless Microphone System for HR3 Harmonica Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum7 Wireless System
| | | Frequency Range | 600 to 928 MHz | | Modulation Mode | FM | | Dynamic Range | >100 dB | | Frequency Response ± 3dB | 60 Hz to 17 kHz | | Total Harmonic Distortion | 105 dB | | Audio Output | 1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket | | Power Supply | 12 to 18 VDC; 500 mA | | Dimensions | 8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm) | | | | Frequency Range | 600 to 928 MHz | | RF Power | 10 mW | | Deviation | ±48 kHz | | Antenna | 1/4 wavelength wire type | | Battery Voltage | 1.5 V (1 x 1.5 V AA battery) | | Operating Time | 12 to 14 hours, battery-dependent | - HR3 Harmonica Microphone System
| | | Box Dimensions (LxWxH) | 10.7 x 4.4 x 3.3" |
