AMT Q7-P800BM Complete Bell Mounted True

User Manual for AMT Q7-P800BM Complete Bell Mounted True Diversity Wireless Microphone System for P800BM Trumpet Microphone

• Product category: Wireless Systems AMT
• Brand: AMT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AMT Wireless Systems

Product description

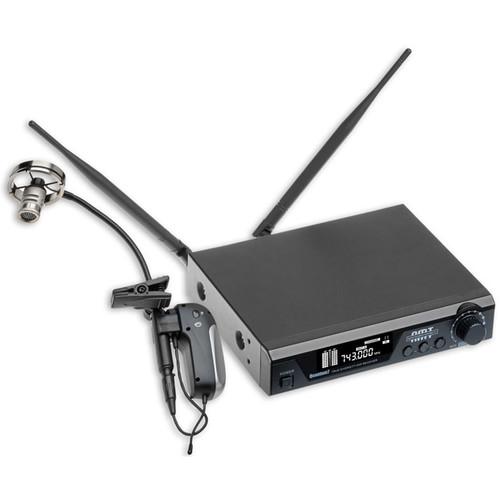

• Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
  • True diversity design
  • Transmitter can be powered via one AA battery
  • Q7 receiver includes heavy-duty metal chassis with rack ears
  • Supports 100 channels (region dependent) with up to 30 MHz bandwidth
  • PLL frequency stabilization system
  • Supports IR syncing from receiver to transmitter
  • LCD display
  • Wireless operation without a bodypack
  • Large analog style volume control for quick and easy access
  • Remove the transmitter to convert microphone to a wired setup
  • Compatible with all AMT instrument microphones
• P800BM On-the-Bell Trumpet Microphone System The P800BM Trumpet Microphone System from AMT is a bell mounted, high SPL clip-on microphone that features a cardioid microphone element attached to a flexible gooseneck. You can clip this mic onto the bell or on the handle of the trumpet. It is suitable for soloist or lead players who need bell mounted solution. For creating a belt-pack free wireless system, the P800BM Trumpet Microphone System features DCT (Disconnect Cable Technology). It allows you to connect your trumpet mic to the Q7 or Wi5IIC systems.
  • Bell mounted
  • Fully adjustable swivel clamp to allow for mounting on the trumpet stand
  • No need to remove the microphone when using a trumpet stand
  • Includes DCT for use with AMT wireless systems
  • Suitable for soloist or lead players who need bell mounted solution

• Q7 Transmitter

• Q7 Receiver

• Rack Ears

• Extension Cables

• Limited 1-Year Warranty

• BP45 Beltpack Preamp

• Case

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Quantum7 Wireless System

  Frequency Range	600 to 928 MHz
  Modulation Mode	FM
  Dynamic Range	>100 dB
  Frequency Response ± 3dB	60 Hz to 17 kHz
  Total Harmonic Distortion	105 dB
  Audio Output	1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket
  Power Supply	12 to 18 VDC; 500 mA
  Dimensions	8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm)

  Frequency Range	600 to 928 MHz
  RF Power	10 mW
  Deviation	±48 kHz
  Antenna	1/4 wavelength wire type
  Battery Voltage	1.5 V (1 x 1.5 V AA battery)
  Operating Time	12 to 14 hours, battery-dependent

• P800BM On-the-Bell Trumpet Microphone System

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Response	30 Hz to 20 kHz
  Maximum Input Sound Level	140 dB
  Power Requirements	12 to 52 VDC
  Output Impedance	150 ohms
  Output Connectors	3-pin XLR
