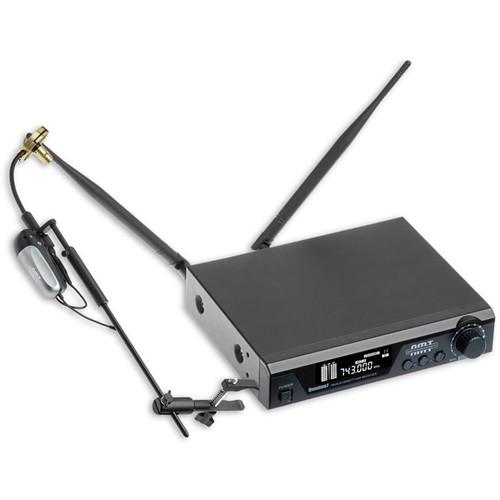

User Manual for AMT Q7-P808OB Complete Off-the-Bell True Diversity Wireless Microphone System for P808OB Trombone Microphone Click to enlarge the picture
Contents of the user manual for the AMT Q7-P808OB Complete Off-the-Bell True Diversity
- Product category: Wireless Systems AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Wireless Systems
|
User manual for the AMT Q7-P808OB Complete Off-the-Bell True Diversity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description The Q7-P808OB Complete True Diversity Wireless Microphone System from AMT includes Quantum 7 Wireless System and P808OB Trombone Microphone. The Quantum7 Wireless System includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. Simply disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent) the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis which includes a 1/4" and XLR output. The AMT P808OB Microphone is off the bell, high SPL clip-on microphone for trombone. The system is intended to clip onto the handle of a trombone. The mic features DCT technology that allows the mic to connect to the Q7 or Wi5II wireless system. - Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
- Transmitter can be powered via one AA battery
- Q7 receiver includes heavy-duty metal chassis with rack ears
- Supports 100 channels (region dependent) with up to 30 MHz bandwidth
- PLL frequency stabilization system
- Supports IR syncing from receiver to transmitter
- Wireless operation without a bodypack
- Large analog style volume control for quick and easy access
- Remove the transmitter to convert microphone to a wired setup
- Compatible with all AMT instrument microphones
UPC: 741360357662 - P808OB Off-the-Bell High SPL Clip-On Microphone The P808OB High SPL Clip-On Microphone from AMT is an off-the-bell mounted, high SPL clip-on microphone for trombone, low brass, high pressure trumpet, and saxophone playing. Designed and manufactured by hand, the system features a specially designed clamp that positions at an angle and reaches around the front of the bell of a trombone. The P808OB High SPL Clip-On Microphone includes features like D.C.T. (Disconnect Cable Technology) with the ability to connect to the Wi5C, creating a belt-pack free wireless system. The P808OB in its stock configuration is a good choice for the players who need a hard wired (non wireless) setup. The setup includes the BP 45 belt-pack preamp. The system also allows the player to easily change to and from AMT's various preamps (sold separately) while also allowing for direct connections to the Wi5C, Shure, or Sennheiser wireless systems (sold separately). P808OB High SPL Clip-On Microphone is a good choice for playing in loud environments such as lead trumpet and rock-n-roll saxophone where high SPL levels are reached. The P808OB is intended for a principal artist, ensemble sections, or as a soloist. The microphone is suspended in a 4-point isolation ring reducing key and handling noise. Phantom power or 1 AA battery is required for hardwired/belt-pack use.
In the Box Bundle Items Quantum7 Wireless System ybzrycqbab P808OB Off-the-Bell High SPL Clip-On Microphone Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Q7-P808OB Complete Off-the-Bell True Diversity Wireless Microphone System for P808OB Trombone Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum7 Wireless System
| | | Frequency Range | 600 to 928 MHz | | Modulation Mode | FM | | Dynamic Range | >100 dB | | Frequency Response ± 3dB | 60 Hz to 17 kHz | | Total Harmonic Distortion | 105 dB | | Audio Output | 1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket | | Power Supply | 12 to 18 VDC; 500 mA | | Dimensions | 8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm) | | | | Frequency Range | 600 to 928 MHz | | RF Power | 10 mW | | Deviation | ±48 kHz | | Antenna | 1/4 wavelength wire type | | Battery Voltage | 1.5 V (1 x 1.5 V AA battery) | | Operating Time | 12 to 14 hours, battery-dependent | - P808OB Off-the-Bell High SPL Clip-On Microphone
