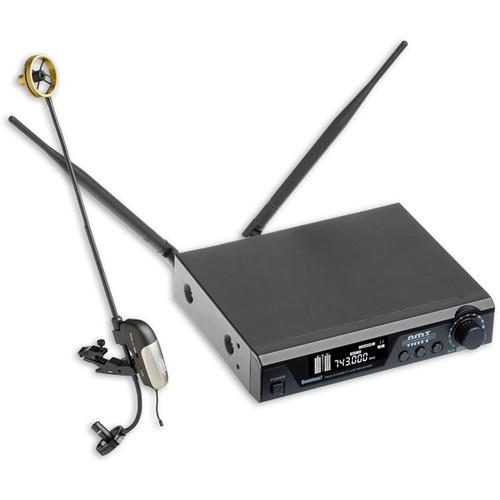

User Manual for AMT Q7-TA2 Complete True Diversity Wireless Microphone System for TA2 Double Element Soprano Saxophone Microphone Click to enlarge the picture
Contents of the user manual for the AMT Q7-TA2 Complete True Diversity Wireless
- Product category: Wireless Systems AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Wireless Systems
|
User manual for the AMT Q7-TA2 Complete True Diversity Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description The Q7-TA2 Complete True Diversity Wireless Microphone System from AMT includes Quantum 7 Wireless System and TA2 Double Element Soprano Saxophone Microphone. The Quantum 7 Wireless System includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum 7 transmitter clips on to all AMT microphones that include DCT. Simply disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis which includes a 1/4" and XLR output. The AMT TA2 is a dual element cardioid microphone designed for capturing a soprano saxophone. The dual microphone features a clamp and gooseneck system that accurately captures the audio from the bell and tonal quality of the keys. The BP40 belt-pack is included and provides power to the microphone, as well as a standard XLR output. - Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
- Transmitter can be powered via one AA battery
- Q7 receiver includes heavy-duty metal chassis with rack ears
- Supports 100 channels (region dependent) with up to 30 MHz bandwidth
- PLL frequency stabilization system
- Supports IR syncing from receiver to transmitter
- Wireless operation without a bodypack
- Large analog style volume control for quick and easy access
- Remove the transmitter to convert microphone to a wired setup
- Compatible with all AMT instrument microphones
- TA2 - Soprano Saxophone Microphone The AMT TA2 is a dual element cardioid microphone designed for capturing soprano saxophone. The dual microphone features a clamp and gooseneck system that accurately captures the audio from the bell and tonal quality of the keys. The BP40 belt-pack is included and provides power to the microphone, as well as a standard XLR output.
- Belt-Pack Power Supply
- The belt-pack power module also provides an XLR output.
- High SPL Handling
- The system provides high SPL handling, minimizing noise while capturing transient peaks.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and off-axis feedback.
In the Box Bundle Items Quantum7 Wireless System xywrstdqrwtwwvvuyxdayqusvr TA2 - Soprano Saxophone Microphone Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Q7-TA2 Complete True Diversity Wireless Microphone System for TA2 Double Element Soprano Saxophone Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quantum7 Wireless System
| | | Frequency Range | 600 to 928 MHz | | Modulation Mode | FM | | Dynamic Range | >100 dB | | Frequency Response ± 3dB | 60 Hz to 17 kHz | | Total Harmonic Distortion | 105 dB | | Audio Output | 1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket | | Power Supply | 12 to 18 VDC; 500 mA | | Dimensions | 8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm) | | | | Frequency Range | 600 to 928 MHz | | RF Power | 10 mW | | Deviation | ±48 kHz | | Antenna | 1/4 wavelength wire type | | Battery Voltage | 1.5 V (1 x 1.5 V AA battery) | | Operating Time | 12 to 14 hours, battery-dependent | - TA2 - Soprano Saxophone Microphone
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 18kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 12 to 52V DC
or 9 Volt Battery | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR On BP40 Preamplifier | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.5" Flex Arm
6' Cable | | Weight | Mic: 36g | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 4.0" |
