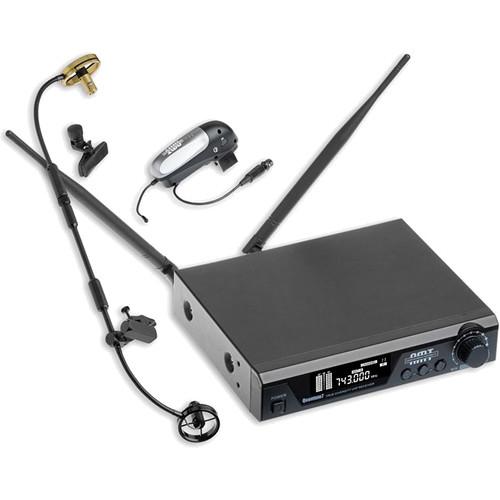

AMT Q7-TA6 Multipurpose Wireless Microphone System

User Manual for AMT Q7-TA6 Multipurpose Wireless Microphone System

• Product category: Wireless Systems AMT
• Brand: AMT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AMT Wireless Systems

Product description

• Ta6 Double Collapsible Multi-purpose Microphone System The Ta6 Double Collapsible Microphone System from AMT is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables.
  Compatibility
  • Soprano, tenor, alto, and bari saxophones
  • • 2-in-1 microphone system
    • Flexible single microphone clamp allows placement on any flanged bell instrument
    • Includes disconnect and double mic/iso-ring suspension system
    • Predetermined mix between two mics
    • Suitable for AMT Wi5C, Wi5IIB, Wi5IIC, and Q7 wireless systems
• Quantum7 Wireless Saxophone System The AMT Quantum7 Wireless Saxophone System is a true-diversity wireless microphone system for saxophone that includes an AA battery powered clip-on transmitter, true diversity 99-channel receiver, AMT LS sax microphone, rack-ears, and cabling. With up to 100 channels to choose from, the system is simple to use while providing professional quality sound.

  The Q7 works with all AMT instrument microphones. Clip on the transmitter to create an operating environment free of belt packs and wires. The receiver is a true diversity design allowing the wireless reception up to approximately 100 meters. The receiver is constructed with a rugged metal chassis which provides both a 1/4" and an XLR output.
  • • True Diversity
    • Transmitter powered by one AA battery
    • Q7 receiver includes heavy duty metal chassis with rack ears
    • 100 channels region dependent with up to 30 MHz bandwidth
    • Compatible with all AMT instrument microphones
    • Remove transmitter to convert microphone to a wired setup
    • Wireless operation without a bodypack
    • True diversity for maximum distance
    • PLL frequency stabilization system
    • 100 preset adjustable frequencies
    • IR sync from receiver to transmitter
    • LCD display of Radio Frequency (RF) and Audio Frequency (AF)
    • EIA standard 1/2 U metal chassis
    • Rack-mountable
    • Designed specifically for acoustic musical instruments
    • Large analog-style volume control for quick and easy access

• BP45 Beltpack Preamp

• AMT Cable

• Case

• Limited 1-Year Warranty

• Clip-On Transmitter

• AMT LS Sax Microphone

• Receiver

• Rack-Ears

• Cabling

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ta6 Double Collapsible Multi-purpose Microphone System

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 18 kHz
  Impedance	150 Ohms Output impedance.

  Output Connectors	1 x 3-Pin XLR
  Cable Length	6' / 1.8 m
  Battery Type	1 x 9 V
  Operating Voltage	11 to 52 V
  Length	3.5" / 8.89 cm Flex arm's dimension.
  Weight	1.269 oz / 36 g

  Box Dimensions (LxWxH)	15.3 x 10.9 x 3.8"

• Quantum7 Wireless Saxophone System

  Frequency Range	600 - 928 MHz
  Modulation Mode	FM
  Dynamic Range	>100 dB
  Frequency Response	60 Hz - 17 kHz ± 3 dB
  Total Harmonic Distortion	105 dB
  Power Supply	12 - 18 VDC / 500 mA
  Audio Output	1x XLR 1x 1/4" jack
  Dimensions	8.3 x 6.7 x 1.73" (210 x 170 x 44 mm)

  Frequency Range	600 - 928 MHz
  RF Power	10 mW
  Microphone	Condenser
  Directivity	Cardioid
  Deviation	± 48 kHz
  Antenna	1/2 wave length wire type
  Battery Voltage	1.5 V (1x 1.5 V AA Battery)
  Power Consumption	12 - 14 hours, battery-dependent

  Box Dimensions (LxWxH)	15.1 x 11.7 x 4.7"
