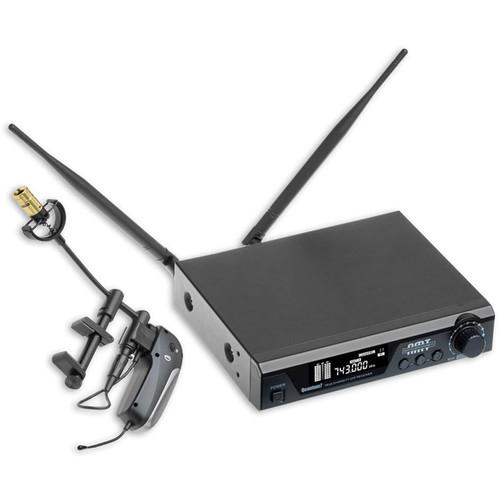

AMT Q7-VS Complete True Diversity Wireless

User Manual for AMT Q7-VS Complete True Diversity Wireless Microphone System

• Product category: Wireless Systems AMT
• Brand: AMT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AMT Wireless Systems

Product description

• VS Violin, Viola, and Mandolin Microphone The VS Violin, Viola, and Mandolin Microphone from AMT is a miniature cardioid, condenser microphone designed for use with violin, viola and mandolin. The entire microphone and mounting mechanism is designed to clamp securely to the body of the instrument without damage to its finish.The element itself is attached to a flexible gooseneck, allowing easy positioning at the sound board. The cardioid polar pattern effectively minimizes off-axis audio that causes noise and feedback. An external beltpack provides the output stage and power supply for the microphone. The beltpack also provides variable impedance for line level output and standard a XLR output connector. The VS is powered with external 11-52VDC phantom power or 9-volt battery.
  Miniature Element and Mounting System
  • The miniature design of the microphone and mount provide an unobtrusive, secure hold without damaging the intrument's finish.
  External Beltpack / Power Supply
  • An external beltpack provides 11-52V phantom power via external sources or houses a 9-Volt battery. The pack features a standard XLR output connection and can be worn during performances.
  Cardioid Polar Pattern
  • The cardioid polar pattern is effective in minimizing noise and residual audio at the off-axis sections of the capsule.
  Shock Mounting
  • The element is mounted in an integrated shock mount that suppresses handling and surface noise.
  Variable Output Impedance
  • The beltpack / output stage features a level control that adjusts of line level output if necessary.
• Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
  • True diversity design
  • Transmitter can be powered via one AA battery
  • Q7 receiver includes heavy-duty metal chassis with rack ears
  • Supports 100 channels (region dependent) with up to 30 MHz bandwidth
  • PLL frequency stabilization system
  • Supports IR syncing from receiver to transmitter
  • LCD display
  • Wireless operation without a bodypack
  • Large analog style volume control for quick and easy access
  • Remove the transmitter to convert microphone to a wired setup
  • Compatible with all AMT instrument microphones

• BP45 Beltpack

• 6-Foot Cable To Beltpack

• Limited 1-Year Warranty

• Q7 Transmitter

• Q7 Receiver

• Rack Ears

• Extension Cables

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VS Violin, Viola, and Mandolin Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	25 Hz to 20 kHz
  Maximum SPL	140 dB SPL
  Impedance	150 Ohms

  Output Connectors	1 x 3-Pin XLR
  Battery Type	1 x 9 V
  Operating Voltage	11 to 52 V
  Length	3.0" / 76.20 mm
  Weight	0.71 oz / 20 g

  Box Dimensions (LxWxH)	15.8 x 11.6 x 4.3"

• Quantum7 Wireless System

  Frequency Range	600 to 928 MHz
  Modulation Mode	FM
  Dynamic Range	>100 dB
  Frequency Response ± 3dB	60 Hz to 17 kHz
  Total Harmonic Distortion	105 dB
  Audio Output	1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket
  Power Supply	12 to 18 VDC; 500 mA
  Dimensions	8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm)

  Frequency Range	600 to 928 MHz
  RF Power	10 mW
  Deviation	±48 kHz
  Antenna	1/4 wavelength wire type
  Battery Voltage	1.5 V (1 x 1.5 V AA battery)
  Operating Time	12 to 14 hours, battery-dependent
