AMT Q7-WS Complete True Diversity Wireless

User Manual for AMT Q7-WS Complete True Diversity Wireless Microphone System

• Product category: Wireless Systems AMT
• Brand: AMT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AMT Wireless Systems

Product description

• WS Clarinet Microphone From Applied Microphone Technologies (AMT), the WS clarinet microphone is unique in design and function. The microphone mounts to the clarinet and features 2 cardioid microphone elements, each attached to flexible goosenecks. The elements are designed to be positioned at the bell and keys of the clarinet.The dual miking technique results in a natural, authentic reproduction of the instruments mechanics as well as the sound produced from the bell. The elements feature cardioid polar patterns, which suppress residual noise and audio signal at the off-axis sections of the capsule. The microphone connects to a separate beltpack that provides the output stage and power. The WS clarinet microphone operates on 12-52 Volt phantom power.
  Dual Element Design
  • The WS features dual cardioid microphone elements to capture signal from the bell and keys of the clarinet.
  Flexible Microphone Positioning
  • The dual capsules are mounted on goosenecks for flexible, easy microphone positioning.
  External Power Supply and Output Stage
  • An external beltpack is wired to the microphone and provides a standard XLR output as well as variable impedance level. The size of the beltpack is convenient for use in performances.
  Cardioid Polar Pattern
  • The cardioid polar patterns greatly reduce residual noise and feedback at the off-axis sections of the microphone capsule.
  Secure Mounting Mechanism
  • The mounting clasp provides a firm grip without damaging the finish of the instrument.
  UPC: 741360357334

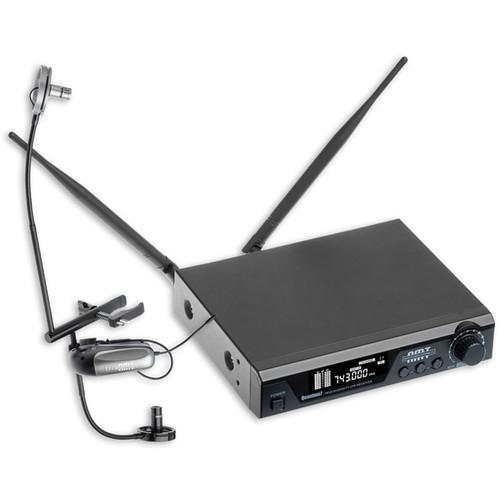

• Quantum7 Wireless System The Quantum7 Wireless System from AMT includes a Q7 AA powered transmitter with true diversity receiver, rack ears, and extension cables. The Quantum7 transmitter clips on to all AMT microphones that include DCT. You simply need to disconnect the cable from the microphone and plug in the transmitter. With 100 channels to choose from (region dependent), the system is simple to use while providing good quality sound. The receiver is a true diversity design allowing the wireless reception up to approximately 328'. The receiver is constructed with a rugged metal chassis, which includes a 1/4" and XLR output. Additionally it features high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.
  • True diversity design
  • Transmitter can be powered via one AA battery
  • Q7 receiver includes heavy-duty metal chassis with rack ears
  • Supports 100 channels (region dependent) with up to 30 MHz bandwidth
  • PLL frequency stabilization system
  • Supports IR syncing from receiver to transmitter
  • LCD display
  • Wireless operation without a bodypack
  • Large analog style volume control for quick and easy access
  • Remove the transmitter to convert microphone to a wired setup
  • Compatible with all AMT instrument microphones

• WS Beltpack

• Attachment Cable

• 1 Year Warranty

• Q7 Transmitter

• Q7 Receiver

• Rack Ears

• Extension Cables

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• WS Clarinet Microphone

  Transducer	Condenser
  Polar Pattern	Figure 8
  Frequency Response	30Hz to 20KHz
  Dynamic Range (Typical)	not specified by manufacturer
  Signal-to-Noise Ratio	not specified by manufacturer
  Maximum Input Sound Level	140dB
  Power Requirements	12-52VDC
  Output Impedance	150 ohms
  Output Connectors	3-pin XLR from WMS Beltpack
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	13" (330mm) (Length)
  Weight	1.09 oz (31g)

  Box Dimensions (LxWxH)	15.2 x 10.8 x 3.8"

• Quantum7 Wireless System

  Frequency Range	600 to 928 MHz
  Modulation Mode	FM
  Dynamic Range	>100 dB
  Frequency Response ± 3dB	60 Hz to 17 kHz
  Total Harmonic Distortion	105 dB
  Audio Output	1 x XLR socket, 1 x 1/4" (6.3 mm) jack socket
  Power Supply	12 to 18 VDC; 500 mA
  Dimensions	8.3 x 6.7 x 1.7" (21.0 x 17.0 x 4.4 cm)

  Frequency Range	600 to 928 MHz
  RF Power	10 mW
  Deviation	±48 kHz
  Antenna	1/4 wavelength wire type
  Battery Voltage	1.5 V (1 x 1.5 V AA battery)
  Operating Time	12 to 14 hours, battery-dependent
