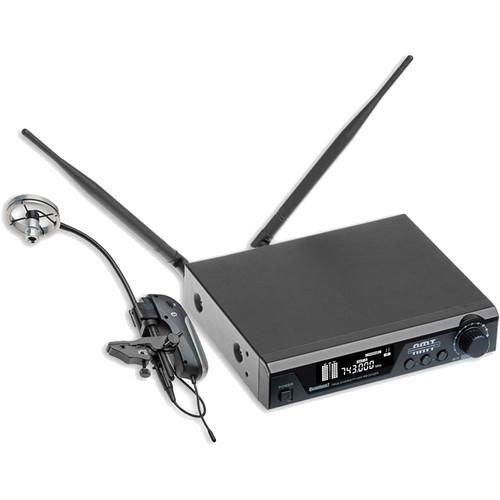

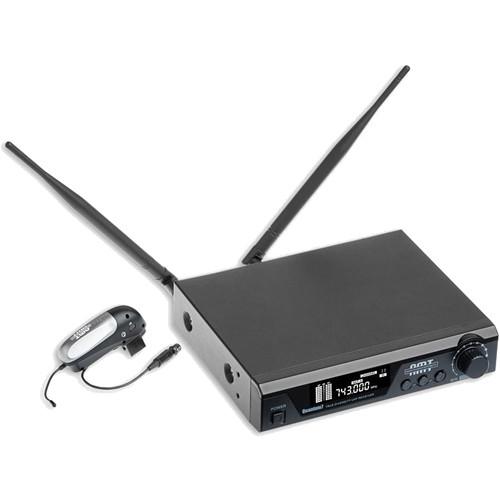

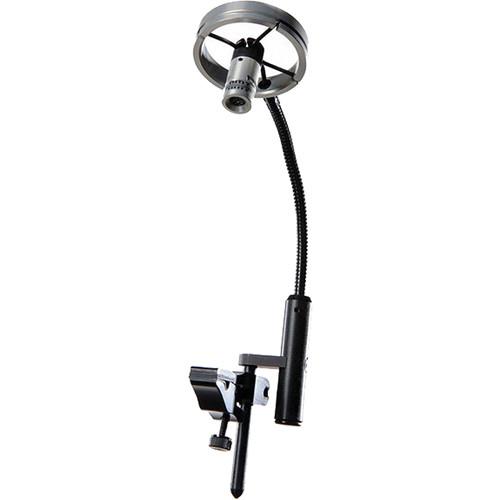

Product description The AMT Quantum7 Wireless Saxophone System is a true-diversity wireless microphone system for saxophone that includes an AA battery powered clip-on transmitter, true diversity 99-channel receiver, AMT LS sax microphone, rack-ears, and cabling. With up to 100 channels to choose from, the system is simple to use while providing professional quality sound.

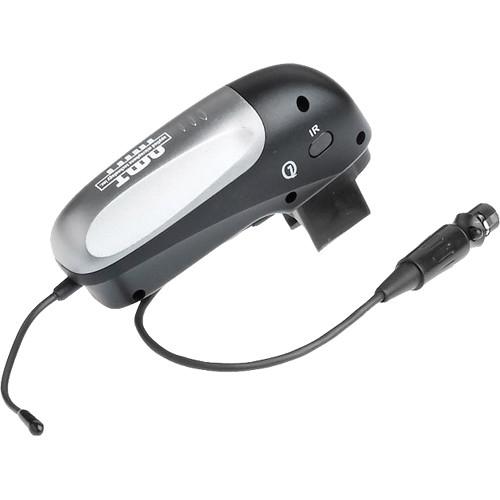

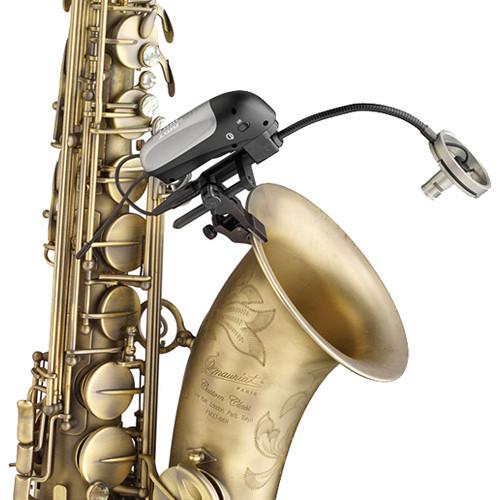

The Q7 works with all AMT instrument microphones. Clip on the transmitter to create an operating environment free of belt packs and wires. The receiver is a true diversity design allowing the wireless reception up to approximately 100 meters. The receiver is constructed with a rugged metal chassis which provides both a 1/4" and an XLR output. -
- True Diversity
- Transmitter powered by one AA battery
- Q7 receiver includes heavy duty metal chassis with rack ears
- 100 channels region dependent with up to 30 MHz bandwidth
- Compatible with all AMT instrument microphones
- Remove transmitter to convert microphone to a wired setup
- Wireless operation without a bodypack
- True diversity for maximum distance
- PLL frequency stabilization system
- 100 preset adjustable frequencies
- IR sync from receiver to transmitter
- LCD display of Radio Frequency (RF) and Audio Frequency (AF)
- EIA standard 1/2 U metal chassis
- Rack-mountable
- Designed specifically for acoustic musical instruments
- Large analog-style volume control for quick and easy access
In the Box AMT Quantum7 Wireless Saxophone System Clip-On Transmitter AMT LS Sax Microphone Receiver Rack-Ears Cabling Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Quantum7 Wireless Saxophone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT Quantum7 Specs | | | Frequency Range | 600 - 928 MHz | | Modulation Mode | FM | | Dynamic Range | >100 dB | | Frequency Response | 60 Hz - 17 kHz ± 3 dB | | Total Harmonic Distortion | 105 dB | | Power Supply | 12 - 18 VDC / 500 mA | | Audio Output | 1x XLR
1x 1/4" jack | | Dimensions | 8.3 x 6.7 x 1.73" (210 x 170 x 44 mm) | | | | Frequency Range | 600 - 928 MHz | | RF Power | 10 mW | | Microphone | Condenser | | Directivity | Cardioid | | Deviation | ± 48 kHz | | Antenna | 1/2 wave length wire type | | Battery Voltage | 1.5 V (1x 1.5 V AA Battery) | | Power Consumption | 12 - 14 hours, battery-dependent | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 15.1 x 11.7 x 4.7" |
