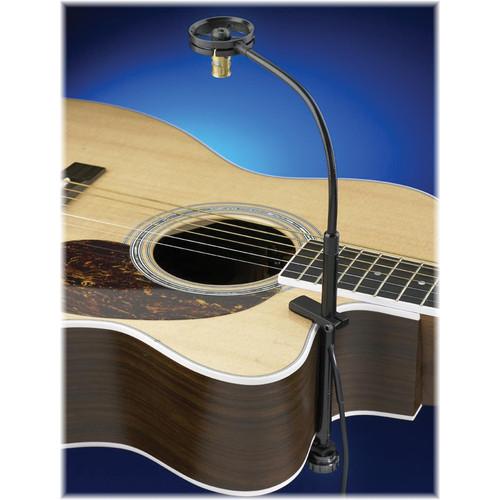

User Manual for AMT S15G Studio Acoustic Guitar Microphone System with AP40 Preamplifier Click to enlarge the picture
Contents of the user manual for the AMT S15G Studio Acoustic Guitar Microphone
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
|
User manual for the AMT S15G Studio Acoustic Guitar Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description The S15G Studio Guitar Microphone from AMT is a professional acoustic guitar microphone, designed for capturing in crucial recording, and live sound reinforcement applications. The microphone's design accommodates any acoustic guitar body. The microphone capsule itself features a highly sensitive condenser element with a cardioid polar pattern and wide frequency response. The capsule is optimized for accurate and transparent reproduction of an acoustic guitar.The S15G features a secure clamp-on mounting mechanism that provides a secure fit without damaging the instrument's finish. A flexible gooseneck enables easy microphone positioning for optimum results. The microphone features an cable, which connects to the AMT AP40 Studio preamplifier (included). The preamp features standard XLR inputs and outputs as well as variable gain for line level output. - Cardioid Polar Pattern
- The S15G features a tight cardioid polar pattern, minimizing adjacent, residual noise.
- Contoured Frequency Response
- The contoured frequency response is optimized for accurate reproduction of a guitar.
- Sleek Unobtrusive Mounting Design
- The sleek microphone profile and clamp on mount mechanism is designed to secure the microphone without damage to the instrument's finish.
- External Power Supply and Output Stage
- The microphone features an external power module and output stage with 3-pin XLR output and 10-foot cable.
In the Box AMT S15G Studio Acoustic Guitar Microphone System with AP40 Preamplifier AP40 Studio Preamplifer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT S15G Studio Acoustic Guitar Microphone System with AP40 Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT S15G Studio Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 150 Ohms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 9 to 52 V | | Length | 6.0" / 152.40 mm | | Weight | 1.73 oz / 49 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 13.8 x 10.5 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
