AMT S18-5C Wi5IIC Clip-On Wireless System

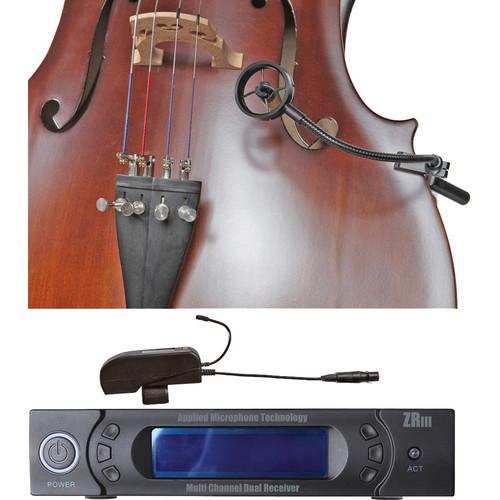

User Manual for AMT S18-5C Wi5IIC Clip-On Wireless System with S18C Cello Microphone System

• Product category: Wireless Systems AMT
• Brand: AMT
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for AMT Wireless Systems

Product description

• Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set The Wi5IIC Plug-On Wireless Transmitter Set from AMT comes with the ZRIII multi-channel dual UHF Receiver and the Wi5IIC plug-on transmitter. The system can be completed by adding any AMT microphone for wireless, belt-pack free instrument miking. The included ZRIII dual receiver allows for up to two microphone/transmitter combos to be used with it at a time. It includes two XLR balanced outputs (channels A & B) on the back panel for discrete routing of each channel into your mixer. In addition, channel A also has an unbalanced 1/4" output. The receiver also employs an automatic frequency scan feature for quickly finding the band with the strongest available signal. The Wi5IIC plug-on transmitter can power and attach to any AMT microphone for wireless miking of guitars, saxophones, trumpets and more. The transmitter includes a lithium-ion rechargeable battery with a charge life of up to 8 hours of continuous use. It also features a lit LCD display for visibility on stage, an on/off button for saving battery life during breaks as well as a mute button.
  • Designed for low interference using the UHF 600-930 MHz band
  • 99 channel presets and over 560 possible frequencies
  • Receiver features backlit LCD display that shows RF level, AF level, channel and frequency
  • Transmitter includes a lithium-ion rechargeable battery which can be recharged over 1000 times and gives 7-8 hours of continuous use
• S18C Cello Microphone The S18C Cello Microphone from AMT is designed for accurate cello reproduction, and can be used with crucial recording or professional sound reinforcement applications. It features a high quality condenser element with a tight cardioid polar pattern for a rich audio signal with accurate detail. Additionally, the cardioid element minimizes noise caused by adjacent instruments, monitors, and room ambiance. The system comes with an AP40 Floor Preamp / output stage with a single 3-pin XLR output, providing a sleek, low-profile configuration for easy positioning. The microphone's attachment mechanism is designed to clasp to the instrument without damage to the instrument's finish. A flexible 10" gooseneck allows for convenient positioning over the sound hole and a 4-point isolation suspension system eliminates handling and surface noise.
  Cardioid Polar Pattern
  • The S18C features a tight cardioid polar pattern for minimizing adjacent, residual noise.
  Contoured Frequency Response
  • The microphone's contoured frequency response is optimized for accurate cello reproduction.
  Sleek Unobtrusive Mounting Design
  • The sleek microphone profile and clamp on mount mechanism are designed to secure the microphone without damaging the instrument's finish.
  External Power Supply and Output Stage
  • The microphone features an external power module and output stage with a 3-pin XLR output and a 10' cable.

• ZRIII Receiver

• Wi5IIC Transmitter

• 2 x Antennas

• Power Supply

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set

  Carrier Frequency	UHF 600-930 MHz
  Frequency Stability	<±30 ppm
  Dynamic Range	>95 dB
  Total Harmonic Distortion	<0.5%
  Frequency Response	40 to 15,000 Hz ± 3 dB
  Audio Output Level	Balance 400 mV Unbalance 400mV
  Power Supply	15-17 VDC
  Power Consumption	2 W
  S/N Ratio	>95 dB
  Image Rejection	>80 dB Border Upon Channel Rejection: >80 dB
  Receiving Sensitivity	5 dBuV
  De-Emphasis	50 uS

• S18C Cello Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 18 kHz
  Maximum SPL	124 dB SPL
  Impedance	150 Ohms

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	11 to 52 V
  Weight	2.05 oz / 58 g

  Box Dimensions (LxWxH)	15.3 x 10.9 x 3.8"
