User Manual for AMT S19i Electret-Condenser Microphone for Cello Click to enlarge the picture
Contents of the user manual for the AMT S19i Electret-Condenser Microphone for Cello
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
 |
User manual for the AMT S19i Electret-Condenser Microphone for Cello contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

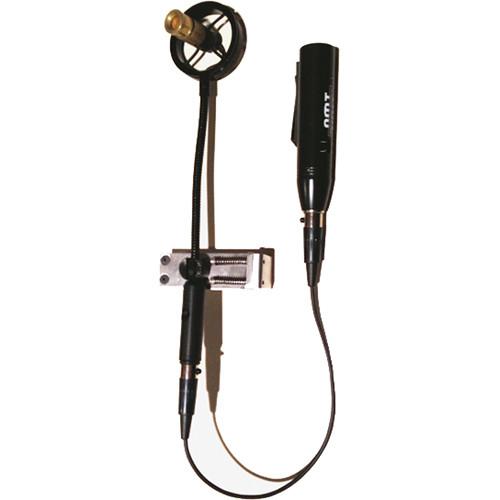

Product description The S19i Electret-Condenser Microphone for Cello by AMT is specifically designed for miking cellos, and is intended to clamp onto the instrument's tail piece, allowing for safe, quick and easy removal, for traveling or for microphone storage. The S19i is identical sonically to the S18C, but includes upgraded features, such as its clamp-to-tailpiece mounting, D.C.T. (a disconnecting cable), and the user's ability to choose from a number AMT's various mic preamps, if desired. The microphone is designed to use a very tight microphone polar pick-up pattern to give high rejection to extraneous surrounding noise, and at the same time, reproduce accurately the subtleties of the cello.

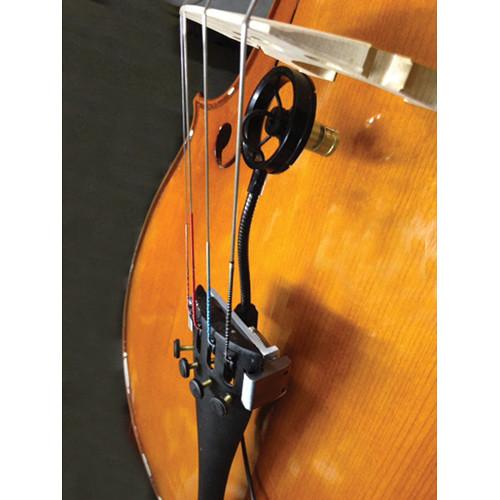

As placement is especially important with an instrument that has a fine finish and varying dimensions, this microphone's attachment mechanism is designed to secure the mic to the tailpiece of the cello, while allowing the gooseneck to be placed in different positions. The flex arm is easy to position and is engineered to retain its placement throughout active performances. The attachment mechanism is spring-loaded, and can be attached onto the tailpiece with one hand.

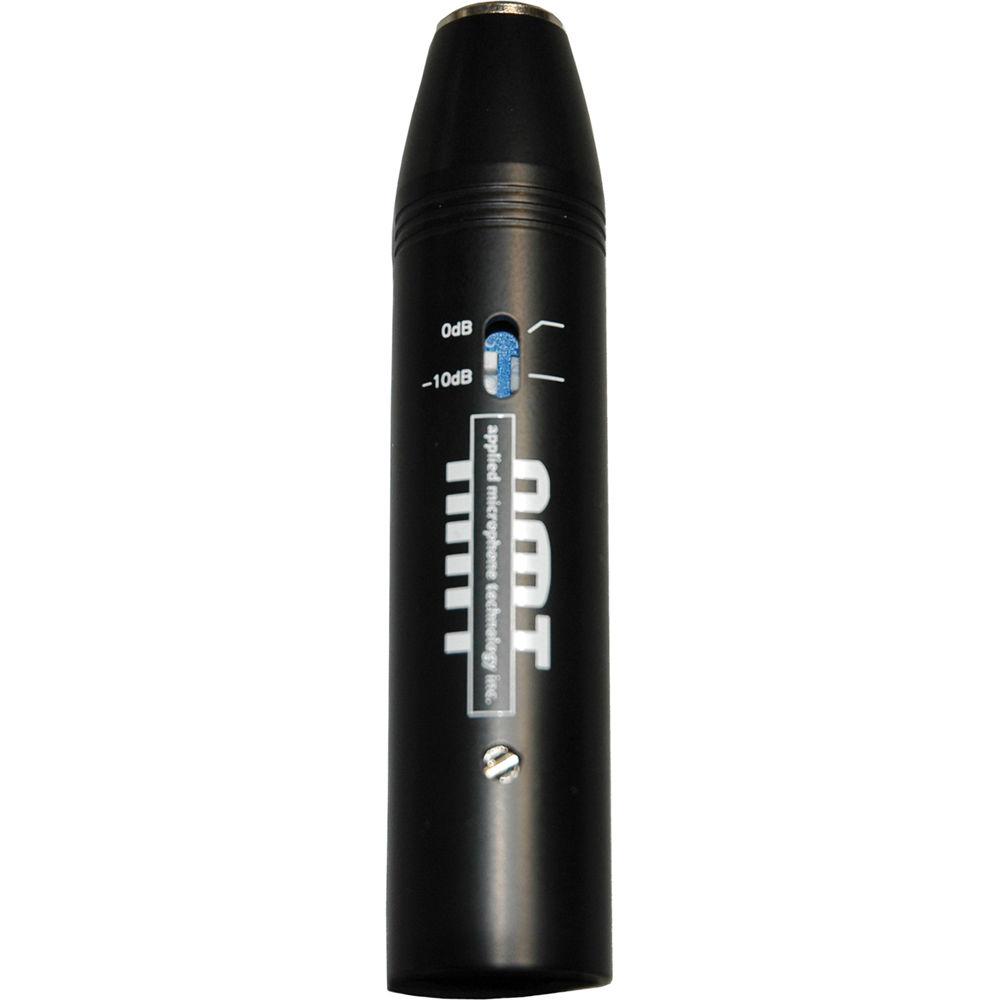

The AMT Inline Preamp is included, and phantom power is required. The output is terminated with a single male XLR type connector for balanced use, and the mic is connected to the pre-amp by a four pin locking connector. The S19i is manufactured with lightweight aluminum in order to keep the mass low.
The S19i comes complete with the Inline preamp, carry pouch, and AMT disconnecting cable technology to allow the microphone to be used wireless with the AMT Wi5IIC, Shure Line 6, or Sabine Wireless. Sennheiser cable sold separately. The microphone is manufactured by hand. - Clamp-to-tailpiece mounting

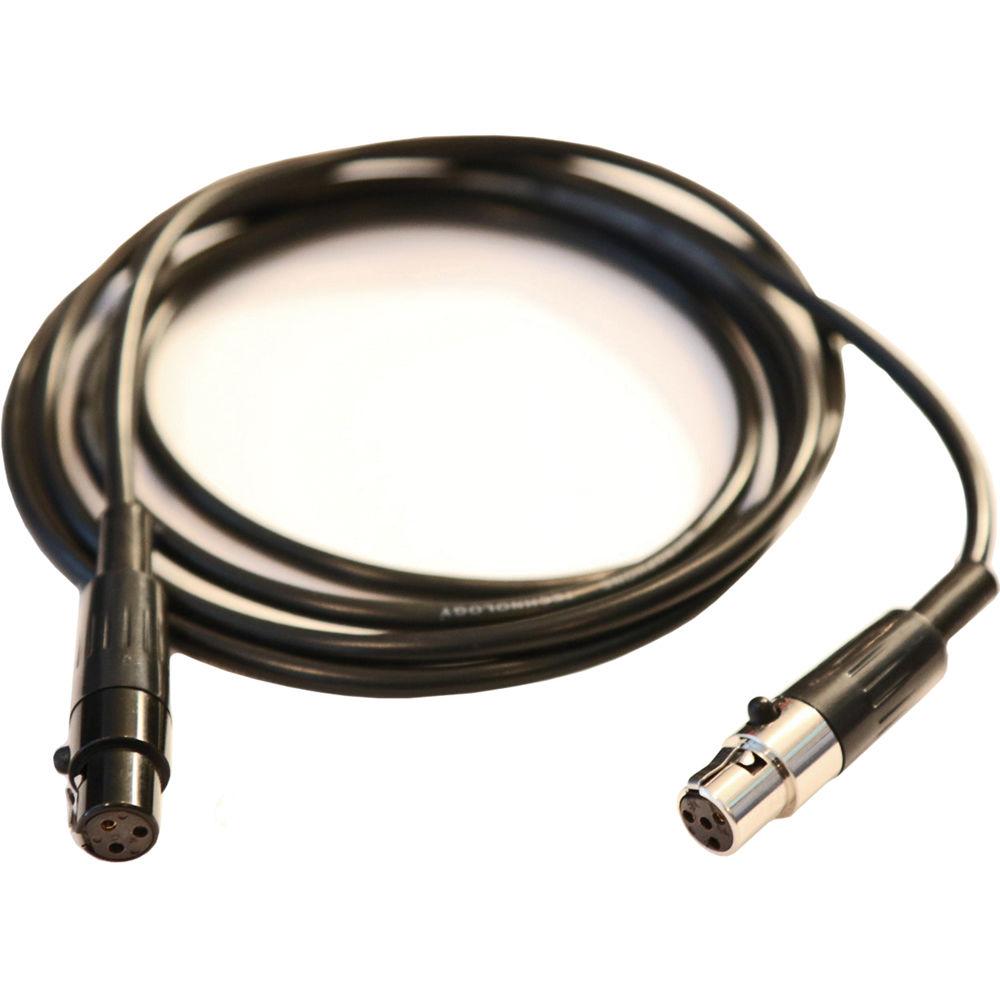

- D.C.T. (disconnecting cable technology)
- Can utilize other AMT microphone preamps
- Gooseneck can be positioned in many positions while retaining its placement
- Light-weight aluminum material
In the Box AMT S19i Electret-Condenser Microphone for Cello Inline Preamp/ Power Supply System Disconnecting Cable (D.C.T.) Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT S19i Electret-Condenser Microphone for Cello in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT S19i Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 18 kHz | | Maximum SPL | 124 dB SPL | | Impedance | 150 Ohms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 11 to 52 V | | Weight | 2.05 oz / 58 g |
