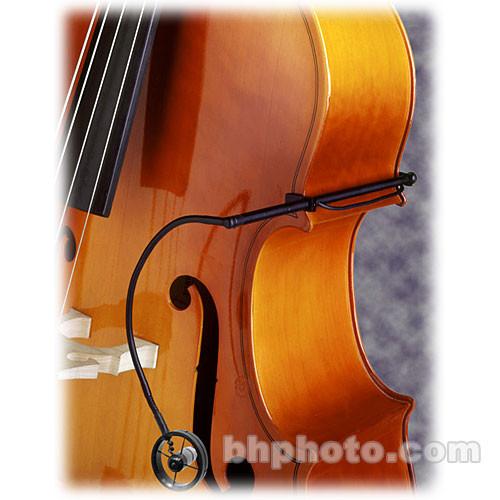

User Manual for AMT S25B Acoustic Bass Microphone System Click to enlarge the picture
Contents of the user manual for the AMT S25B Acoustic Bass Microphone System
- Product category: Instrument Microphones AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Instrument Microphones
|
User manual for the AMT S25B Acoustic Bass Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description Complimenting an already extensive list of instrument microphones, the Applied Microphone Technology (AMT) S25B is designed to accurately reproduce acoustic bass. Designed for crucial recording or professional sound reinforcement applications, the S25B features a high quality condenser element with a tight cardioid polar pattern. The result is an audio signal with rich, accurate detail and minimal noise caused by adjacent instruments, monitors and room ambiance.The S25B features an external power supply / output stage with a single 3-pin XLR output. The external power module enables a sleek, low-profile microphone design that provides easy positioning without damage to the instrument's surface. The attachment mechanism is designed to clasp to the instrument without damage to the instrument's finish. A flexible 10-inch gooseneck allows easy positioning over the sound hole. The microphone itself features a 4-point isolation suspension system that eliminates handling and surface noise. - Cardioid Polar Pattern
- The S25B features a tight cardioid polar pattern, minimizing adjacent, residual noise.
- Contoured Frequency Response
- The contoured frequency response is optimized for accurate reproduction of acoustic bass.
- Sleek Unobtrusive Mounting Design
- The sleek microphone profile and clamp on mount mechanism is designed to secure the microphone without damage to instrument's finish.
- External Power Supply and Output Stage
- The microphone features an external power module and output stage with 3-pin XLR output and 10-foot cable.
In the Box AMT S25B Acoustic Bass Microphone System 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT S25B Acoustic Bass Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT S25B Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 30Hz to 10KHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 12 to 52VDC | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 10" Flex Arm | | Weight | 2.5 oz (71g) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 15.8 x 11.7 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
