Product description The TA2-5C Wi5IIC Clip-On Wireless System with TA2 Double Element Soprano Saxophone Microphone from Applied Microphone Technology Inc. is suitable for any player looking to replicate sounds from an instrument without the hassles of a wired system. This system includes the TA2 Double Element Soprano Saxophone Microphone and the Wi5IIC Clip-On Wireless System.
Designed and manufactured by hand, the TA2 Double Element Soprano Saxophone Microphone is suitable for professionals looking for natural sound reproduction from a clip-on microphone. Professional players spend their entire life creating 'their' sound, and the TA2-5C captures those sounds. It not only changes the playing experience, but also allows the audience to hear exactly what you want them to hear.

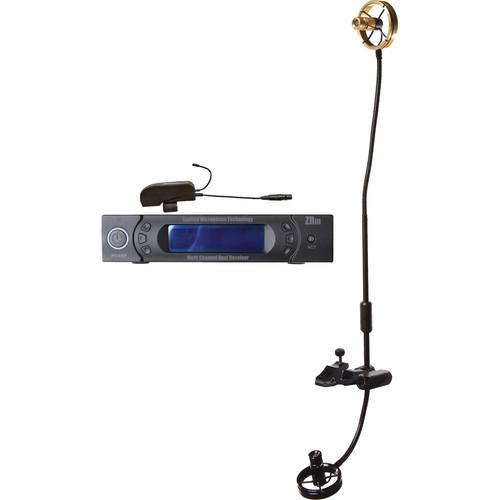

The Wi5IIC Clip-On Wireless System creates the belt pack free operating environment. It includes the ZRIII Multi-Channel Dual UHF Receiver and the Wi5IIC Plug-On Transmitter. The Wi5IIC Plug-On Transmitter can clip on and off of all AMT model microphones by using a hand-machined clip that locks onto various mounting brackets throughout the microphone lineup. - Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set The Wi5IIC Plug-On Wireless Transmitter Set from AMT comes with the ZRIII multi-channel dual UHF Receiver and the Wi5IIC plug-on transmitter. The system can be completed by adding any AMT microphone for wireless, belt-pack free instrument miking. The included ZRIII dual receiver allows for up to two microphone/transmitter combos to be used with it at a time. It includes two XLR balanced outputs (channels A & B) on the back panel for discrete routing of each channel into your mixer. In addition, channel A also has an unbalanced 1/4" output. The receiver also employs an automatic frequency scan feature for quickly finding the band with the strongest available signal. The Wi5IIC plug-on transmitter can power and attach to any AMT microphone for wireless miking of guitars, saxophones, trumpets and more. The transmitter includes a lithium-ion rechargeable battery with a charge life of up to 8 hours of continuous use. It also features a lit LCD display for visibility on stage, an on/off button for saving battery life during breaks as well as a mute button.
- Designed for low interference using the UHF 600-930 MHz band
- 99 channel presets and over 560 possible frequencies
- Receiver features backlit LCD display that shows RF level, AF level, channel and frequency
- Transmitter includes a lithium-ion rechargeable battery which can be recharged over 1000 times and gives 7-8 hours of continuous use

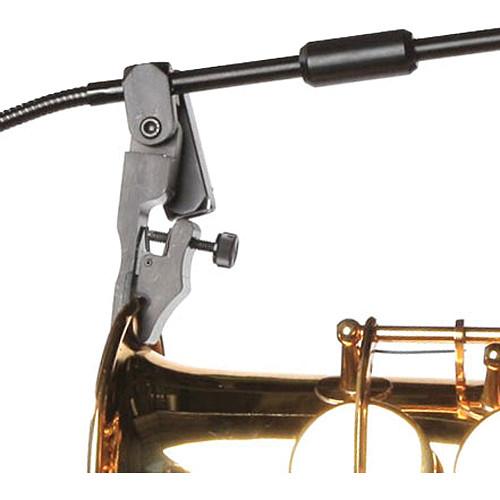

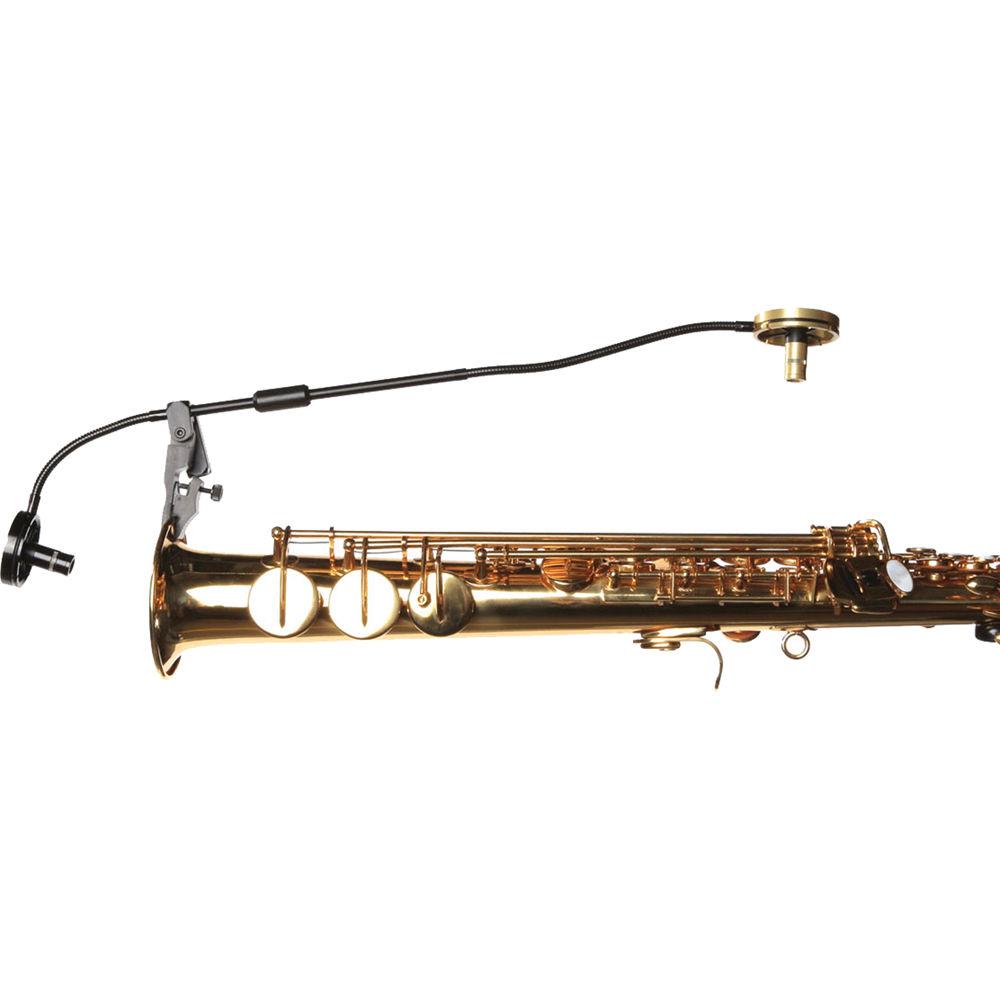

- TA2 - Soprano Saxophone Microphone The AMT TA2 is a dual element cardioid microphone designed for capturing soprano saxophone. The dual microphone features a clamp and gooseneck system that accurately captures the audio from the bell and tonal quality of the keys. The BP40 belt-pack is included and provides power to the microphone, as well as a standard XLR output.
- Belt-Pack Power Supply
- The belt-pack power module also provides an XLR output.
- High SPL Handling
- The system provides high SPL handling, minimizing noise while capturing transient peaks.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and off-axis feedback.
In the Box Bundle Items Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set TA2 - Soprano Saxophone Microphone xbsqatsxvzerrddar Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT TA2-5C Wi5IIC Clip-On Wireless System with TA2 Double Element Soprano Saxophone Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set
| Carrier Frequency | UHF 600-930 MHz | | Frequency Stability | <±30 ppm | | Dynamic Range | >95 dB | | Total Harmonic Distortion | <0.5% | | Frequency Response | 40 to 15,000 Hz ± 3 dB | | Audio Output Level | Balance 400 mV
Unbalance 400mV | | Power Supply | 15-17 VDC | | Power Consumption | 2 W | | S/N Ratio | >95 dB | | Image Rejection | >80 dB
Border Upon Channel Rejection: >80 dB | | Receiving Sensitivity | 5 dBuV | | De-Emphasis | 50 uS | - TA2 - Soprano Saxophone Microphone
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 18kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 12 to 52V DC
or 9 Volt Battery | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR On BP40 Preamplifier | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.5" Flex Arm
6' Cable | | Weight | Mic: 36g | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 4.0" |
