User Manual for AMT TA2 - Double Element Soprano Saxophone Microphone Wired for Sennheiser 1 8" Mini Wireless Bodypack Transmitters Click to enlarge the picture
Contents of the user manual for the AMT TA2 - Double Element Soprano
- Product category: Microphones for Wireless AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Microphones for Wireless
 |
User manual for the AMT TA2 - Double Element Soprano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

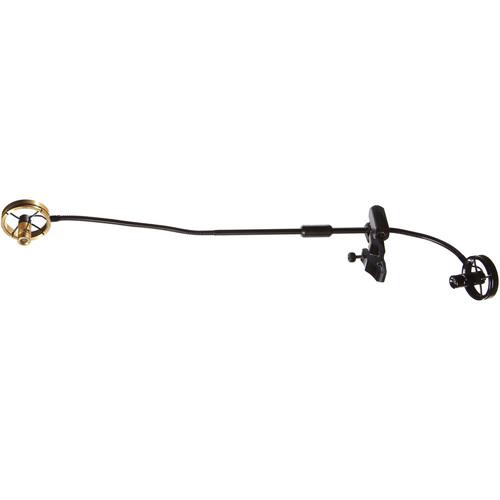

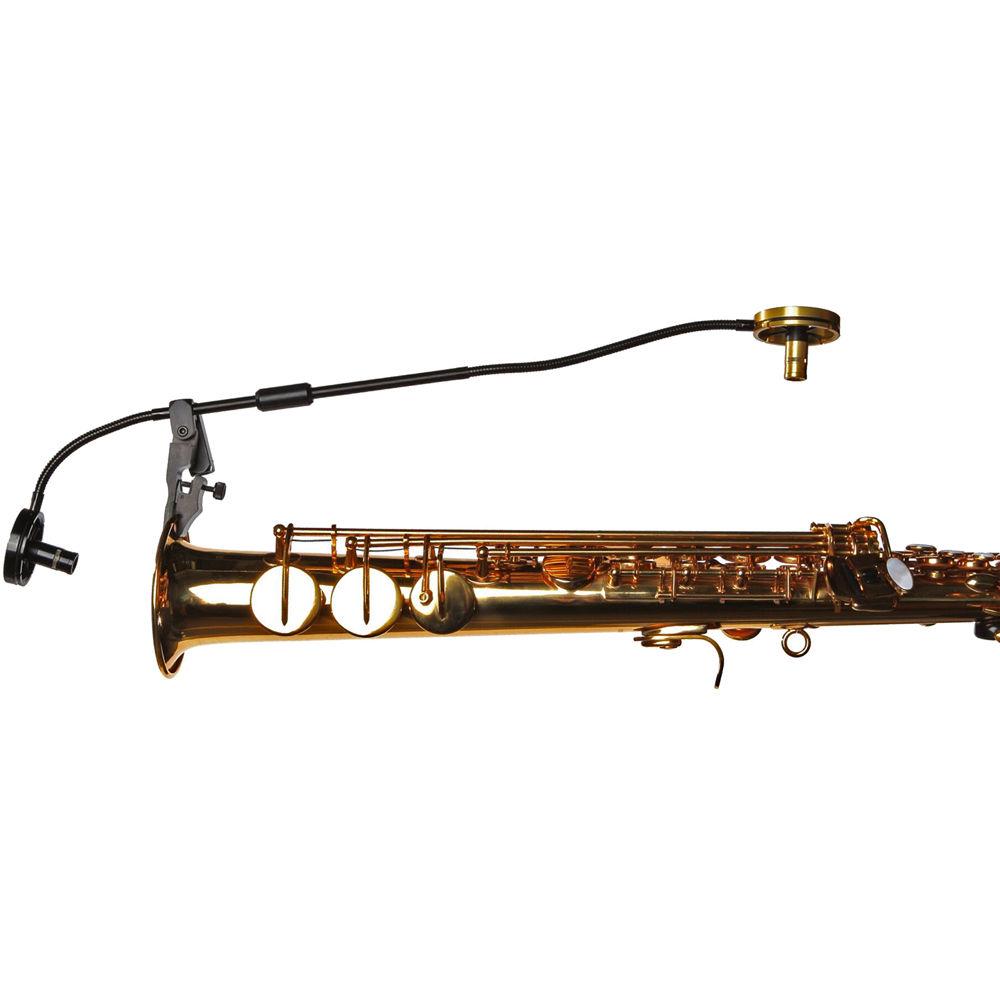

Product description The AMT TA2 Studio is a dual element cardioid microphone designed for capturing soprano saxophone. The dual microphone features a clamp and gooseneck system that accurately captures the audio from the bell and tonal quality of the keys.This version of the TA2 enables direct connection to Sennheiser Evolution series wireless bodypack transmitters, which feature a 1/8" (3.5mm) mini connectors. This establishes completely wireless operation and eliminates the need for additional power supplies or interface devices. - Sennheiser Evolution Wireless Bodypack Compatibility

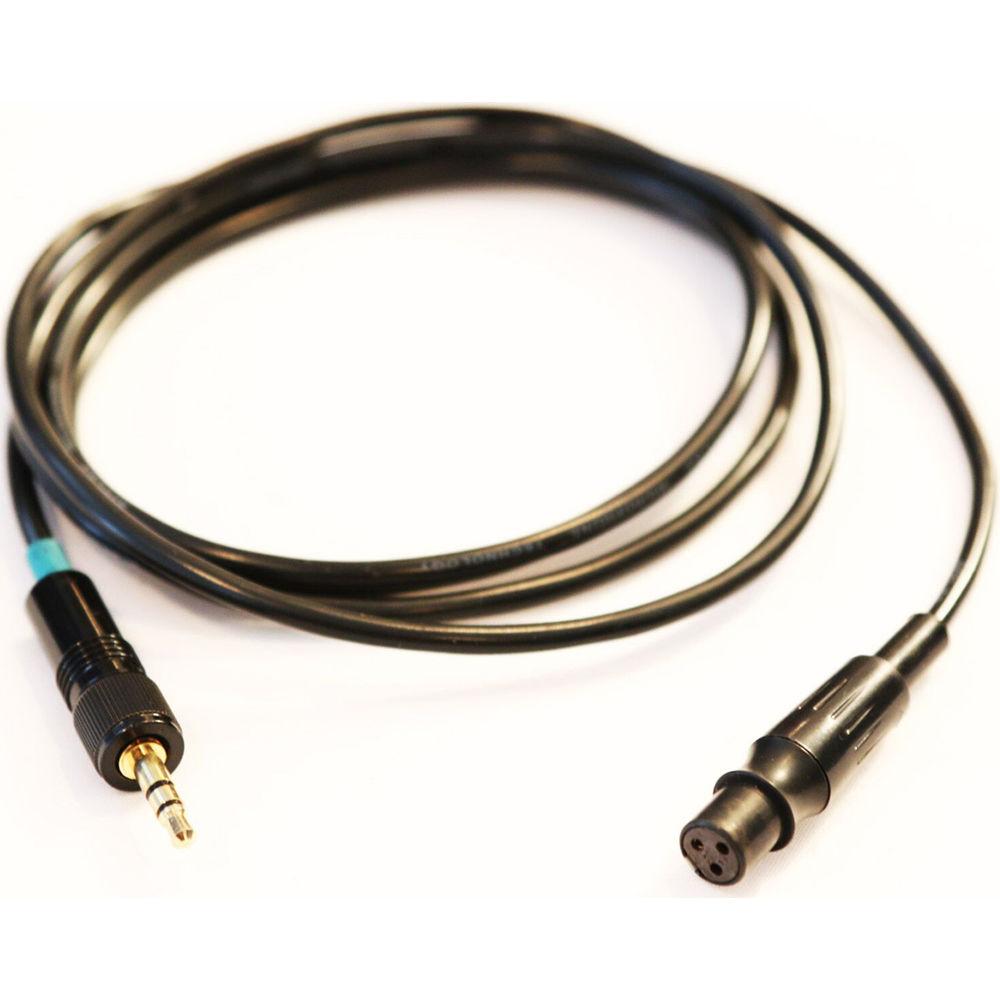

- This version of the TA2 is wired to connect directly to the 1/8" (3.5mm) mini inputs on Sennheiser wireless bodypack transmitters. This allows the TA2 to be used with Sennheiser Evolution wireless microphone systems on stage and in studios.
- High SPL Handling
- The system provides high SPL handling, minimizing noise while capturing transient peaks.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and off-axis feedback.

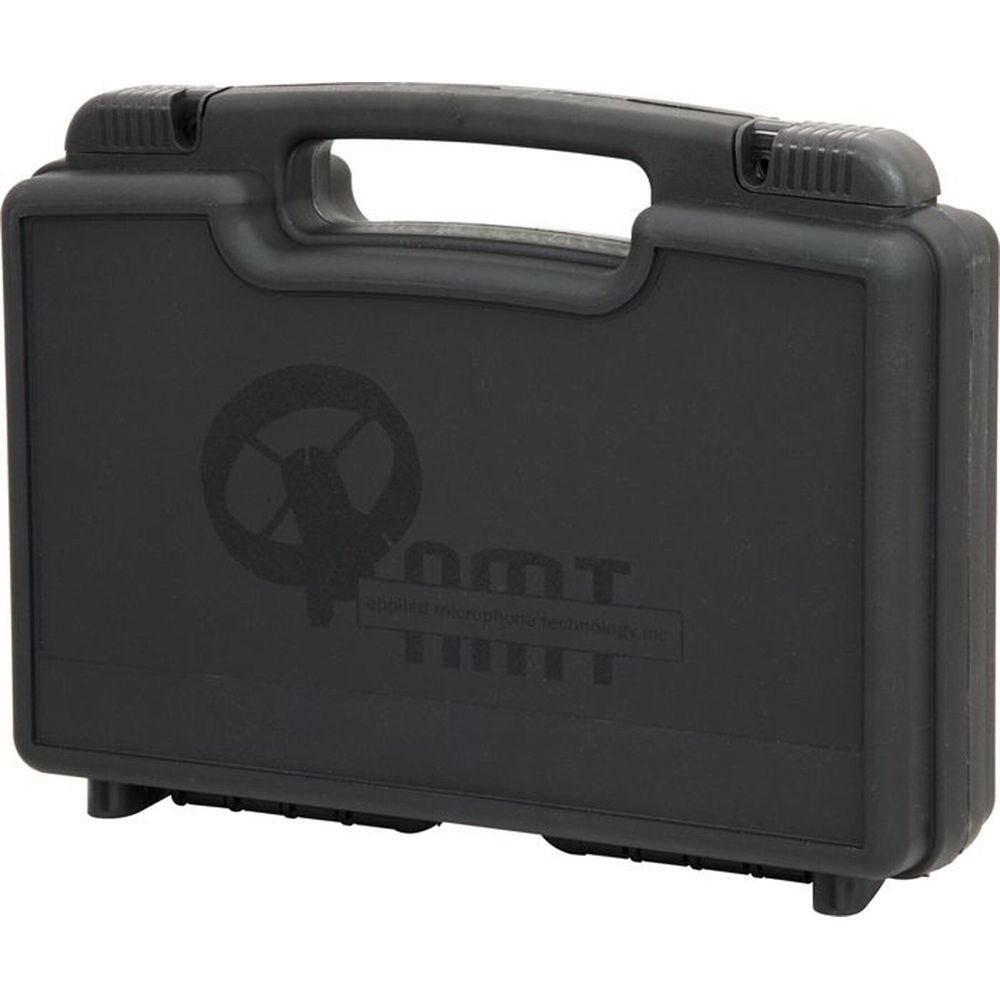

In the Box AMT TA2 - Double Element Soprano Saxophone Microphone Wired for Sennheiser 1/8" (3.5mm) Mini Wireless Bodypack Transmitters AMT TA2 Microphone Hard-shell Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT TA2 - Double Element Soprano Saxophone Microphone Wired for Sennheiser 1 8" Mini Wireless Bodypack Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT TA2 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 18kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 12 to 52VDC
or 9 volt battery | | Output Impedance | 150 ohms | | Output Connectors | 1/8" (3.5mm) Mini for Sennheiser Evolution Bodypack Transmitters | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.5" Flex Arm
6' Cable | | Weight | Mic: 36g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 15.3 x 10.8 x 3.8" |
