User Manual for AMT Ta6 Double-Collapsible Multi-purpose Microphone System w Inline Preamp Click to enlarge the picture
Contents of the user manual for the AMT Ta6 Double-Collapsible Multi-purpose Microphone System
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
 |
User manual for the AMT Ta6 Double-Collapsible Multi-purpose Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

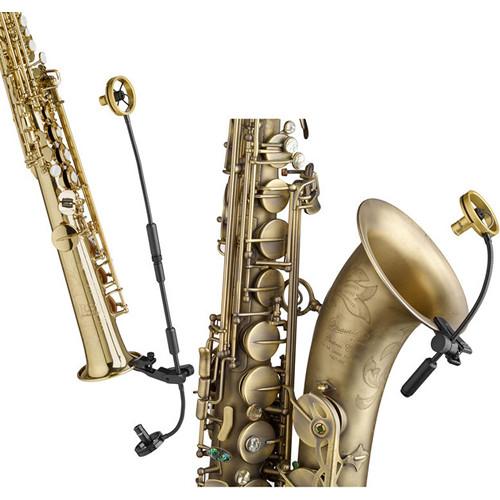

Product description The Ta6 Microphone System with Preamp from AMT includes Ta6 Double-Collapsible Multi-purpose Microphone System and Inline Preamp System. The Ta6 Double-Collapsible Microphone System is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables. Additionally, the system comes with an AMT Inline Preamp that powers the microphone via the phantom power. The inline preamp includes a -10 dB cut as well as a low-frequency roll-off filter. The cut is used depending on the gain structure of your particular mixing board. The cut filter can be used if the microphone is being used in conjunction with sub-bass or if you need to remove low frequency. The inline preamp can be clipped to a music stand or worn on the belt. The output is an XLR to the mixing board and the input is a Ta3 locking mini connector from the microphone. - Ta6 Double Collapsible Multi-purpose Microphone System The Ta6 Double Collapsible Microphone System from AMT is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables.
- Compatibility
- Soprano, tenor, alto, and bari saxophones
-
- 2-in-1 microphone system
- Flexible single microphone clamp allows placement on any flanged bell instrument
- Includes disconnect and double mic/iso-ring suspension system
- Predetermined mix between two mics
- Suitable for AMT Wi5C, Wi5IIB, Wi5IIC, and Q7 wireless systems

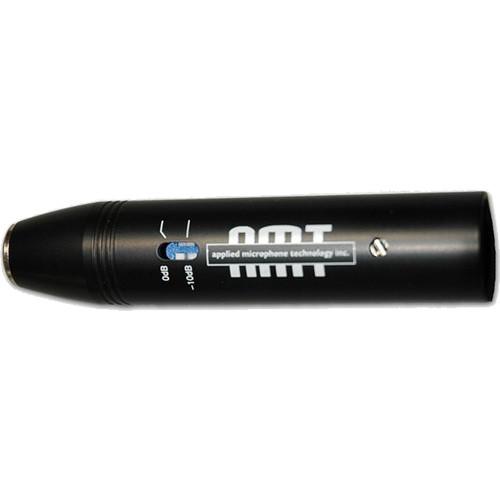

- Inline Preamp/ Power Supply System The AMT Inline Preamp/ Power Supply System comes stock with some AMT Models and microphones that use a disconnecting cable. A perfect choice to use as a hardwired backup preamp with AMT Models. Phantom power is required for operation.
- Works with all D.C.T. Microphones
- Operates with all disconnecting cable microphones when a single channel preamp is necessary
- Reliable Hardwired Preamp
- AMT durability and reliability for all preamp applications
In the Box Bundle Items Ta6 Double Collapsible Multi-purpose Microphone System exbbzfvwxywvvcr Inline Preamp/ Power Supply System Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Ta6 Double-Collapsible Multi-purpose Microphone System w Inline Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ta6 Double Collapsible Multi-purpose Microphone System
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Impedance | 150 Ohms Output impedance. | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 6' / 1.8 m | | Battery Type | 1 x 9 V | | Operating Voltage | 11 to 52 V | | Length | 3.5" / 8.89 cm Flex arm's dimension. | | Weight | 1.269 oz / 36 g | | | | Box Dimensions (LxWxH) | 15.3 x 10.9 x 3.8" | - Inline Preamp/ Power Supply System
| Material | Metal construction | | | | Box Dimensions (LxWxH) | 3.75 x 3.25 x 1.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
