User Manual for AMT Ta6 Double-Collapsible Multi-purpose Wireless Mic System Click to enlarge the picture
Contents of the user manual for the AMT Ta6 Double-Collapsible Multi-purpose Wireless Mic
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
 |
User manual for the AMT Ta6 Double-Collapsible Multi-purpose Wireless Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

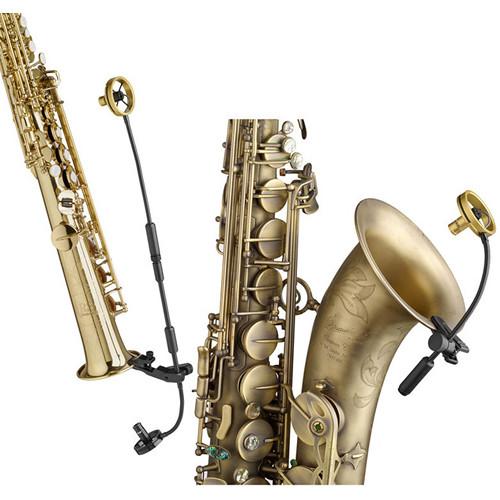

Product description The Ta6 Multi-purpose Wireless Mic System from AMT includes a Ta6 Double-Collapsible Multi-purpose Microphone System and Wi5IIC Dual-UHF Receiver and Belt Pack-Free Plug-On Wireless Transmitter Set. The Ta6 Double-Collapsible Microphone System is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables. The Wi5IIC Plug-On Wireless Transmitter Set comes with the ZRIII multi-channel dual-UHF Receiver and the Wi5IIC plug-on transmitter. The included ZRIII dual receiver allows for up to two microphone/transmitter combos to be used with it at a time. It includes two XLR balanced outputs (channels A & B) on the back panel for discrete routing of each channel into your mixer. In addition, channel A also has an unbalanced 1/4" output. The receiver also employs an automatic frequency-scan feature for quickly finding the band with the strongest available signal. The Wi5IIC plug-on transmitter can power and attach to any AMT microphone for wireless miking of guitars, saxophones, trumpets, and more. The transmitter includes a lithium-ion rechargeable battery with a charge life of up to 8 hours of continuous use. It also features a lit LCD display for visibility on stage, a mute button, and an on/off button for saving battery life during breaks. - Ta6 Double Collapsible Multi-purpose Microphone System The Ta6 Double Collapsible Microphone System from AMT is a multi-purpose microphone system for soprano, tenor, alto, and bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the Ta6 can also work with straight alto and straight tenor saxophones, and can be used with Shure, Sennheiser, and Sabine wireless systems with optional cables.
- Compatibility
- Soprano, tenor, alto, and bari saxophones
-
- 2-in-1 microphone system
- Flexible single microphone clamp allows placement on any flanged bell instrument
- Includes disconnect and double mic/iso-ring suspension system
- Predetermined mix between two mics
- Suitable for AMT Wi5C, Wi5IIB, Wi5IIC, and Q7 wireless systems

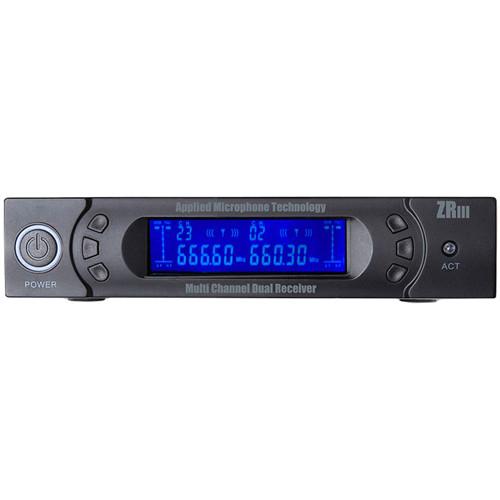

- Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set The Wi5IIC Plug-On Wireless Transmitter Set from AMT comes with the ZRIII multi-channel dual UHF Receiver and the Wi5IIC plug-on transmitter. The system can be completed by adding any AMT microphone for wireless, belt-pack free instrument miking. The included ZRIII dual receiver allows for up to two microphone/transmitter combos to be used with it at a time. It includes two XLR balanced outputs (channels A & B) on the back panel for discrete routing of each channel into your mixer. In addition, channel A also has an unbalanced 1/4" output. The receiver also employs an automatic frequency scan feature for quickly finding the band with the strongest available signal. The Wi5IIC plug-on transmitter can power and attach to any AMT microphone for wireless miking of guitars, saxophones, trumpets and more. The transmitter includes a lithium-ion rechargeable battery with a charge life of up to 8 hours of continuous use. It also features a lit LCD display for visibility on stage, an on/off button for saving battery life during breaks as well as a mute button.
- Designed for low interference using the UHF 600-930 MHz band
- 99 channel presets and over 560 possible frequencies
- Receiver features backlit LCD display that shows RF level, AF level, channel and frequency
- Transmitter includes a lithium-ion rechargeable battery which can be recharged over 1000 times and gives 7-8 hours of continuous use
In the Box Bundle Items Ta6 Double Collapsible Multi-purpose Microphone System uqbbbdzzvdbtcdwfyqurdcttcqsdte Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Ta6 Double-Collapsible Multi-purpose Wireless Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ta6 Double Collapsible Multi-purpose Microphone System
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Impedance | 150 Ohms Output impedance. | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 6' / 1.8 m | | Battery Type | 1 x 9 V | | Operating Voltage | 11 to 52 V | | Length | 3.5" / 8.89 cm Flex arm's dimension. | | Weight | 1.269 oz / 36 g | | | | Box Dimensions (LxWxH) | 15.3 x 10.9 x 3.8" | - Wi5IIC Dual UHF Receiver and Belt-Pack Free Plug-On Wireless Transmitter Set
| Carrier Frequency | UHF 600-930 MHz | | Frequency Stability | <±30 ppm | | Dynamic Range | >95 dB | | Total Harmonic Distortion | <0.5% | | Frequency Response | 40 to 15,000 Hz ± 3 dB | | Audio Output Level | Balance 400 mV
Unbalance 400mV | | Power Supply | 15-17 VDC | | Power Consumption | 2 W | | S/N Ratio | >95 dB | | Image Rejection | >80 dB
Border Upon Channel Rejection: >80 dB | | Receiving Sensitivity | 5 dBuV | | De-Emphasis | 50 uS |
