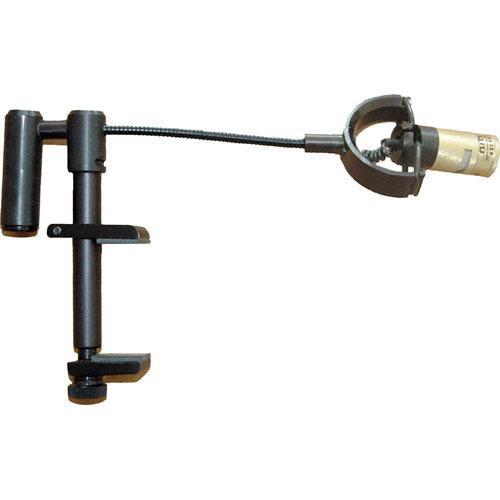

User Manual for AMT VS Violin, Viola, and Mandolin Microphone Click to enlarge the picture
Contents of the user manual for the AMT VS Violin, Viola, and Mandolin
- Product category: Small Diaphragm Condenser AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Small Diaphragm Condenser
|
User manual for the AMT VS Violin, Viola, and Mandolin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description The VS Violin, Viola, and Mandolin Microphone from AMT is a miniature cardioid, condenser microphone designed for use with violin, viola and mandolin. The entire microphone and mounting mechanism is designed to clamp securely to the body of the instrument without damage to its finish.The element itself is attached to a flexible gooseneck, allowing easy positioning at the sound board. The cardioid polar pattern effectively minimizes off-axis audio that causes noise and feedback. An external beltpack provides the output stage and power supply for the microphone. The beltpack also provides variable impedance for line level output and standard a XLR output connector. The VS is powered with external 11-52VDC phantom power or 9-volt battery. - Miniature Element and Mounting System
- The miniature design of the microphone and mount provide an unobtrusive, secure hold without damaging the intrument's finish.
- External Beltpack / Power Supply
- An external beltpack provides 11-52V phantom power via external sources or houses a 9-Volt battery. The pack features a standard XLR output connection and can be worn during performances.
- Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise and residual audio at the off-axis sections of the capsule.
- Shock Mounting
- The element is mounted in an integrated shock mount that suppresses handling and surface noise.
- Variable Output Impedance
- The beltpack / output stage features a level control that adjusts of line level output if necessary.
In the Box AMT VS Violin, Viola, and Mandolin Microphone BP45 Beltpack 6-Foot Cable To Beltpack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT VS Violin, Viola, and Mandolin Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT VS Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 25 Hz to 20 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 150 Ohms | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x 9 V | | Operating Voltage | 11 to 52 V | | Length | 3.0" / 76.20 mm | | Weight | 0.71 oz / 20 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 15.8 x 11.6 x 4.3" |
