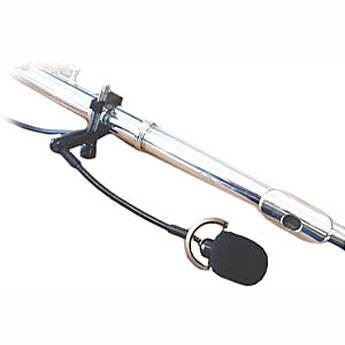

User Manual for AMT Z1 Flute Mounted Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AMT Z1 Flute Mounted Condenser Microphone
- Product category: Instrument Microphones AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Instrument Microphones
|
User manual for the AMT Z1 Flute Mounted Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|
Product description Applied Microphone Technologies (AMT) continues to address the needs of the professional musician. The Z1 is a high quality, professional, condenser flute microphone designed to meet the demands of live sound reinforcement and recording applications.The Z1 features an integrated mount that provides a secure grip and low profile. The omni-directional condenser element provides an even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule. The microphone features an attached cable that connects to the included beltpack. The beltpack is worn by the musician and provides a standard 3-pin XLR output connection. The Z1 is powered via 12-52 VDC phantom power. - Integrated Mount and Flexible Gooseneck
- The Z1 features a secure vice grip that doesn't damage the instrument's finish. The capsule is mounted on a flexible gooseneck that provides easy placement over the sound hole.
- Flat Frequency Response
- The flat frequency response results in accurate, transparent audio reproduction without added coloration.
- Omni-directional Pattern
- The omni-directional polar pattern provides an even frequency response at the direct and indirect sections of the capsule.
- External Beltpack
- The external beltpack is worn by the musician and provides the 3-pin XLR output connection. The pack also supplies 12-52VDC phantom power from an external source.
In the Box AMT Z1 Flute Mounted Condenser Microphone Beltpack 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Z1 Flute Mounted Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT Z1 Specs | Transducer | Condenser | | Polar Pattern | Omni-directional | | Frequency Response | 50Hz to 20KHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | Maximum Input Sound Level | 139dB | | Power Requirements | 12-52VDC | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR output from beltpack | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2" (50.8mm) (Length) | | Weight | 0.77 oz (22g) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 15.3 x 10.8 x 3.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
