User Manual for AMT Z1L-5C Wireless Alto Bass Flute Microphone System Click to enlarge the picture
Contents of the user manual for the AMT Z1L-5C Wireless Alto Bass Flute
- Product category: Wireless Systems AMT
- Brand: AMT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMT Wireless Systems
 |
User manual for the AMT Z1L-5C Wireless Alto Bass Flute contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMT product will considerably shorten its lifespan!
|

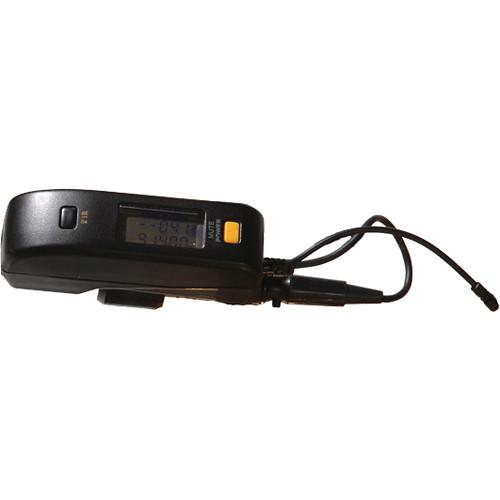

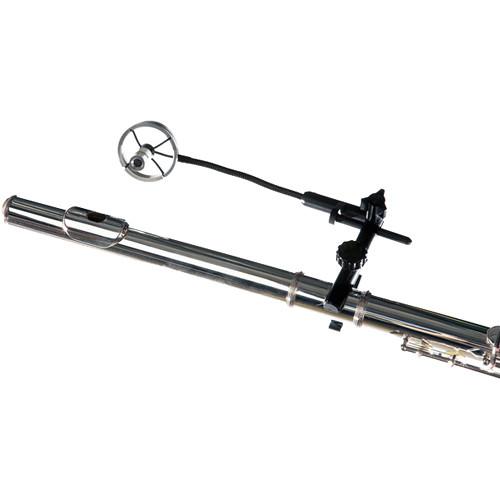

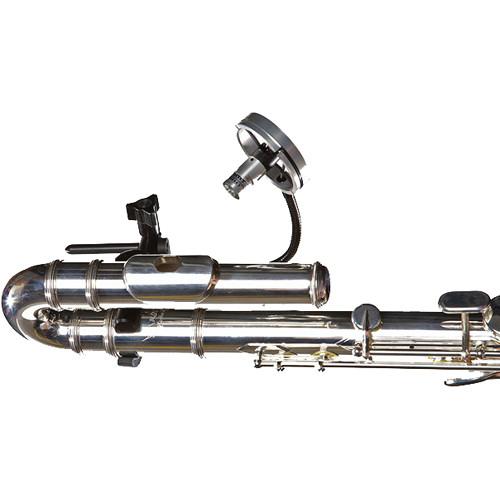

Product description The Z1L-5C Wireless Alto/Bass Flute Microphone System is a beltpack-free wireless microphone system that consists of a Z1L alto and bass flute microphone, a Wi5IIC wireless transmitter, a microphone cable, a ZRIII dual receiver, and a hardshell carrying case. The Wi5IIC system attaches to the Z1L microphone and then clips onto the flute via a specially designed clamp. The flute microphone is suspended within a 4-point isolation ring to minimize handling noise. It is powered by either 1 AA battery or by phantom power.

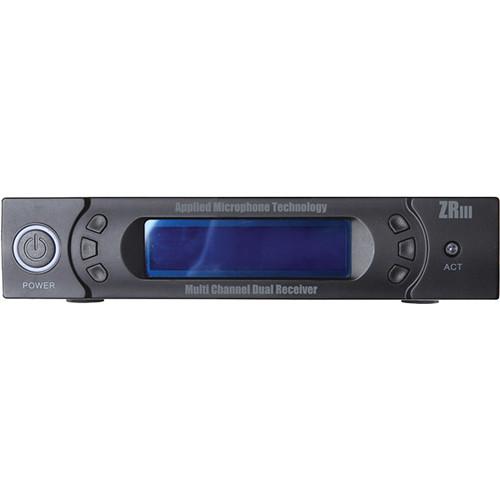

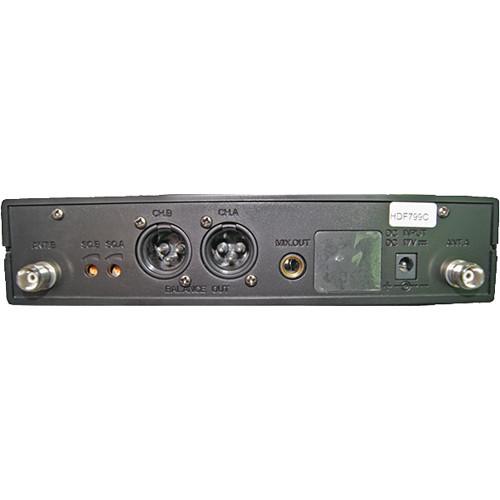

The ZRIII dual-channel receiver allows up to two separate microphone and transmitter signals to be sent to one receiver. The receiver features two separate balanced XLR outputs so that each channel can be controlled independently. Using infrared control from the receiver you can select 99 non-interfered transmission channels in the UHF spectrum. The wide selection of transmission channels affords you greater flexibility in setting up your flute for live sound reinforcement. The wireless microphone system is hand made in the USA. - Rechargeable Battery
- The transmitter features a rechargeable lithium-ion battery that provides 7-8 hours of continuous use and may be recharged over 1000 times
- LCD Displays
- The transmitter and the receiver both feature illuminated LCD displays for easy controls in situations with minimal light
- Parallel Out
- The receiver features a 1/4" parallel output for audio channel A
- Clip On
- The wireless transmitter and receiver system will work with any AMT microphone or AMT preamp. This allows you to use the system with different instruments and setups
- Detachable Antennas
- The receiver includes detachable antennas in case you choose to add a booster kit or install the unit into an equipment rack
- Mute Button
- For saving battery life, the transmitter includes both a mute button and an on/off switch
- 99 Selectable Radio Channels
- The transmitter and receiver system can utilize 99 distinct non-interfered radio channels, with frequency banks for USA, Canada, Australia, and Europe. There are also another 560 adjustable free frequencies on which to operate
In the Box AMT Z1L-5C Wireless Alto/Bass Flute Microphone System Z1L Alto and Bass Microphone Z1L Clamp Microphone Cable 4-Point Shock Mount Wi5IIC Transmitter ZRIII Receiver Hardshell Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMT Z1L-5C Wireless Alto Bass Flute Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMT Z1L-5C Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50 to 18,000 Hz | | Dynamic Range | Not specified by the manufacturer | | Signal-to-Noise Ratio | Not specified by the manufacturer | | Maximum Input Level | 120 dB | | Power Requirements | 12 to 52 VDC | | Output Impedance | 150 Ω | | Output Connector | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Flex arm: 3.5" (8.9 cm)
Cable: 6.0' (1.9 m) | | | | Carrier Frequency | UHF 600-930 MHz | | Frequency Stability | <±30 ppm | | Dynamic Range | >95 dB | | Total Harmonic Distortion | <0.5% | | Frequency Response | 40 to 15,000 Hz ± 3 dB | | Audio Output Level | Balance 400 mV
Unbalance 400mV | | Power Supply | 15-17 VDC | | Power Consumption | 2 W | | Signal to Noise Ratio | >95 dB | | Image Rejection | >80 dB
Border Upon Channel Rejection: >80 dB | | Receiving Sensitivity | 5 dBuV | | De-Emphasis | 50 uS |
