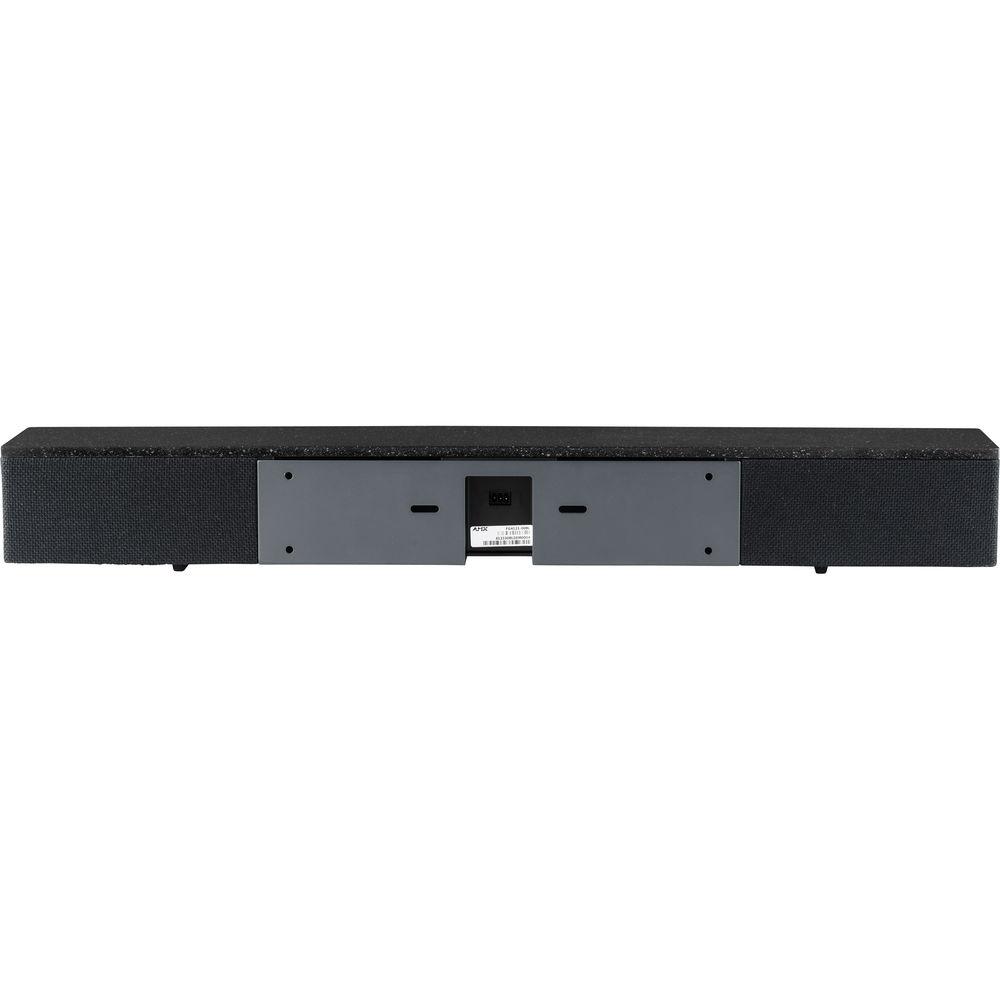

User Manual for AMX ACV-2100 Acendo Vibe Conferencing Soundbar Click to enlarge the picture
Contents of the user manual for the AMX ACV-2100 Acendo Vibe Conferencing Soundbar
- Product category: Video Conferencing Accessories AMX
- Brand: AMX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AMX Video Conferencing Accessories
 |
User manual for the AMX ACV-2100 Acendo Vibe Conferencing Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AMX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AMX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AMX product will considerably shorten its lifespan!
|

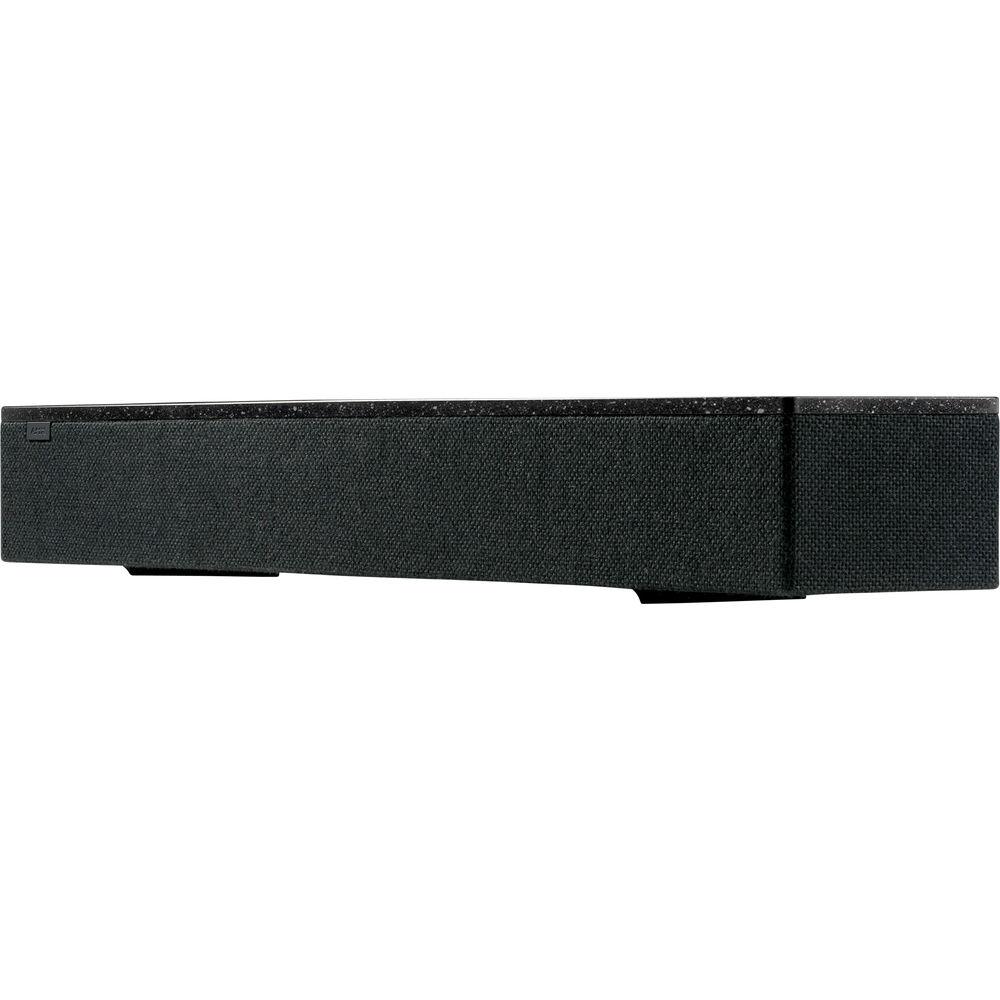

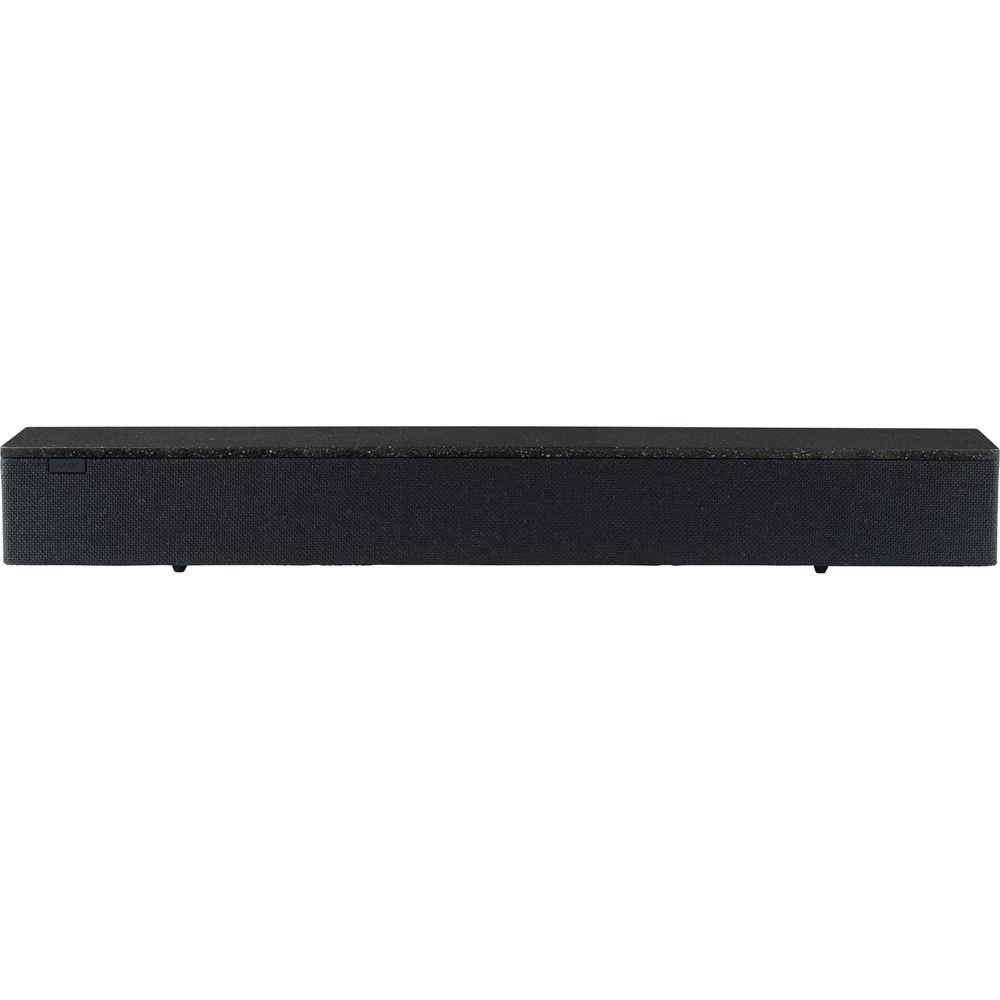

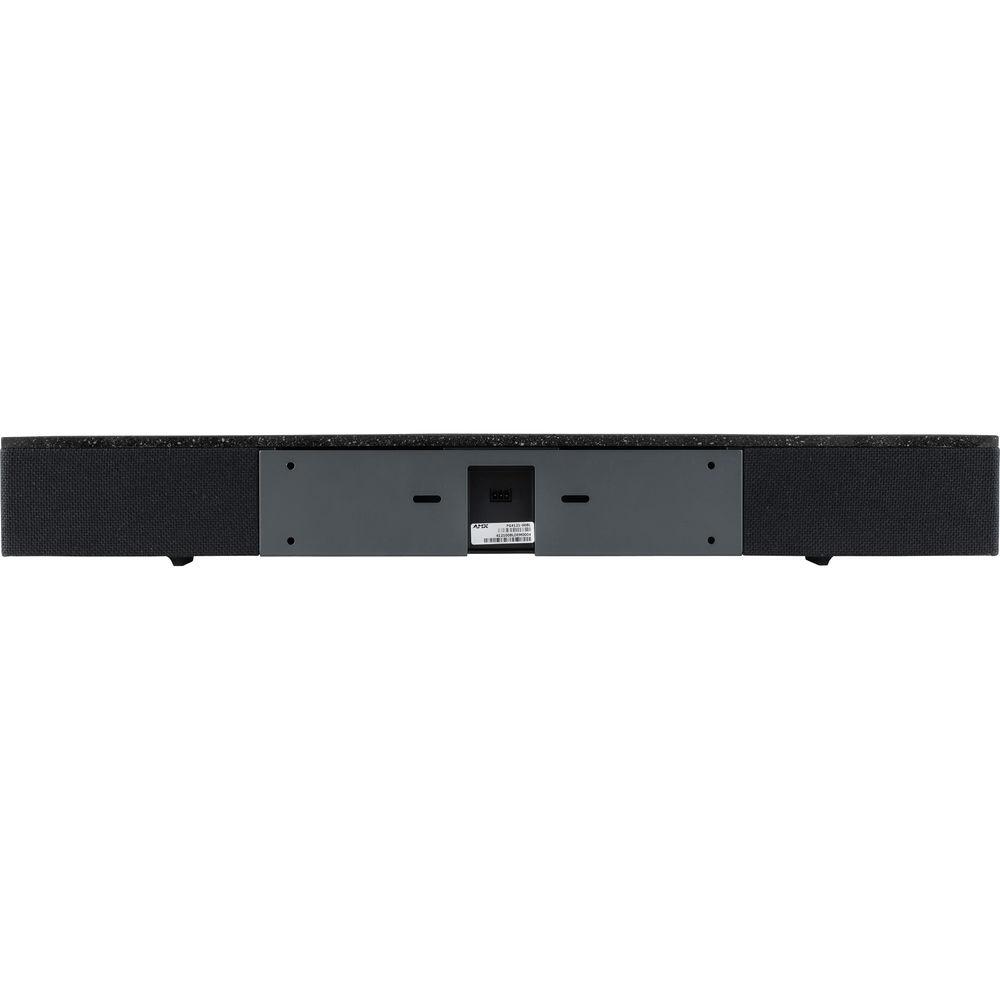

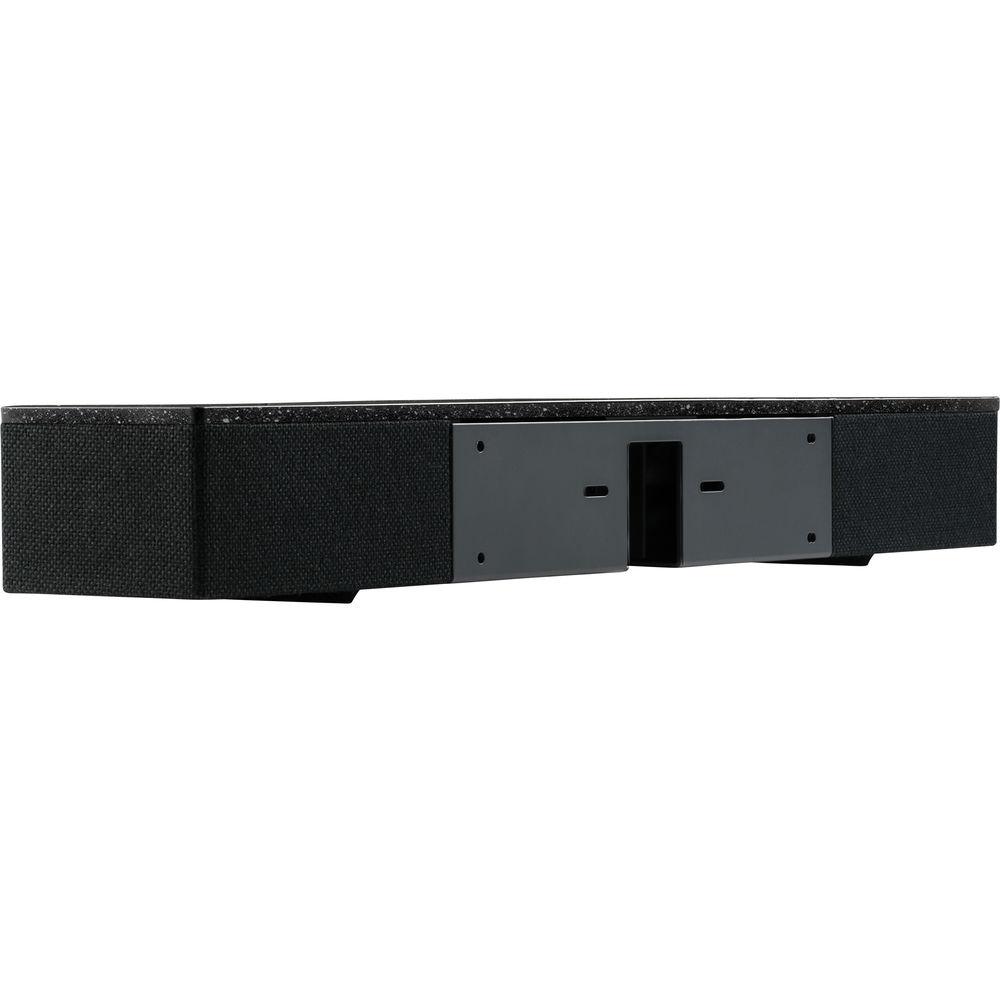

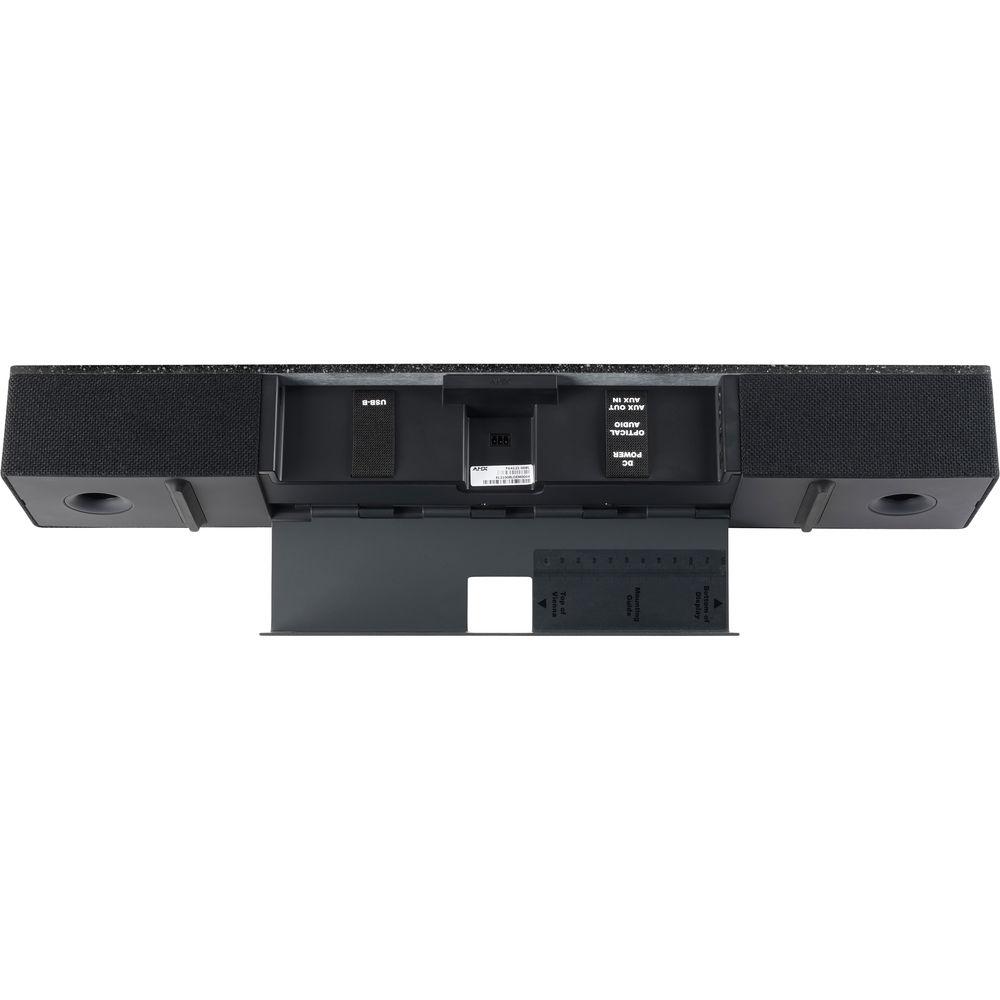

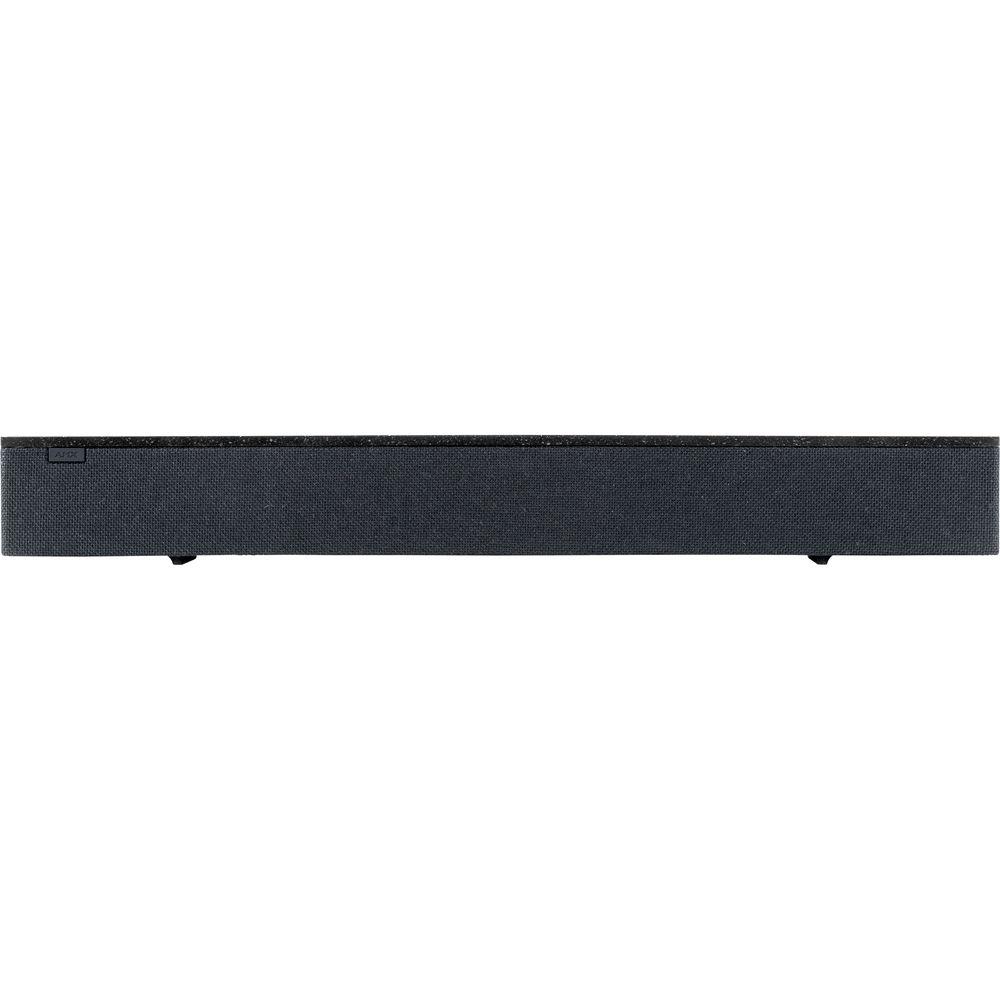

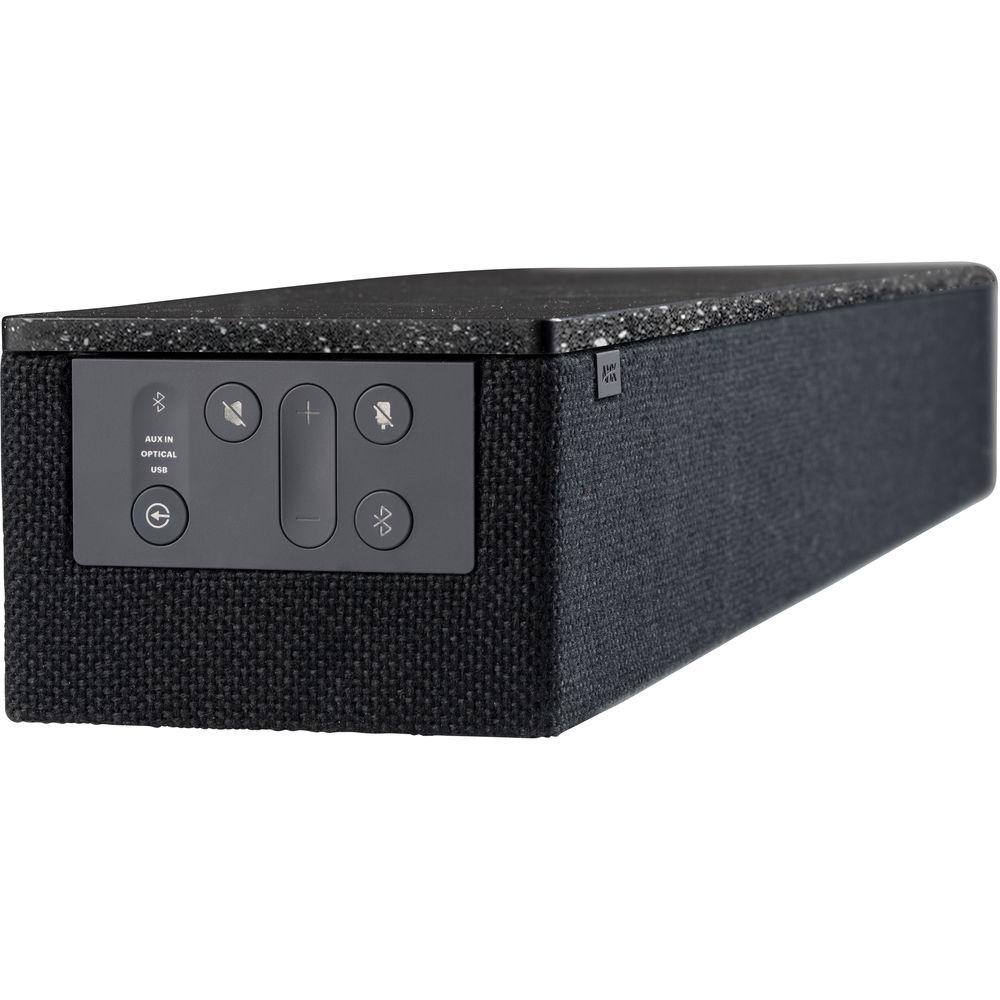

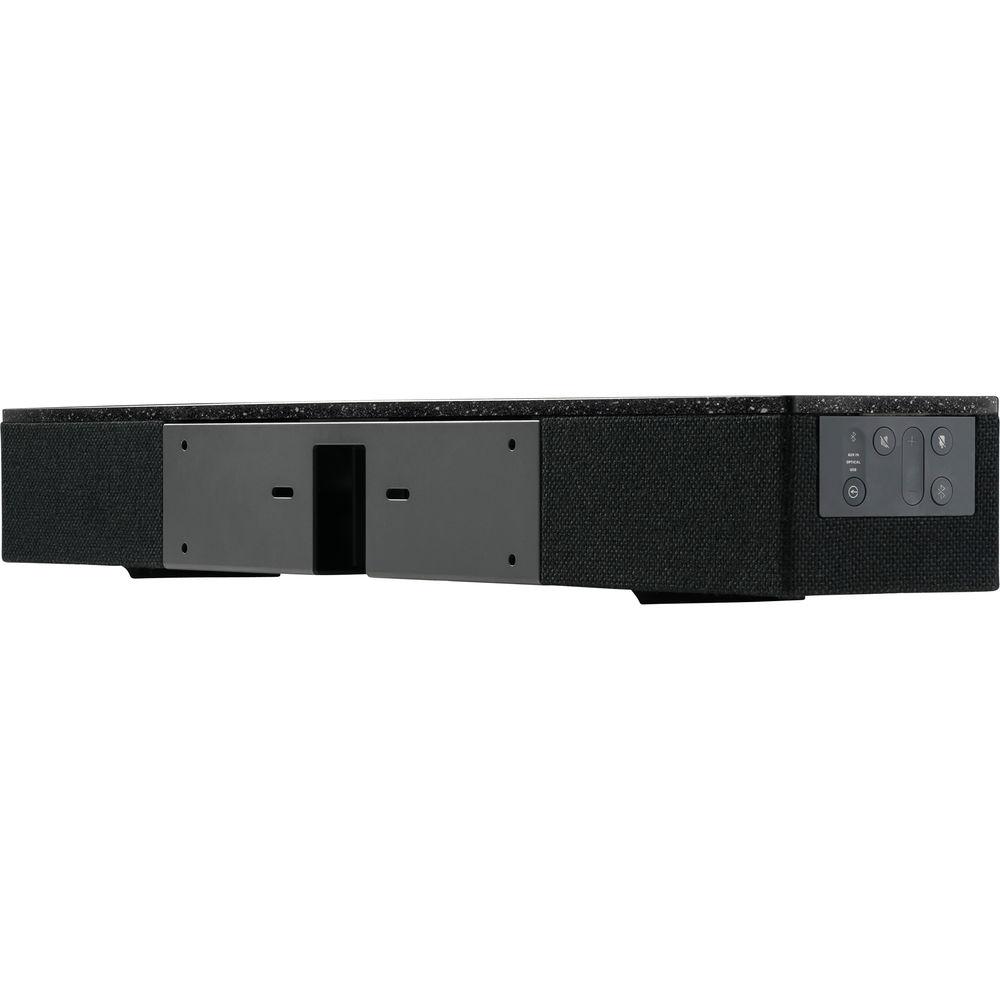

Product description The black AMX ACV-2100 Acendo Vibe is a conferencing soundbar offering seamless two-way audio communication for meetings, conferences, E-Learning, and training sessions. Featuring stereo speakers, a dual far-field mic array, and AEC acoustic echo cancellation from JBL, the Acendo Vibe reliably delivers clear sound with low noise, allowing everyone in the room to hear and be heard. Pair a smartphone, tablet, or laptop to the built-in Bluetooth receiver, or connect non-Bluetooth computers to the USB Type-B port. Hook up external audio devices to the 3.5mm stereo analog I/O and TOSLINK optical stereo digital input. A Euroblock RS-232 socket is provided for compatibility with serial commands. The rear-panel hinged wallmount bracket also functions as a connector bay door, and incorporates built-in cable management for tidy connection and placement of all cabling prior to installation. Once installed, the ACV-2100 Acendo Vibe can be operated via the included Bluetooth remote control, which boasts convenient access to functions such as volume, mute, source select, and end call. - Speakers, microphones, and DSP algorithms from JBL yield consistent audibility
- Built using high-quality materials and available in colors designed to complement interior decor
- USB and Bluetooth connectivity for easy integration with mobile devices, computers, or Acendo Core (available separately)
- Integrated mounting bracket facilitates single-person installation, and allows routing and connection of cables pre-installation
- Removable rubber feet decouple the Acendo Vibe from sympathetic resonance in surface-mount setups
UPC: 718878000564 In the Box AMX ACV-2100 Acendo Vibe Conferencing Soundbar (Black) 15 VDC Power Supply Remote Control 6' USB Cable 4 x 5mm Wallmount Spacers 2 x Lock-Down Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AMX ACV-2100 Acendo Vibe Conferencing Soundbar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAMX ACV-2100BL Specs | Speaker Configuration | Stereo 10 W with channel amplifier | | Microphone Type | Dual far-field array | | Inputs | 1 x 1/8" / 3.5 mm stereo mini jack
1 x TOSLINK optical stereo | | Outputs | 1 x 1/8" / 3.5 mm stereo mini jack | | Multi-Pin I/O Connectors | 1 x 3-pin Euroblock (RS-232) | | USB | 1 x USB 2.0 Type-B | | Bluetooth Version | 4.0 | | Supported Bluetooth Profiles | Hands-free profile
Advanced audio distribution profile | | Bluetooth Frequency | 2400 to 2483.5 MHz | | Bluetooth Transmitter Power | < 10 mW | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 5 to 85%, RH non-condensing | | Power Requirements | Input Voltage: 110 to 240 VAC, 47 to 63 Hz
Connector: IEC C8 | | Power Consumption | 1.3 A maximum | | Dimensions (W x H x D) | 23.2 x 3.0 x 4.1" / 59.0 x 7.6 x 10.5 cm (including spacers)
23.2 x 3.0 x 3.9" / 59.0 x 7.6 x 10.0 cm (excluding spacers) | | Weight | 6.3 lb / 2.9 kg | | Compliance | FCC 47 CFR Part 15, Subpart C / Subpart B (emissions)
CE EN 55024
CE EN 60950-1
IEC 60950-1
EN 300 440 | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 25.0 x 8.5 x 5.0" |
