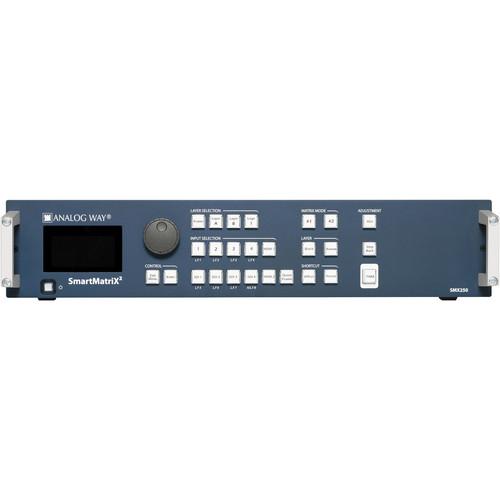

User Manual for Analog Way 10x2 Seamless Matrix Scaler with Native Hi-Res Output Click to enlarge the picture
Contents of the user manual for the Analog Way 10x2 Seamless Matrix Scaler
- Product category: Production Switchers Analog Way
- Brand: Analog Way
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Analog Way Production Switchers
|
User manual for the Analog Way 10x2 Seamless Matrix Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Analog Way product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Analog Way user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Analog Way product will considerably shorten its lifespan!
|
Product description The Analog Way 10x2 Matrix Scaler with Native Hi-Res Output allows you to provide a single output signal format from a variety of input formats. It is a high-resolution asynchronous matrix switcher with 10 Active inputs (16 input jacks) and 2 outputs providing seamless switching between inputs. It is suitable for high-end AV presentations, and supports scaling any input to match the output configuration. In addition to DVI-D, universal analog, and SD/HD-SDI inputs, it supports SDTV, EDTV, HDTV, and computer formats up to 2K. It comes with 2 outputs supporting analog and digital signals.
The unit features 8 memory presets per output, plus storage of up to 8 video stills, 8 logos, and 1 animated logo. Built-in dynamic layer effects combined with Chroma/Luma key and titling add to the versatility of this matrix scaler. Audio from any input can be de-embedded and output separately, or embedded into either of the video outputs. The unit is rack mountable, or can sit on a desk, and can be controlled by using front panel buttons or with downloadable software for Mac, Windows, or Linux. - There are 10 input signal paths, any of which can be routed to either output. Any compatible signal input can be seamlessly scaled to any supported output format.
- The 10 input signal paths are supported by 16 different input plugs/jacks.
- Supporting Chroma/Luma keying and titling, along with the still store, logo store, and animated logo memory, makes this matrix scaler a powerful tool for delivering a stable signal from a variety of different source formats.
- You can operate the unit via front panel buttons and menu scroll wheel, or by connecting it to an optional computer running the downloadable software. Software is available for Mac, Windows, and Linux. Computer control communication is provided by a built-in Ethernet connection on the unit.
- The built-in power supply accepts 100 to 240 VAC at 50/60 Hz. It draws 2.5A, and is protected by an internal 4A 250 VAC fuse.
In the Box Analog Way 10x2 Seamless Matrix Scaler with Native Hi-Res Output Power Supply Cord Ethernet Crossover Cable Set of 6 Audio 5-Pin Screw Terminals Set of Front Rack Ears Limited 3-Year Warranty User Manual PDF 9.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way 10x2 Seamless Matrix Scaler with Native Hi-Res Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way SmartMatriX2 Specs | Signal System | NTSC: 15.735 kHz/60 Hz
PAL/SECAM: 15.625 kHz/50 Hz | | Video Inputs | Analog
Composite, YUV, S-Video: 4 x 15-pin din
Digital
DVI: 4 x DVI-D (HDMI compliant)
HDMI: 4 x HDMI type A
SDI: 4 x BNC (3G-SDI) | | Video Outputs | Analog
Composite: 1 x BNC
Component: 3 x BNC
2 x 15-pin din
Digital
1 x BNC (3G-SDI)
2 x DVI-D | | Audio | Inputs
Analog: 4 x 5-pin MCO connectors
S/PDIF: 2 x RCA jacks
Outputs
Analog: 1 x 5-pin MCO connectors
S/PDIF: 2 x RCA jacks | | Video Formats | SMPTE: ST 259:2008, ST 260:1999, ST 274:2008, ST 292-1:2012, ST 296:2012, ST 424:2012, ST 428-19:2010
VESA: GTF1.1, CVT 1.1, DMT1.0 rev.12 | | Audio | DVI Inputs
DVI (as HDMI)/HDMI/Audio de-embedding: 1 x stereo pair
Analog Inputs
4 x Audio stereo inputs
Balanced/Unbalanced
Vi = +15 dBu
Zi = 20 kOhms (Unbalanced)/40 kOhms (Balanced)
Adjustable Level per input
S/PDIF Inputs
2 inputs, AES3id compatible
Zi = 75 ohms
Input Level Min: 200 mVpp
Input Level Max: 2.8 Vpp
Protocol: AES3 or S/PDIF sub-code format
DVI Inputs
DVI (as HDMI) Audio de-embedding: 1 x stereo pair per output
Video Out SDI audio embedding: Up to 2 stereo pairs (Matrix mode)
Analog Outputs:
2 independent outputs
Balanced/Unbalanced
Vo = +9 dBu/300 Ohms (Unbalanced)
Vo = +15 dBu/600 Ohms (Balanced)
S/PDIF Outputs:
2 outputs, AES3id compatible
Zi = 75 ohms
Output Level: 0.5 Vpp(S/PDIF mode) or 1 Vpp (AES3
mode)
Input Level Max: 2.8 Vpp
Protocol: AES3 or S/PDIF sub-code format | | Dimensions (W × H × D) | 17.3 x 3.46 x 15.75" / 43.9 x 8.79 x 40.0 cm | | Weight | 13.9 lb / 6.3 kg | | | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 8.0" |
