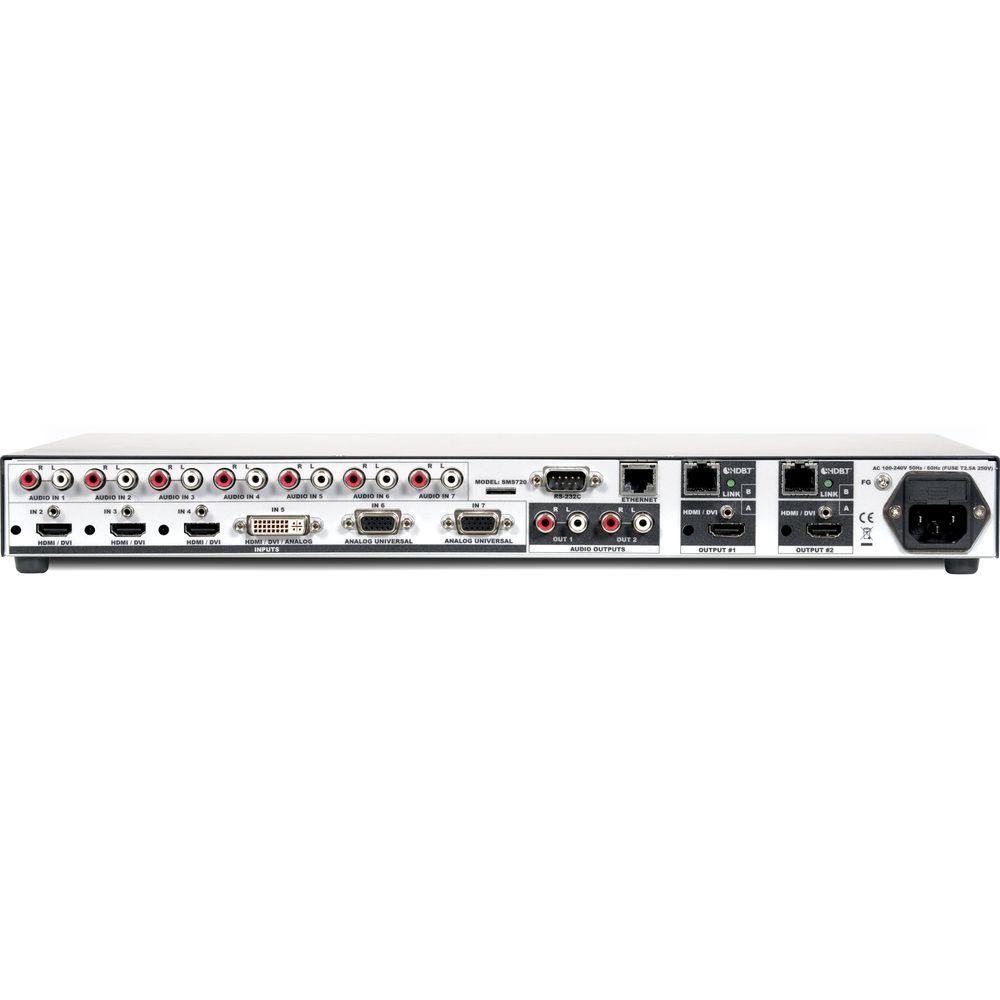

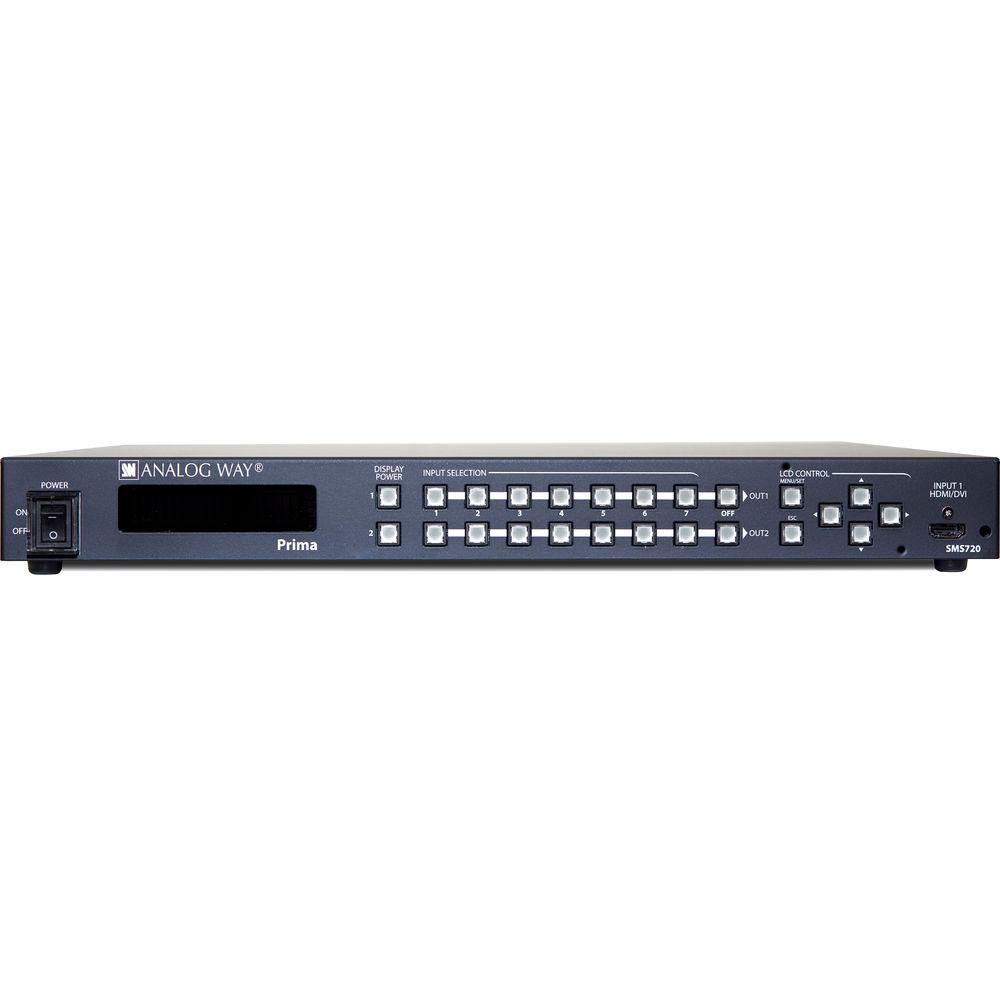

Product description The Prima Series 7x2 Seamless Matrix Scaler from Analog Way features 7 seamless inputs and 2 outputs. It features a low processing latency and offers independent management per output. In addition, the unit features native matrix switcher. - Rugged and heavy-duty design
- Independent management per output
- HDCP input enabled/disabled
- Full audio digital handling on HDMI plus A/D & D/A conversion
- 2 outputs (Output #1 and Output #2) with 2 plugs (HDMI and HDBaseT)
- Auto input detection and switching
- Simultaneous HDMI and HDbaseT outputs
- 4 HDMI inputs (Deep color and CEC connection)
- Transitions: Fade (dissolve), cut, and wipe through black or color
- Volume adjustment (Volume of input and output ports can be set separately)
- Audio inputs can be embedded or de-embedded on all plugs
- Audio signals of IN1 to IN5 are switch selectable between digital audio (HDMI) and analog audio (RCA)
- Audio output is simultaneous output both digital and analog output
- Digital audio formats supported: Bitstream audio (PCM, Dolby Digital, ACC, Dolby Digital+, DTS, DTS-HD, Dolby TrueHD)
- Digital audio sampling frequency 32 to 192 kHz
- Stereo L/R unbalanced signal on all inputs and outputs
- Lip Sync: Up to 16 frames
- EDID audio formats supported
- Internal generator with 17 patterns
- Display power keys to turn on sink devices via RS-232C, LAN, CEC and standard protocol PJLink
- Preset memory (8 settings)
- External control commands (32 commands)
- Front panel security lockout
- EDID management on 7 inputs
- Up to 4 bitmap images can be loaded
In the Box Analog Way Prima Series 7x2 Seamless Matrix Scaler Power Supply Cord RS-232 Cable 5 x Cord Clamp Rackmount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way Prima Series 7x2 Seamless Matrix Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way SMS720 Specs | | | Video | HDMI / DVI
Number / Signal
5 inputs / HDMI Deep Color / DVI 1.0 / HDCP1.4
TMDS single link
TMDS Clock: 25 to 225 MHz
Dot Clock: 25 to 165 MHz
Connector
4 female HDMI Type-A
1 female Universal DVI-I
Note: DVI-I connector is selectable between digital (HDMI/DVI) and analog input
Others
Built-in Digital Cable EQ, EDID emulation
Universal AnalogNumber / Signal
2 inputs / Composite video, S-Video, Analog RGB / Analog YPbPr (auto-recognition) Composite Video (VBS signal): 1.0 Vpp / 75 Ohms
S-Video (Y/C Signal): 1.0 Vpp (Y) / 0.286 Vpp (C) / 75 Ohms
Analog RGB: 0.7 Vpp (1.0 Vpp Sync on Green) / 75 Ohms HS/VS TTL level, CS TTL level, Sync on Green
Connector
2 female 15-pin HD
Others
EDID emulation
Format
NTSC/PAL
480i / 480p / 576i / 576p / 720p / 1080i / 1080p
VGA to QWXGA
Note: WUXGA / QWXGA are supported only with Reduced Blanking | | Audio | Digital
Number / Signal
5 Inputs / Multi-Channel Linear PCM up to 8 channels
Sampling Frequency: 32 to 192 kHz
Sampling Size: 16- to 24-bit
Reference Level: -20 dBFS
Max. Input Level: 0 dBFS
Note: IN1 to IN3 are switch-selectable between digital and analog audio
Connector
4 female HDMI Type-A
1 female Universal DVI-I
Note: DVI-I connector is selectable between digital (HDMI/ DVI) and analog input
Analog
Number / Signal
7 inputs / Stereo LR unbalanced signal
Inputs Impedance: 24 Ohms
Reference Level: -10 dBFS
Max. Input Level: +10 dBFS
Connector
7 RCA pin jack | | | | Video | HDMI / DVI
Number / Signal
2 outputs / HDMI Deep Color / DVI 1.0 / HDCP1.4
TMDS single link
TMDS Clock: 25 to 225 MHz
Dot Clock: 25 to 165 MHz
Connector
2 female HDMI Type-A
Others
Built-in Digital Cable EQ
HDBaseT
Number / Signal
2 outputs / HDMI Deep Color / DVI 1.0 / HDCP1.4
TMDS single link
TMDS Clock: 25 to 225 MHz
Dot Clock: 25 to 165 MHz
Connector
2 RJ-45 / Cable: Cat5e / Cat6 (STP / UTP straight cable)
Format
480i / 480p / 576i / 576p / 720p / 1080i / 1080p
VGA / SVGA / XGA / WXGA (1280 x 768) / WXGA (1280 x 800) / Quad-VGA / SXGA / WGA (1360 x 768) / WXGA (1366 x 768) / SXGA+ / WXGA+ / WXGA++ / UXGA / WSXGA+ / VESA1080 / WUXGA / QWXGA
Note: VESA1080 / WUXGA / QWXGA are only output as Reduced Blanking
The switcher can output both HDMI and HDBaseT simultaneously | | Audio | Digital
Number / Signal
2 outputs / Multi-channel linear PCM up to 8 channels
Sampling Frequency: 32 to 192 kHz
Sampling Size: 16- to 24-bit
Reference Level: -20 dBFS
Max. Input Level: 0 dBFS
Connector
2 female HDMI Type-A
2 RJ-45
Analog
Number / Signal
2 outputs / Stereo LR unbalanced signal
Input Impedance: 75 Ohms
Reference Level: -10 dBFS Max. Input Level: +10 dBFS
Connector
1 RCA pin jack
Lip Sync
Up to 16 frames | | | | Digital Equalization | Input
From 33' (10 m) up to 99' (30 m) (approximately)
Output
HDMI / DVI: From 33' (10 m) up to 165' (50 m) (approximately)
HDBaseT: Up to 330' (100 m) (approximately) | | Analog | Video Processing Unit: 3 D Y/C separation | | Scan | Converter: Aspect Ratio Control, Seamless Switching, Picture adjustment (brightness, contrast, display position, display size), Motion adaptive I/P conversion | | Others | Volume adjustment (Volume of input and output ports can be set separately)
Audio breakaway enables independent audio and video switching
Cross-point memory (Storage for 7 settings)
Preset memory (8 settings and startup settings)
Last memory
Anti-Snow
Connection Reset
External control commands (32 commands)
Front panel security lockout
Lip Sync
Auto input detection and switching | | | | Serial Port | Number / Signal
1 port / RS-232 C
Connector
1 male 9-pin D-Sub | | LAN Port | Number / Signal
1 port / 10Base-T (Auto Negotiation), 100Base-TX (Auto Negotiation), Auto MDI/MDI-X
Connector
1 RJ45 | | Commands | Outputs to External Device: RS-232C, LAN, CEC (controls power of display), PJ Link (class1) | | | | Power Supply | 100 to 240 VAC, 2.5 A, 50/60 Hz, 48 W | | Dimensions | 16.9 x 13.7 x 1.44" (42.9 x 34.7 x 3.6 cm) | | Weight | 9.5 lb (4.3 kg) |
