User Manual for Analog Way QuickMatriX QMX150 Click to enlarge the picture
Contents of the user manual for the Analog Way QuickMatriX QMX150
- Product category: Production Switchers Analog Way
- Brand: Analog Way
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Analog Way Production Switchers
|
User manual for the Analog Way QuickMatriX QMX150 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Analog Way product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Analog Way user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Analog Way product will considerably shorten its lifespan!
|

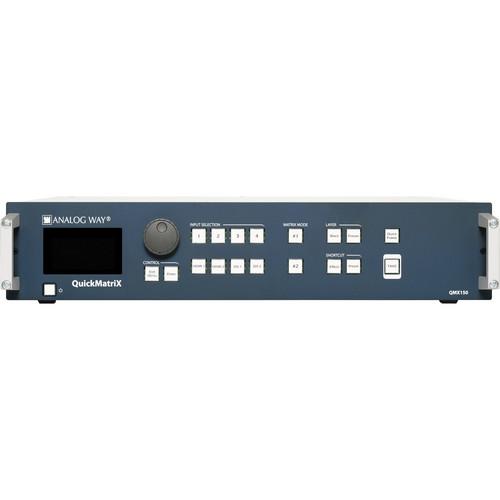

Product description The Analog Way QuickMatriX QMX150 is an 8x2 true seamless matrix scaler with native high-resolution outputs. - QuickMatriX at a Glance
- - New Midra platform
- New RCS2 Remote Control Software (Windows, Mac, Linux)
- Very fast processing and true seamless switching
- Low frame delay
- Full audio digital compliant on DVI-D and HDMI plugs
- Advanced audio management with the RCS2
- Quick Frame mode
- New EDID management on 6 inputs
- Ability to read and display the output EDIDs
- New De-interlacing processing
- Custom output formats
- Matrix mode - Basic version (only background)
- Asynchronous Seamless Scaled Matrix
- Independent management per output (Take Control)
- New Dynamic Fit
- Capability to switch between any input plugs (14 plugs available)
- New 3D filter for SDTV composite sources
- Outputs fully resizable - Key Features
- - 8 seamless inputs
- 2 outputs (Output #1 and Output #2)
- 14 input plugs available (4x DVI-D, 4x HDMI, 4x Universal Analog, 2x 3G/HD/SD-SDI)
- Computer formats up to 2K
- Resizable Live Background
- Transitions: Fade (Dissolve), Cut, Wipe and Slide
- Dynamic layer (Moving from A to B) with Flying, Zooming or Cropping
- All audio inputs can be embedded or de-embedded on all plugs
- Audio breakaway mode
- Audio fast Routing mode
- Audio Delay Compensation
- Balanced stereo audio on all outputs
- 2 S/PDIF inputs and 2 S/PDIF outputs
- Internal test patterns
- Chroma/Luma Key and Titling
- 8 memory presets
- 8 frames
- HDCP compliant - Operating Modes
- - 1 operating mode: Native Matrix mode
- Seamless switching on each output
- 1 Title on Live Background on each output - Optional Controllers
- - RCS2 Remote Control Software
- RK-350 Remote Keypad
- ORC50 Remote Controller Orchestra
- VRC300 High-End Remote Controller Vertige
- Crestron's Modules Serie2 & Serie3
- AMX's Modules In the Box Analog Way QuickMatriX QMX150 Power Supply Cord Ethernet Crossover Cable RCS2 Remote Control Software Set of 6 Audio 5-Pin Screw Terminals Front Rack Ears User Manual (PDF) Quick Start Guide 3-Year Parts and Labor Warranty User Manual PDF 8.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way QuickMatriX QMX150 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way QuickMatriX Specs | Power | 100-240 VAC, 2.5 A, 50/60 Hz, 110 W | | Dimensions | 15.75 x 17.3 x 3.46" (40 x W 44 x H 8.8 cm) | | Weight | 13.9 lb (6.3 kg) |
