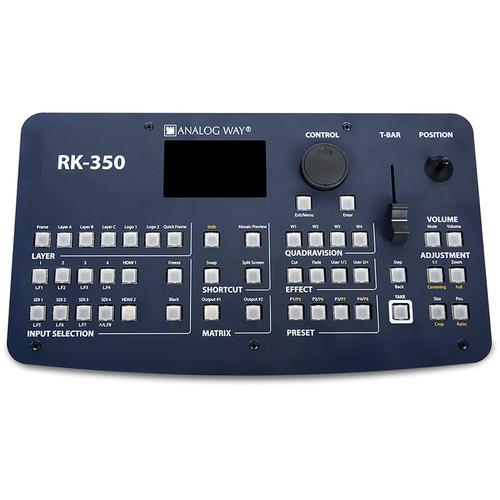

User Manual for Analog Way RK-350 Remote Control Keypad Click to enlarge the picture
Contents of the user manual for the Analog Way RK-350 Remote Control Keypad
- Product category: Switcher Accessories Analog Way
- Brand: Analog Way
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Analog Way Switcher Accessories
|
User manual for the Analog Way RK-350 Remote Control Keypad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Analog Way product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Analog Way user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Analog Way product will considerably shorten its lifespan!
|
Product description The Analog Way RK-350 Remote Control Keypad is a user-friendly controller that allows you to connect and toggle between six Analog Way seamless switchers. It's capable of store settings for all six, whether they're the same model or different. It features a mini joystick for easy element control, RJ45 Ethernet interface, and large VFD display offering a high contrast menu. - User Controls
-
- High contrast, graphic fluorescent display
- Displays controlled device status
- Full control menu for up to 6 switchers
- Direct layers, logos, frames, and source selection
- User defined layers properties presets
- Illuminated 3 color buttons
- Mini T-Bar level effect controller
- Quick adjustments by mini-joystick
- Stand-by mode
- Input/Output Connectors
-
- RJ45 for TCP/IP Ethernet connection
- RS232 communication port
- Power jack coax
- Compatible Switchers
-
- EKS550: Eikos²
- SPX450: Saphyr
- SMX250: SmartMatriX²
- PLS350: Pulse²
- QMX150:QuickMatriX
- QVU150:QuickVu
In the Box Analog Way RK-350 Remote Control Keypad Power Supply Cord DB9 (M/F) Cable Carrying Case Quick Start Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way RK-350 Remote Control Keypad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way RK-350 Specs | Connections | RJ45 for TCP/IP Ethernet connection
RS232 communication port
Power jack coax | | External Power Supply | Input: 100-240 VAC 400 mA 47-63 Hz; Output: 9 V DC 1.5 A | | Dimensions | 7.3 x 12.6 x 1.9" (18.5 x 32 x 4.8 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 17.0 x 14.2 x 5.4" |
