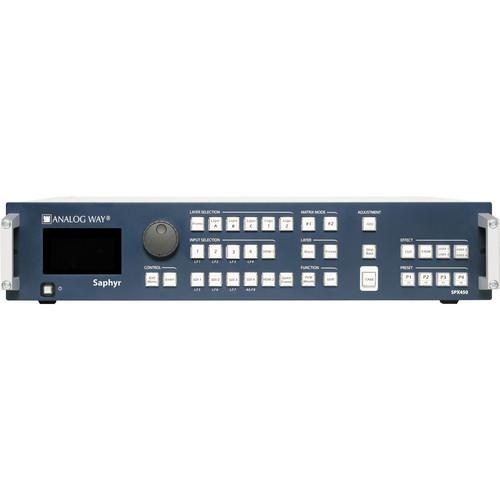

Product description The Analog Way Saphyr SPX450 Multi-Layer Mixer Seamless Switcher is a 10-input mixer/switcher that supports resolutions up to 2040 x 1152@60Hz on both input and output. It features two operating modes -- Mixer mode and Native Matrix Switcher mode, and it supports seamless switching in both, with 1 Layer in full Preview in Mixer mode. You can apply 1 Title on Live Background or 1 Title + 1 Layer on Still Background in both modes; 1 Layer on Still Background in both modes; 1 Layer or 2 Layers on Live Background in Mixer mode; or 3 Layers on Still Background in Mixer mode. - Operating Modes
- - 2 operating modes: Mixer and Native Matrix modes
- Seamless switching with full Preview in Mixer mode with 1 Layer in Preview
- Seamless switching in Native Matrix mode
- 1 Title on Live Background in Mixer or Native Matrix mode
- 1 Title + 1 Layer on Still Background in Mixer or Native Matrix mode
- 1 Layer on Still Background in Mixer or Native Matrix mode
- 1 Layer on Live Background in Mixer mode
- 2 Layers on Live Background in Mixer mode
- 3 Layers on Still Background in Mixer mode
- All audio inputs can be embedded or de-embedded on all plugs - Input / Output Features
- - 10 seamless inputs
- 2 outputs (Program and Preview)
- 16 input connections available (4x DVI-D, 4x HDMI, 4x Universal Analog, 4x 3G/HD/SD-SDI)
- EDID management on 6 inputs
- Custom output formats
- Ability to modify the Program in real-time without using the Preview
- Full audio digital compliant on DVI-D & HDMI connections
- Capability to switch between any inputs (16 inputs connections available)
- 3D filter for SDTV composite sources
- Fully resizable outputs
- Video output (CVBS, YPbPr, 3G-SDI)
- Balanced stereo audio on all outputs
- 2 S/PDIF inputs, 2 S/PDIF outputs
- 8 memory presets per output - Key Features
- - Computer formats up to 2K
- Midra platform
- RCS² remote control software (Windows, Mac, Linux)
- Fast processing and seamless switching
- Low frame delay
- Up to 3 Layers on Frame Background
- Advanced audio management with the RCS² software
- Audio Fast Routing mode
- Quick frame mode
- Ability to read and display the output EDIDs
- Deinterlacing processing
- Freeze features (Input/Layer/Screen)
- Dynamic fit
- Capability to crop the Frames and Logos
- Mosaic Preview
- Preview OSD - Other Features
- - All live Layers fully resizable
- Layer: Pan & Zoom resizing up to 1000%
- Layer: Open/Close animation
- Layer: Border and Shadow (Edge: 1 Color, 1 Width, 1 Height)
- Transitions: Fade (Dissolve), Cut, Wipe, and Slide
- Dynamic Layer (moving from A to B) with Flying, Zooming, or Cropping
- Audio breakaway mode
- Audio Top Layer mode
- Audio Fast Routing mode
- Audio Delay Compensation
- Internal test patterns
- Chroma/Luma Key and Titling
- 8 Full Frames, 8 logo presets, 1 animated logo
- HDCP compliant
- Mosaic Preview mode: 1 live image and 9 images refreshed as fast as possible / or 10 images refreshed as fast as possible - Compatible Controllers
- - RCS² remote control software
- RK-350 remote keypad
- ORC50 remote controller orchestra
- VRC300 remote controller
- Vertige
- Crestron modules: Serie2 & Serie3
- AMX modules In the Box Analog Way Saphyr SPX450 Multi-Layer Mixer Seamless Switcher Power Supply Cord Ethernet Crossover Cable RCS² Remote Control Software (Free Download) Set of 6 Audio 5-Pin Screw Terminals Front Rack Ears Quick Start Guide 3-Year Limited Warranty User Manual PDF 10mbdsvqzyxqacxawyuraraudcxxuxuarwzbasyd Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way Saphyr SPX450 Multi-Layer Mixer Seamless Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way Saphyr Specs | Power Supply | 100-240 VAC, 2.5 A, 50/60 Hz, 110 W | | Dimensions | 15.75 x 17.3 x 3.46" (40 x 44 x 8.8 cm) | | Weight | 13.9 lb (6.3 kg) | | | | Package Weight | 18.05 lb | | Box Dimensions (LxWxH) | 21.5 x 18.0 x 7.5" |
