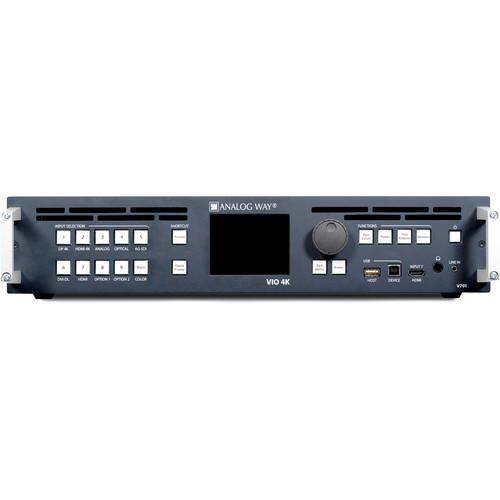

User Manual for Analog Way VIO 4K Analog Digital Multi-Format Converter Click to enlarge the picture
Contents of the user manual for the Analog Way VIO 4K Analog Digital
- Product category: Signal Converters Analog Way
- Brand: Analog Way
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Analog Way Signal Converters
|
User manual for the Analog Way VIO 4K Analog Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Analog Way product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Analog Way user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Analog Way product will considerably shorten its lifespan!
|
Product description Achieve high-performance scaling and video processing with the VIO 4K Analog/Digital Multi-Format Converter from Analog Way. With up to nine inputs, three independent outputs, and a set of optional cards, this converter can display up to 4K at 60p. It features a 3.5" color TFT LCD display for live monitoring, output rotation of 90, 180, and 270° per output, area of interest management, and unlimited zooming and shrinking. With the VIO 4K, you can convert a single source to three independent outputs or extract different parts of the source to product creative displays. This solution is suited for use in broadcasting, video-wall systems, monitoring systems, among many other possible uses. - Advanced LED wall functionalities
- Ultra-low latency 10-bit processing 4:4:4
- Two slots for video option card system expansion
- One slot for audio option card system expansion
- High-quality scaling engine
- Source can be positioned anywhere on the screen, and up to 100% outside the screen in any direction
- Genlock + Loop-through: Tri-level Sync. (HD) and Black Burst (SD)
- Cross hatch, Dynamic Pattern
- Audio management: 8 channels up to 96 kHz (Digital audio, AES & 3id)
- Audio Delay compensation up to 300 ms
- Fast swappable DVI I/O boards
- Memory space for frames in 4K
- Advanced features:
Quick frame
Low frame delay
Upward conversion (Scaler)
Downward conversion (Scan converter)
Transcoder
Coder
Aspect ratios
Multi-format analog Genlock
Dynamic test patterns
Pan & Zoom functions
Freeze frame
Aperture correction
Audio & video monitoring directly from front panel
Output rotation
Custom formats
EDID management
Genlock/Framelock
Gamma correction & color temperature settings In the Box Analog Way VIO 4K Analog/Digital Multi-Format Converter (2 RU) Power Cord Ethernet Cross Cable USB 2.0 Type-A Male to USB 2.0 Type-B Male Cable Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Analog Way VIO 4K Analog Digital Multi-Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnalog Way V701 Specs | Inputs | 1 x DisplayPort up to 4K @ 30 Hz
1 x HDMI up to 4K @ 30 Hz
1 x 6G-SDI
1 x 6G-SDI Loop-through
1 x Universal Analog
1 x DVI Dual-Link up to 2560 x 1600 @ 60 Hz
1 x Video Optical SFP Module cage
1 x HDMI up to 2K/1080p (front panel)
1 x 3.5 mm jack for stereo audio (front panel)
1 x Genlock
1 x Genlock Loop-through | | Outputs | 1 x DisplayPort up to 4K @ 30 Hz
1 x HMDI up to 4K @ 30 Hz
1 x 6G-SDI Compliant Level A
1 x 6G-SDI Compliant Level B
1 x Universal Analog
1 x DVI Dual-Link up to 2560 x 1600 @ 60 Hz
1 x Video Optical SFP Module cage
1 x 1/4" / 6.35 mm stereo jack for headphones (front panel) | | Network | 1 x USB Host port
1 x Device port
1 x Ethernet port
1 x Device Sync port
1 x RS-232 port
1 x 3D Sync In/out port
1 x 5-pin terminal GPO port | | Supported Output Resolutions | 1080P/1080i
720P
480P/480i
2K/1080p
WUXGA (1920 x 1200 @ 60 Hz)
WQXGA (2560 x 1600 @ 60 Hz)
UHD (3840 x 2160 @ 30 Hz)
4K (4096 x 2160 @ 30 Hz) | | Audio Delay | Up to 300 ms | | Noise | Front: 39 dBA @ 3.3'
Rear: 39 dBA @ 3.3' | | Thermal Dissipation | 154 BTU/hour | | Operating temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Humidity | 10 to 80%, non-condensing | | Operating Altitude | 9842' (3000 m) | | Environment | RoHS 2: EN50581 (2012) | | Power Supply | 100 to 240 VAC 50/60 Hz, 3.2 A | | Power Consumption | 120 W | | Certifications | UL, CSA, GS, CE | | Dimensions | 17.3 x 15.75 x 3.46" (43.9 x 40.0 x 8.8 cm) | | Weight | 13.7 lb (6.2 kg) |
