Anchor Audio ACL-DUAL-HH Acclaim Dual Package

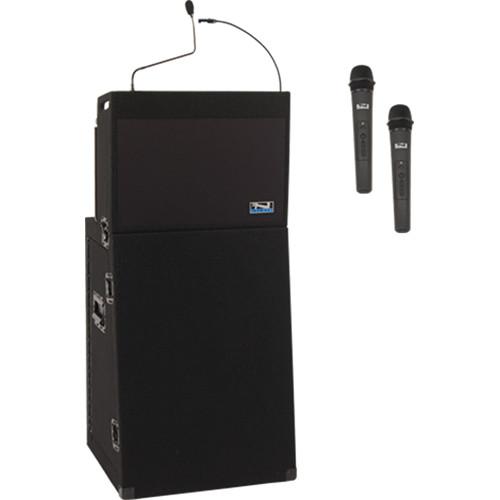

User Manual for Anchor Audio ACL-DUAL-HH Acclaim Dual Package with Base and Two Wireless Handheld Microphones

• Product category: Lecterns & Podiums Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Lecterns & Podiums

Product description

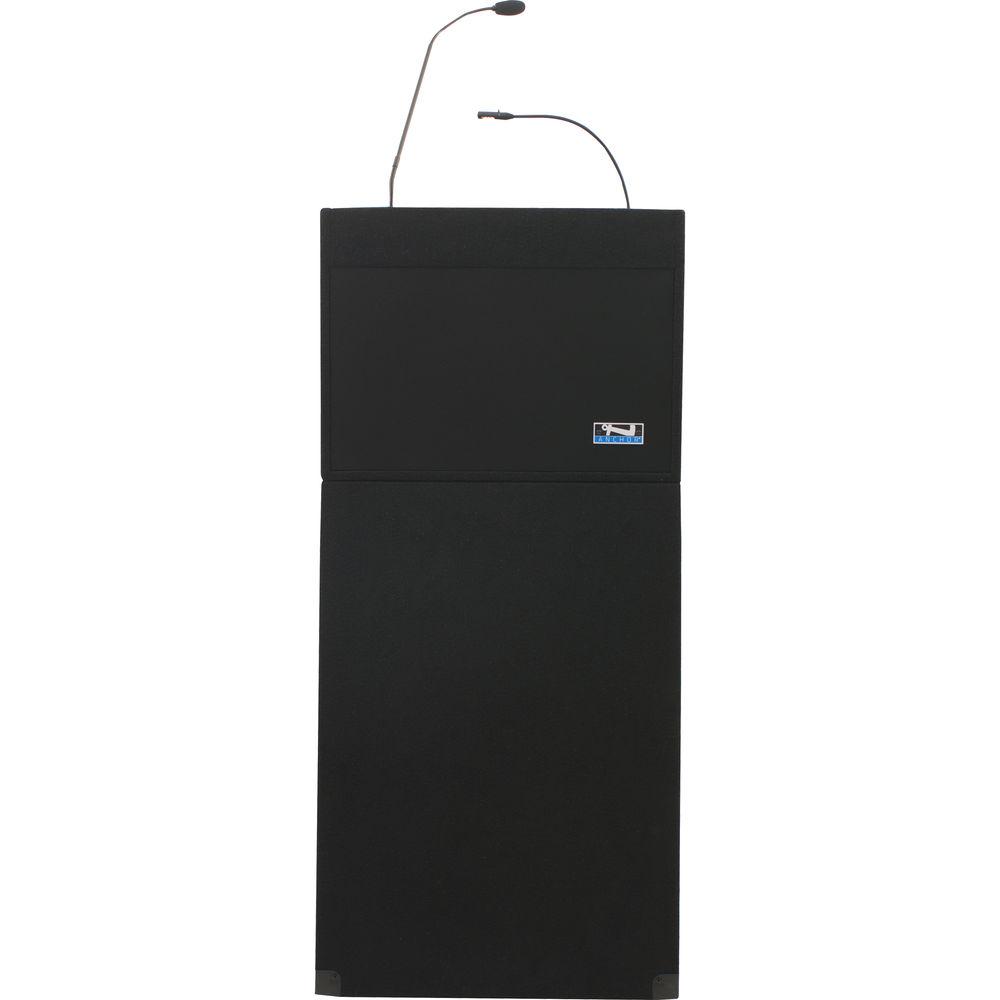

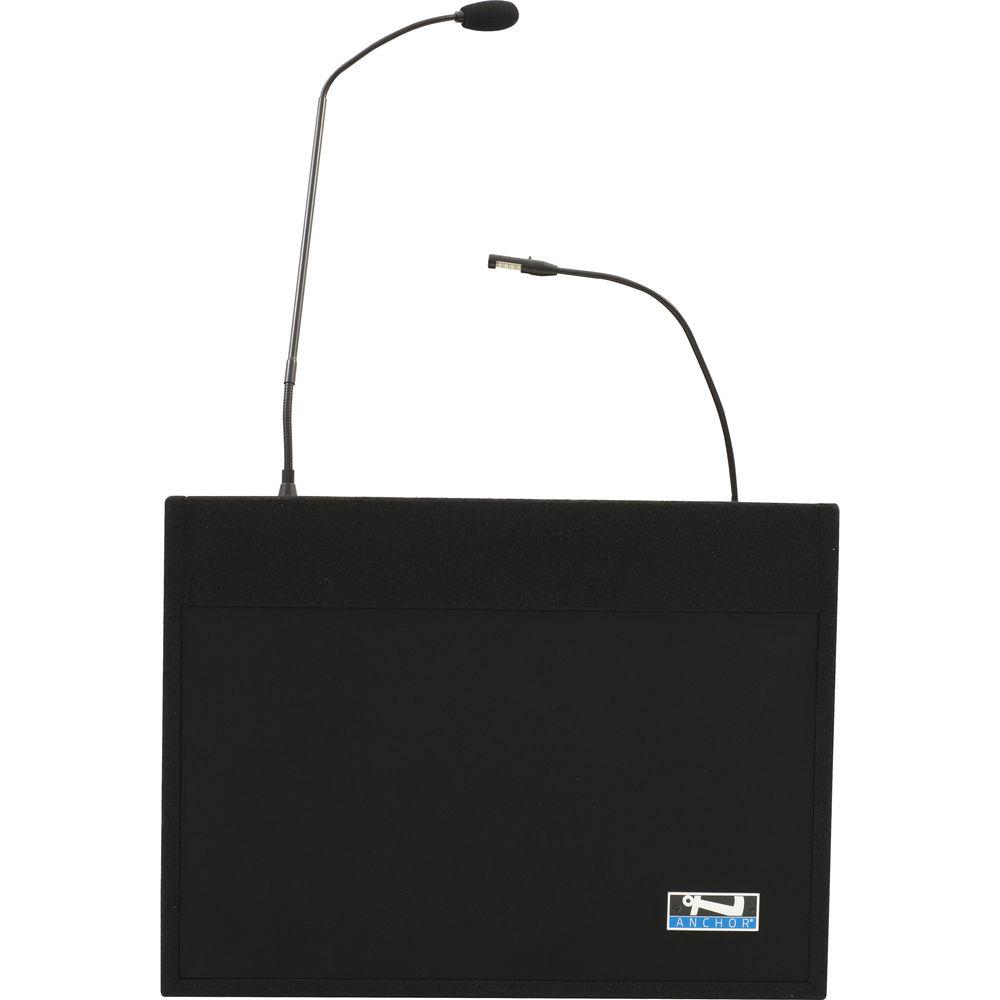

• ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver The ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver from Anchor Audio is a versatile, portable sound lectern with a rechargeable lithium-ion battery and a single dual-wireless microphone receiver (wireless mics sold separately). It can be used to provide clear voice amplification for presentation, lecture, public speaking, and podium applications with its full-range speaker.The ACL2-U2 is built with a 3-pin XLR microphone connector. There is also a 1/4" input for a second microphone, a 1/4" line input, and a Lo-Z 1/4" line output (post fader). An 1/4" unswitched 4W speaker output allows for an additional companion speaker to be attached.Other features include: a USB gooseneck LED reading light, LM-618 detachable gooseneck electret condenser microphone, built-in 8" neodymium woofer, and bullet-horn tweeter. Finally, the ACL2-U2 Acclaim Tabletop Lectern provides everything you need to get up and speaking straight out of the box (requires wireless microphones).
  • Reaches crowds of 500+
  • 22W AC/DC mode
  • Built-in rechargeable lithium-ion battery
  • 113 dB of clear sound
  • Includes LED gooseneck reading light
  • Includes 3-pin XLR gooseneck microphone
  UPC: 819941015130
• ACL2-BASE Base and Transportation Case for Acclaim Lectern (Black) The black ACL2-BASE Base and Transportation Case for Acclaim Lectern from Anchor Audio is designed for the Acclaim 2 portable tabletop lectern (sold separately). It comfortably fits the lectern and can be used for storage and easy transport. The ACL2-Base features a built-in extendable handle and wheels for easy transport to your venue. This case can also be used as a base for the lectern. UPC: 819941010494
• WH-LINK Wireless Handheld Microphone (1.9 GHz) The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'. Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • Volume and mute control on the microphone
    • Lightweight design
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  UPC: 819941016243

• LM-618 Gooseneck Microphone

• USB LED Reading Light

• Limited 6-Year Warranty

• Limited 4-Year Warranty for Batteries

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver

  Rated Power Output	22 W AC/DC
  Maximum SPL	113 dB @ 1 m at Rated Power
  Frequency Response	60 Hz to 17 kHz ±3 dB
  Wireless Frequency	1.9 GHz DECT
  Wireless Range	300.0" / 762.0 cm Line of Sight
  USB	5 V 500 mA
  Battery	1 x 12 V LFP Rechargeable Battery, 7.0 AH
  Charger	RC2: 19 VDC / Universal Input / 60 W (110 to 240 VAC, 50/60 Hz)

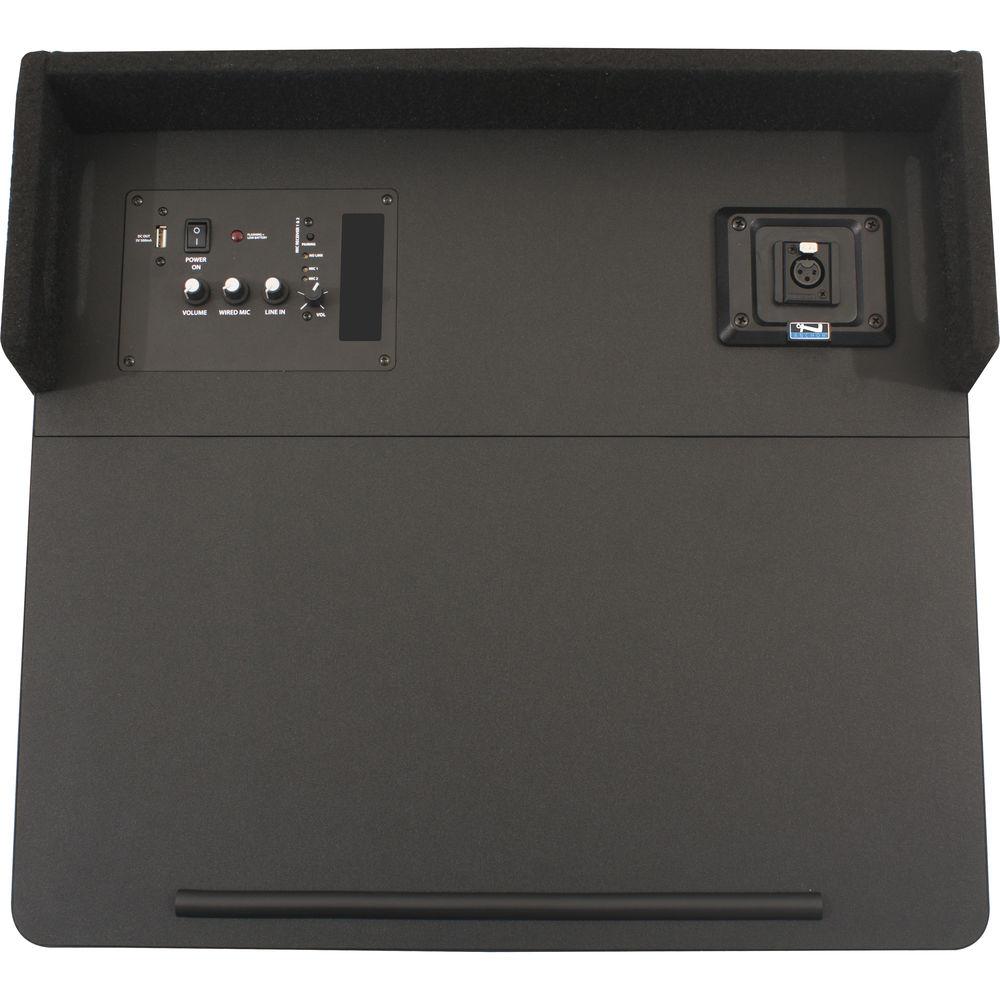

  Inputs	Lectern Microphone: Lo-Z, Balanced Phantom Power, XLR Wired Microphone: Lo-Z, Unbalanced, 1/4" / 6.3 mm Phone Jack Line Input: Hi-Z Unbalanced, 1/4" / 6.3 mm Phone Jack
  Outputs	Line Output (Post Fader): Lo-Z, 1/4" /6.3 mm Phone Jack Speaker Output: 4 W, unswitched 1/4" / 6.3 mm Phone Jack, 20 W Max
  Dimensions (H x W x D)	21.5 x 15.5 x 8.5" / 54.6 x 39.4 x 21.6 cm
  Weight	29.5 lb / 13.4 kg

  Type of Microphone	Electret Condenser (Requires Phantom Power)
  Polar Pattern	Unidirectional, Cardioid
  Frequency Response	500 Hz to 18 kHz
  Sensitivity	-70 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 65 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
