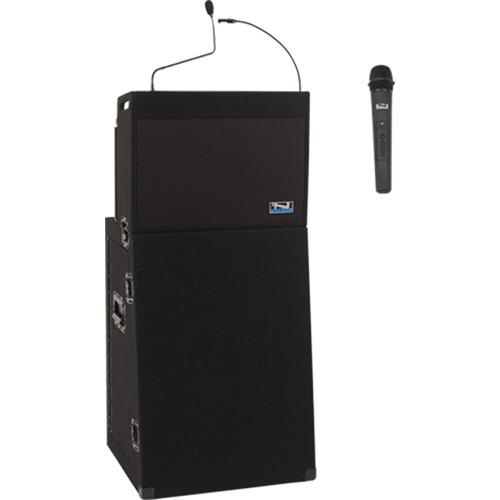

User Manual for Anchor Audio ACL-SINGLE-H Acclaim Single Package with Base and One Wireless Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Anchor Audio ACL-SINGLE-H Acclaim Single Package
- Product category: Lecterns & Podiums Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Lecterns & Podiums
 |
User manual for the Anchor Audio ACL-SINGLE-H Acclaim Single Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|

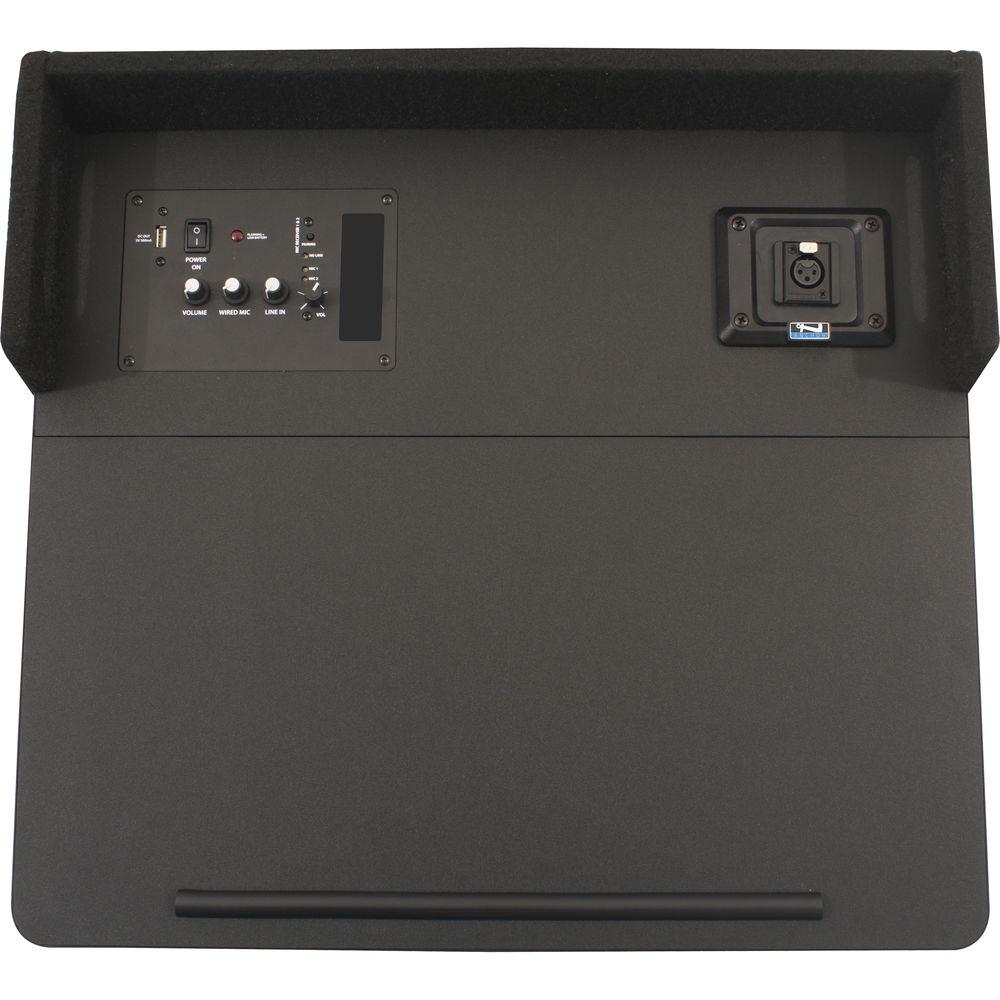

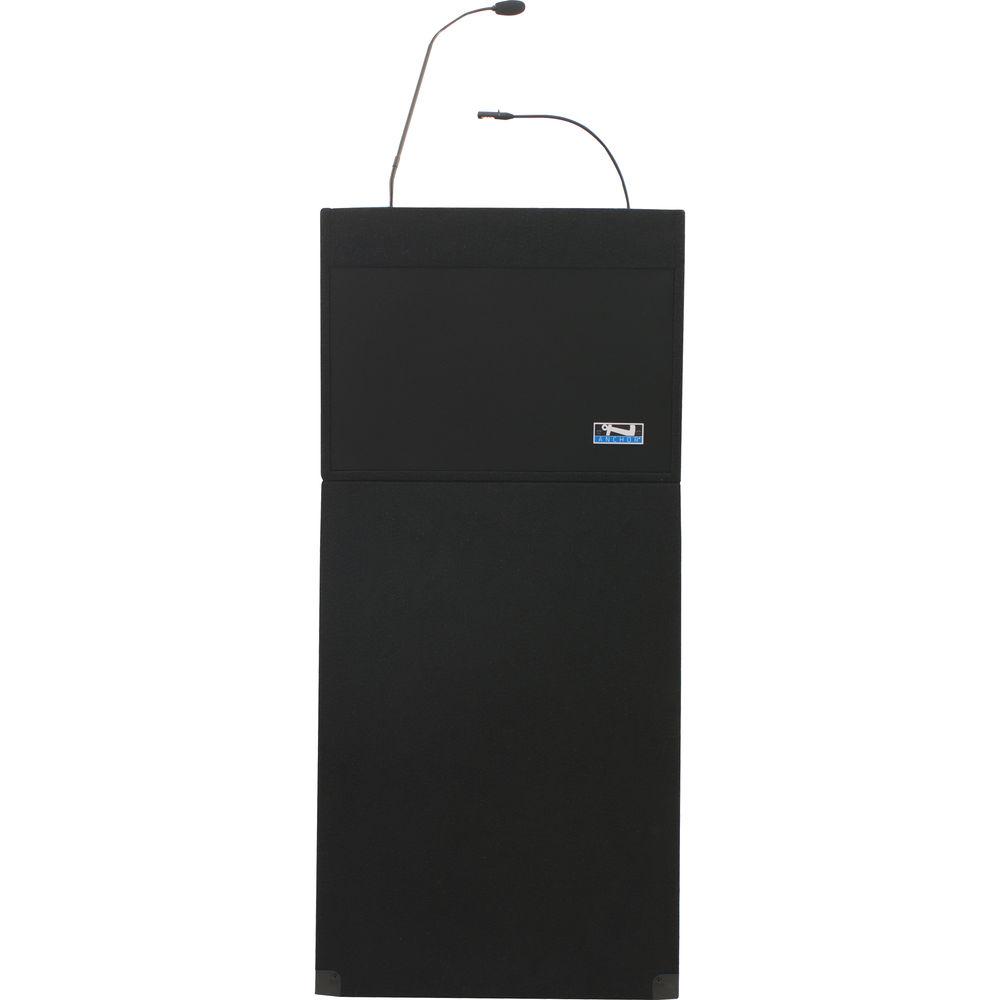

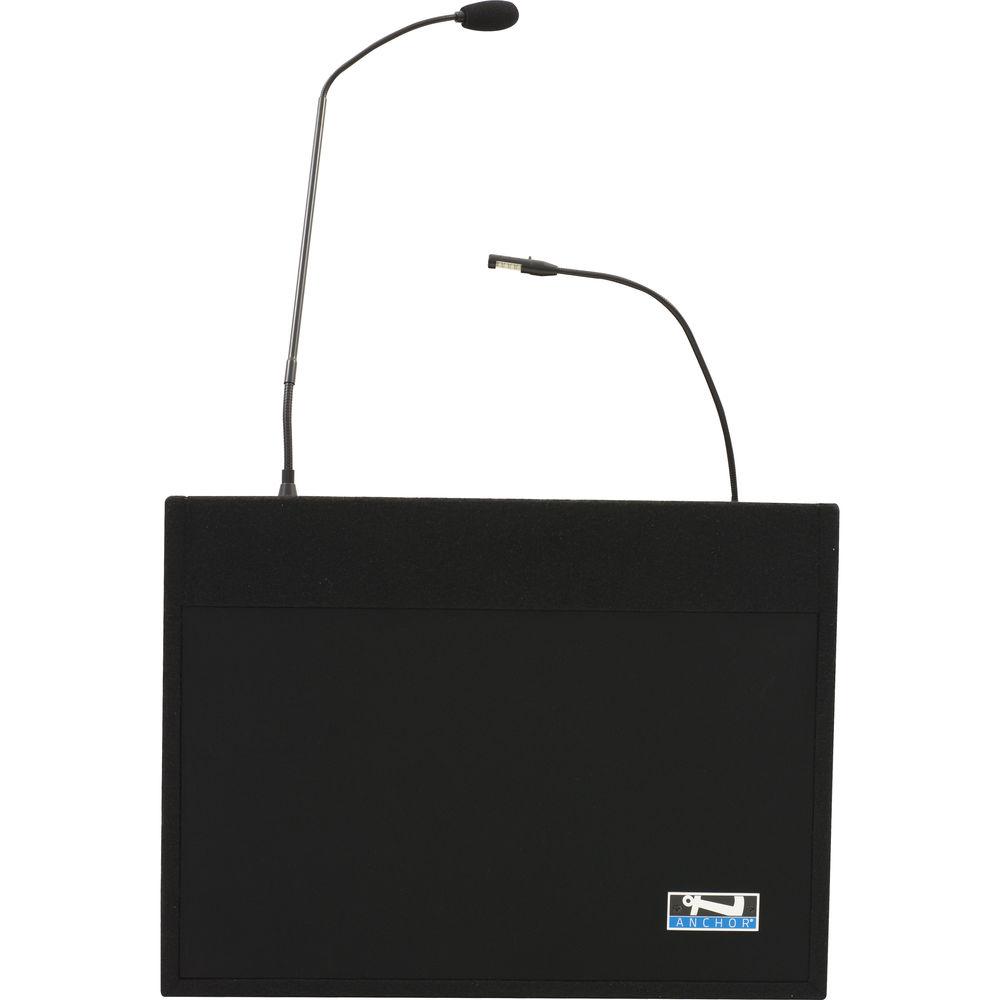

Product description The ACL-SINGLE-H Acclaim Single Package with Base and One Wireless Handheld Microphone from Anchor Audio includes the ACL2-U2 Acclaim Tabletop Lectern with a single built-in dual-wireless receiver, an ACL2-BASE and transport case for the Acclaim Lectern, a WH-Link handheld wireless transmitter and microphone, LM-618 gooseneck microphone, and USB LED reading light. This package can be used to deliver clear voice amplification, storage, transport, and lectern base for presentation, lecture, public speaking, and podium applications with its full-range speaker. - ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver The ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver from Anchor Audio is a versatile, portable sound lectern with a rechargeable lithium-ion battery and a single dual-wireless microphone receiver (wireless mics sold separately). It can be used to provide clear voice amplification for presentation, lecture, public speaking, and podium applications with its full-range speaker.The ACL2-U2 is built with a 3-pin XLR microphone connector. There is also a 1/4" input for a second microphone, a 1/4" line input, and a Lo-Z 1/4" line output (post fader). An 1/4" unswitched 4W speaker output allows for an additional companion speaker to be attached.Other features include: a USB gooseneck LED reading light, LM-618 detachable gooseneck electret condenser microphone, built-in 8" neodymium woofer, and bullet-horn tweeter. Finally, the ACL2-U2 Acclaim Tabletop Lectern provides everything you need to get up and speaking straight out of the box (requires wireless microphones).
- Built-in rechargeable lithium-ion battery
- Includes LED gooseneck reading light
- Includes 3-pin XLR gooseneck microphone
UPC: 819941015130 - ACL2-BASE Base and Transportation Case for Acclaim Lectern (Black) The black ACL2-BASE Base and Transportation Case for Acclaim Lectern from Anchor Audio is designed for the Acclaim 2 portable tabletop lectern (sold separately). It comfortably fits the lectern and can be used for storage and easy transport. The ACL2-Base features a built-in extendable handle and wheels for easy transport to your venue. This case can also be used as a base for the lectern. UPC: 819941010494
- WH-LINK Wireless Handheld Microphone (1.9 GHz) The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'. Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
- Key Features
-
- 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
- Automatic frequency hopping ensures a clear transmission without having to manually change the channel
- 300’ line-of-sight wireless range
- Volume and mute control on the microphone
- Lightweight design
- One-time pair function allows you to pair your mic with your system once without having to repeat the operation
- Runs up to eight hours on two AA batteries
- Compatible PA Systems
- Compatible with the following systems equipped with AnchorLink Series receivers
- Bigfoot
- Beacon
- Liberty
- Go Getter
- MegaVox
- MiniVox
- AN-Mini
- AN-1000X+
- AN-130+
- CouncilMAN
- Acclaim
UPC: 819941016243 In the Box Bundle Items ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver xwscbwqxxuurdzfwta - LM-618 Gooseneck Microphone
- Limited 4-Year Warranty for Batteries
ACL2-BASE Base and Transportation Case for Acclaim Lectern (Black) WH-LINK Wireless Handheld Microphone (1.9 GHz) Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio ACL-SINGLE-H Acclaim Single Package with Base and One Wireless Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ACL2-U2 Acclaim Tabletop Lectern with Single Built-In Dual Wireless Microphone Receiver
| Rated Power Output | 22 W AC/DC | | Maximum SPL | 113 dB @ 1 m at Rated Power | | Frequency Response | 60 Hz to 17 kHz ±3 dB | | Wireless Frequency | 1.9 GHz DECT | | Wireless Range | 300.0" / 762.0 cm Line of Sight | | USB | 5 V 500 mA | | Battery | 1 x 12 V LFP Rechargeable Battery, 7.0 AH | | Charger | RC2: 19 VDC / Universal Input / 60 W (110 to 240 VAC, 50/60 Hz) | | Inputs | Lectern Microphone: Lo-Z, Balanced Phantom Power, XLR
Wired Microphone: Lo-Z, Unbalanced, 1/4" / 6.3 mm Phone Jack
Line Input: Hi-Z Unbalanced, 1/4" / 6.3 mm Phone Jack | | Outputs | Line Output (Post Fader): Lo-Z, 1/4" /6.3 mm Phone Jack
Speaker Output: 4 W, unswitched 1/4" / 6.3 mm Phone Jack, 20 W Max | | Dimensions (H x W x D) | 21.5 x 15.5 x 8.5" / 54.6 x 39.4 x 21.6 cm | | Weight | 29.5 lb / 13.4 kg | | | | Type of Microphone | Electret Condenser (Requires Phantom Power) | | Polar Pattern | Unidirectional, Cardioid | | Frequency Response | 500 Hz to 18 kHz | | Sensitivity | -70
