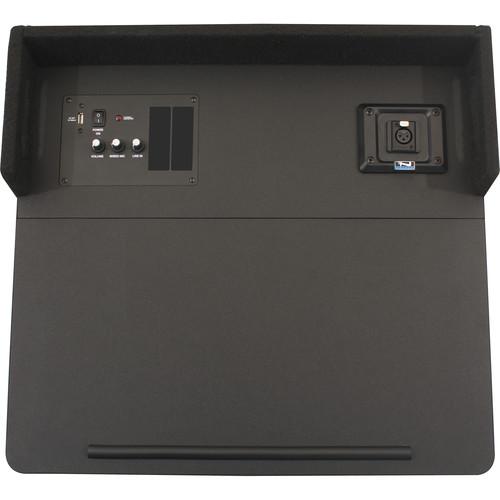

User Manual for Anchor Audio ACL2 Acclaim Tabletop Lectern Click to enlarge the picture
Contents of the user manual for the Anchor Audio ACL2 Acclaim Tabletop Lectern
- Product category: Lecterns & Podiums Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Lecterns & Podiums
|
User manual for the Anchor Audio ACL2 Acclaim Tabletop Lectern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description The ACL2 Acclaim Tabletop Lectern from Anchor Audio is a versatile, portable sound lectern with a rechargeable lithium-ion battery. It can be used to provide clear voice amplification for presentation, lecture, public speaking, and podium applications with its full-range speaker.The ACL2 is built with a 3-pin XLR microphone connector. There is also a 1/4" input for a second microphone, a 1/4" line input, and a Lo-Z 1/4" line output (post fader). An 1/4" unswitched 4W speaker output allows for an additional companion speaker to be attached.Other features include: a USB gooseneck LED reading light, LM-618 detachable gooseneck electret condenser microphone, built-in 8" neodymium woofer, and bullet-horn tweeter. Finally, the ACL2 Acclaim Tabletop Lectern provides everything you need to get up and speaking straight out of the box. - Built-in rechargeable lithium-ion battery
- Includes LED gooseneck reading light
- Includes 3-pin XLR gooseneck microphone
UPC: 819941015123 In the Box Anchor Audio ACL2 Acclaim Tabletop Lectern LM-618 Gooseneck Microphone xwscbwqxxuurdzfwta USB LED Reading Light Limited 6-Year Warranty Limited 4-Year Warranty for Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio ACL2 Acclaim Tabletop Lectern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Acclaim Specs | Rated Power Output | 22 W AC/DC | | Maximum SPL | 113 dB @ 1 m at Rated Power | | Frequency Response | 60 Hz to 17 kHz ±3 dB | | USB | 5 V 500 mA | | Battery | 1 x 12 V LFP Rechargeable Battery, 7.0 AH | | Charger | RC2: 19 VDC / Universal Input / 60 W (110 VAC to 240 VAC, 50/60 Hz) | | Inputs | Lectern Microphone: Lo-Z, Balanced Phantom Power, XLR
Wired Microphone: Lo-Z, Unbalanced, 1/4" / 6.3 mm Phone Jack
Line Input: Hi-Z Unbalanced, 1/4" / 6.3 mm Phone Jack | | Outputs | Line Output (Post Fader): Lo-Z, 1/4" /6.3 mm Phone Jack
Speaker Output: 4 W, unswitched 1/4" / 6.3 mm Phone Jack, 20 W Max | | Dimensions (H x W x D) | 21.5 x 15.5 x 8.5" / 54.6 x 39.4 x 21.6 cm | | Weight | 29.5 lb / 13.4 kg | | | | Type of Microphone | Electret Condenser (Requires Phantom Power) | | Polar Pattern | Unidirectional, Cardioid | | Frequency Response | 500 Hz to 18 kHz | | Sensitivity | -70
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
