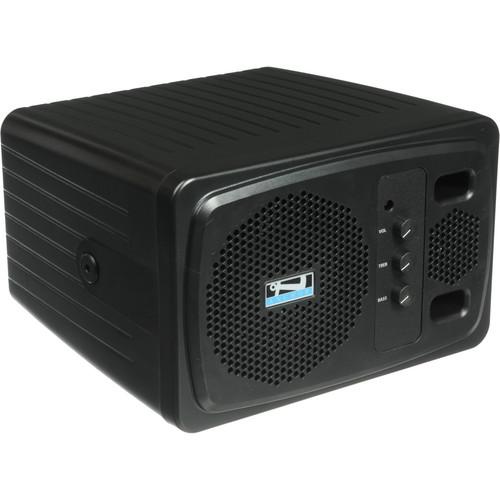

User Manual for Anchor Audio AN-1000X Speaker Monitor Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-1000X Speaker Monitor
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio AN-1000X Speaker Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More wdffavqzfdutvxwswatbrszrd The Anchor Audio AN-1000X+ Speaker Monitor is a powered monitor with a variety of input and output options designed to work in a number of different settings. With inputs including a mic or line level switchable female XLR, RCA or Hi-Z 1/4", the AN-1000X+ can easily be used in an A/V rack, as a studio monitor, or for live sound. Both the RCA and 1/4" line inputs can be used simultaneously.
By using the RCA line input and output, the AN-1000X+ can be daisy chained to other AN-1000X+ units to provide greater amplification as needed. The speaker output allows you to power an unpowered auxiliary speaker, such as the Anchor Audio AN-1001X+. - 107 dB maximum sound pressure level
- Designed to reach crowds of 250+
- One bass knob and one treble knob control to help shape sound
- Lightweight frame at only 9.5 lb
- Unit is mountable to walls, ceilings, or speaker stands with additional hardware
- Magnetically-shielded speakers
UPC: 819941010128 In the Box Anchor Audio AN-1000X+ Speaker Monitor Power Cable Limited 6 Year Warranty User Manual PDF 277.6kbwdffavqzfdutvxwswatbrszrd Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-1000X Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-1000X+ Specs | Rated Power Output | 50 W continuous @ 4 Ohms | | Maximum SPL | 107 dB | | Frequency Response | 65 Hz - 20 kHz (± 3 dB) | | Speaker Type | 4.5" / 11.4 cm woofer
0.4" / 10 mm dome tweeter | | Inputs | Balanced: Mic/Line configurable female XLR
Line: RCA & Hi-Z 1/4" | | Outputs | Line: RCA
Speaker: 1/4" TS @ 8 Ω | | Power Requirements | 110 - 125 VAC, 50/60 Hz, 90 W max
208 - 240 VAC, 50/60 Hz, 90 W max | | Dimensions (W x D x H) | 8.4 x 9 x 5.3" / 213 x 229 x 133 mm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 18.9 x 14.6 x 12.6" |
