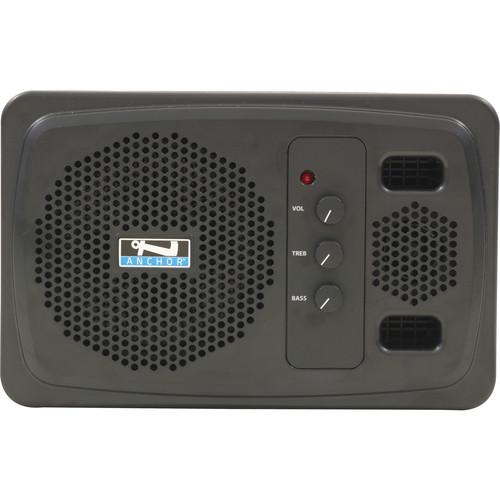

User Manual for Anchor Audio AN-1000XU2 Speaker Monitor with Dual-Channel Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-1000XU2 Speaker Monitor with
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio AN-1000XU2 Speaker Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio AN-1000XU2+ is a powered speaker monitor with a built-in dual-channel wireless mic receiver designed to project clear and intelligible speech, or to listen to music. Great for presentations, it delivers up to 50W of power to reach crowds up to 150 people and can be added to an A/V rack system with a video projector and mobile player, installed in a trade show booth, set up in a classroom, and more. The dual-channel receiver lets you connect two wireless microphones at a range of 150' (line-of-sight). The receiver operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference. The AN-1000XU2+ features an XLR mic/line balanced input, an RCA line input, and a Hi-Z 1/4" line input. Multiple units can be daisy-chained to provide greater sound coverage, and a speaker output allows you to drive an unpowered wired companion speaker such as the AN-1001X+ (available separately). - Designed to reach crowds of 250+
- 50W of power for 107 dB of clear sound
- 4.5" woofer, 10mm dome tweeter
- Connect two wireless mics
- Compatible with WH-LINK and WB-LINK transmitters
- Daisy-chain multiple units
- Built-in bracket mount screws for easy installation (bracket available separately)
UPC: 819941015185 In the Box Anchor Audio AN-1000XU2+ Speaker Monitor with Dual-Channel Wireless Receiver (Black) Power Cable Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-1000XU2 Speaker Monitor with Dual-Channel Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-1000X+ Specs | | | Rated Power Output | 50 W continuous at 4 Ohms | | Maximum SPL | 107 dB | | Frequency Response | 65 Hz to 20 kHz (±3 dB) | | Speaker Type | 4.5" / 11.4 cm woofer
0.4" / 10 mm dome tweeter | | Inputs | 1 x XLR female, mic / line configurable input, balanced
1 x RCA line input, unbalanced
1 x 1/4" / 6.3 mm Hi-Z line input, unbalanced | | Outputs | 1 x RCA line output, unbalanced
1 x 1/4" / 6.3 mm speaker output (8 Ohms, unswitched) | | Power Requirements | 110-125 VAC, 50/60 Hz, 50 W (maximum) | | Fuse | T 1.0 A / 250 V (internally mounted) | | Dimensions (H x W x D) | 9 x 8 x 5.5" / 23 x 21 x 14 cm | | Weight | 6.5 lb / 2.9 kg | | | | Type | Dual-channel | | Compatibility | WH-LINK and WB-LINK transmitters | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz | | Wireless Range | 150' / 46 m, line of sight | | | | Package Weight | 7.775 lb | | Box Dimensions (LxWxH) | 11.5 x 9.3 x 6.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
