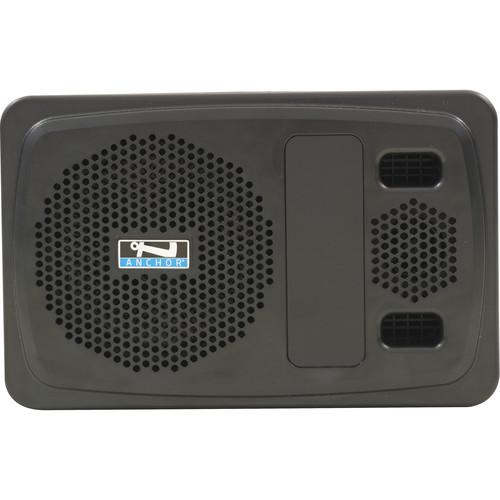

User Manual for Anchor Audio AN-100CMU2 Powered Speaker Monitor with Dual-Channel Receiver for CouncilMAN Conference System Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-100CMU2 Powered Speaker Monitor
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio AN-100CMU2 Powered Speaker Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio AN-100CMU2+ is a powered speaker monitor with a built-in dual-channel wireless mic receiver designed to be used with the CouncilMAN conference system. It delivers up to 30W of output to reach crowds up to 150 people, for city council meetings, corporate meetings, board meetings, and more.The AN-100CMU2+ can power up to eleven, daisy-chained conference microphones. The dual-channel receiver lets you connect two wireless microphones at a range of 150' (line-of-sight). The receiver operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference.The speaker features an XLR mic input and a 3.5mm line input for connecting a CD or mobile player, each with a volume knob. A balanced combo XLR/TRS line output allows you to connect the unit to recording, house audio, or assistive listening systems. - Key Features
-
- Powered speaker monitor for CouncilMAN conference system
- 30W power amplifier reaches crowds over 150
- Powers up to eleven daisy-chained conference microphones
- Connect two wireless mics
- Dual-channel receiver with automatic channel switching
- Compatible with WH-LINK and WB-LINK transmitters
- 1.9 GHz wireless frequency range
- 3.5mm line input
- XLR/1/4" line output combo connector for connection to in-house or external sound system
- Volume control knob
In the Box Anchor Audio AN-100CMU2+ Powered Speaker Monitor with Dual-Channel Receiver for CouncilMAN Conference System AC Power Cord Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-100CMU2 Powered Speaker Monitor with Dual-Channel Receiver for CouncilMAN Conference System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-100CMU2+ Specs | | | Rated Power Output | 30 W AC | | SPL | 103 dB at 3.2' / 1 m, maximum at rated power | | Frequency Response | 65 Hz to 18 kHz (±3 dB) | | Speaker Type | Woofer: 4.5" / 144.3 mm
Dome Tweeter: 0.4" / 10 mm | | Audio Inputs | Mic: 1 x XLR, female
Line: 1 x 1/8" / 3.5 mm | | Line Output | XLR and 1/4" / 6.3 mm TRS (balanced) combo connector
Lo-Z, buffered | | Line Output Level | -20 dBV (100 mVms) | | Control | Microphone volume knob
Line input volume knob | | Power Requirements | 100-125 VAC, 50/60 Hz | | Fuse Rating | T 1.0 A at 250 V (internally mounted) | | Construction | ABS plastic | | Dimensions (H x W x D) | 9 x 8.5 x 5.5" / 23 x 21.6 x 14 cm | | Weight | 4.5 lb / 2.0 kg | | | | Type | Dual-channel | | Compatibility | WH-LINK and WB-LINK transmitters | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz | | Wireless Range | 150' / 46 m, line of sight |
