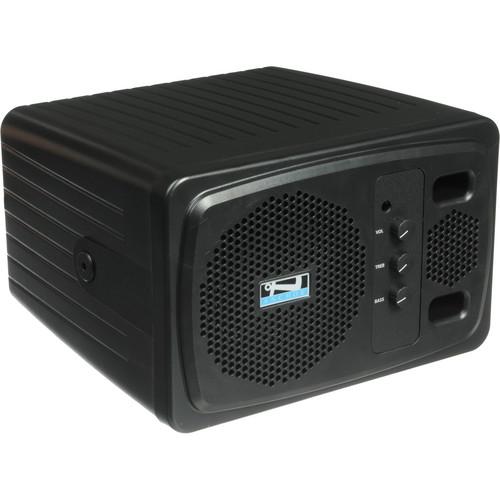

User Manual for Anchor Audio AN-130 Speaker Monitor Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-130 Speaker Monitor
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio AN-130 Speaker Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More yfuzdwuvbfurxfaterdtzy The An-130+ Speaker Monitor from Anchor Audio is a lightweight, single channel speaker designed for use in classrooms, board meetings, and corporate presentations. An unbalanced ¼" mic input in addition to both a ¼" and 3.5mm line in allow the AN-130+ to work easily with the audio output of video projectors, PCs, DVD players and MP3 players. Created to provide amplification for groups up to approximately 100 people, the AN-130+ is a versatile solution for small crowds.
The ¼" line output allows for the daisy chaining of multiple AN-130+ units for higher output for larger crowds. - 4.5" woofer and 10mm dome tweeter
- Bass and treble controls to help shape sound
In the Box Anchor Audio AN-130+ Speaker Monitor (Black) Power Cable 6 Year Limted Warranty User Manual PDF 375.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-130 Speaker Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-130 Specs | Inputs | Line: 1/4" Hi-Z and 3.5 mm
Mic: 1/4" unbalanced Lo-Z | | Outputs | 1 x 1/4" Lo-Z | | Rated Power Output | 30 W | | Maximum SPL | 106 dB @ 1 m | | Frequency Response | 65 Hz - 18 kHz +/- 3 dB | | sensitivity for rated output | Line: -20 dBV (100 mVrms)
Mic: -43 dBV (7.5 mVrms) | | Speaker Type | 4.5" woofer, 10 mm dome tweeter | | Power Requirements | 110 to 125 VAC, 50/60 Hz | | Fuse Rating | T 1.0A / 250V | | Dimensions (W x D x H) | 8.4 x 9 x 5.25" (21 x 23 x 13 cm) | | Weight | 8.5 lbs (3.8 kg) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 14.2 x 9.2 x 6.0" |
