User Manual for Anchor Audio AN-30CP Portable 30W Speaker Monitor with Bracket Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-30CP Portable 30W Speaker
- Product category: PA Speakers Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio PA Speakers
 |
User manual for the Anchor Audio AN-30CP Portable 30W Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|

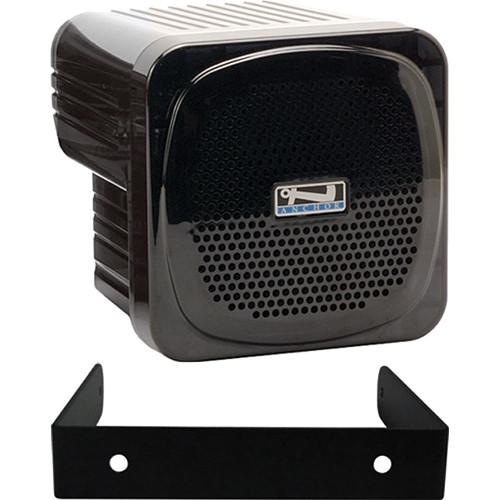

Product description The AN-30CP Portable 30W Speaker Monitor with Bracket (Black) from Anchor Audio packs incredibly powerful audio into a compact speaker that's easy to take anywhere. Weighing in at under 2 pounds, the AN-30 features a 4.5" neodymium speaker and a 30W amplifier to provide strong, clear audio up to 109dB for addressing crowds of 50 people or more.

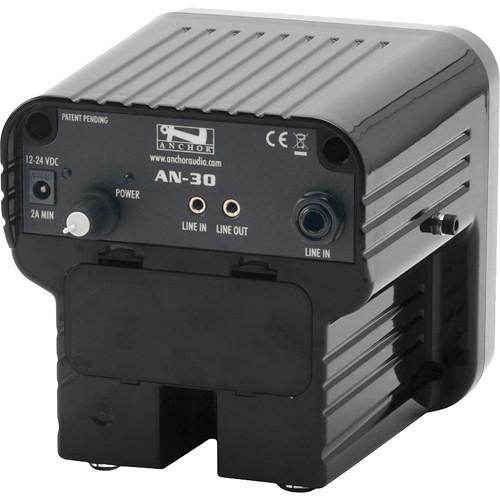

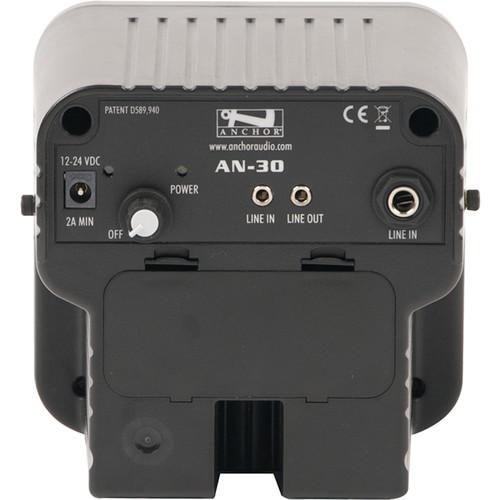

The speaker runs on 12-24VDC power and has an integrated mount for attaching a wall or ceiling bracket for easy installation. Standard 1/4" and 3.5mm line inputs make it easy to connect MP3 players, instruments, or CD players, while a 3.5mm line output lets you connect a mixer, recorder, or additional speaker. The included SB-30 bracket makes it easy to mount the speaker on a wall. An AC adapter is also included. - Compact and lightweight design with integrated mount point for attaching wall or ceiling brackets
- Powerful 4.5" neodymium driver
- Operates via 12-24VDC power
- 1/4" and 3.5mm line inputs let you connect a variety of sound sources, such as CD players, MP3 players, or instruments
- 3.5mm line output for connecting a recorder, mixer, or additional speaker
- SB-30 bracket included for convenient wall mounting
UPC: 642078885617 In the Box Anchor Audio AN-30CP Portable 30W Speaker Monitor with Bracket (Black) AC Adapter SB-30 Mounting Bracket 6-Year Limited Warranty User manual PDF 170.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-30CP Portable 30W Speaker Monitor with Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-30CP Specs | Output Power | 30W | | Maximum Sound Pressure Level (SPL) | 109dB | | Frequency Response | 100Hz - 15kHz ±3dB | | Connectors | 1 x Power Input
1 x 1/4" Mono Line Input
1 x 3.5mm Stereo Line Input
1 x 3.5mm Stereo Line Output | | Power | 12-24VDC | | Dimensions (HxWxD) | 5.5 x 5.5 x 6.5" (140 x 140 x 165mm) | | Weight | 1.5 lbs (0.68kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.4 x 12.1 x 7.5" |
