User Manual for Anchor Audio AN-MINI Personal Portable PA System Click to enlarge the picture
Contents of the user manual for the Anchor Audio AN-MINI Personal Portable PA
- Product category: Personal PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Personal PA Systems
 |
User manual for the Anchor Audio AN-MINI Personal Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|

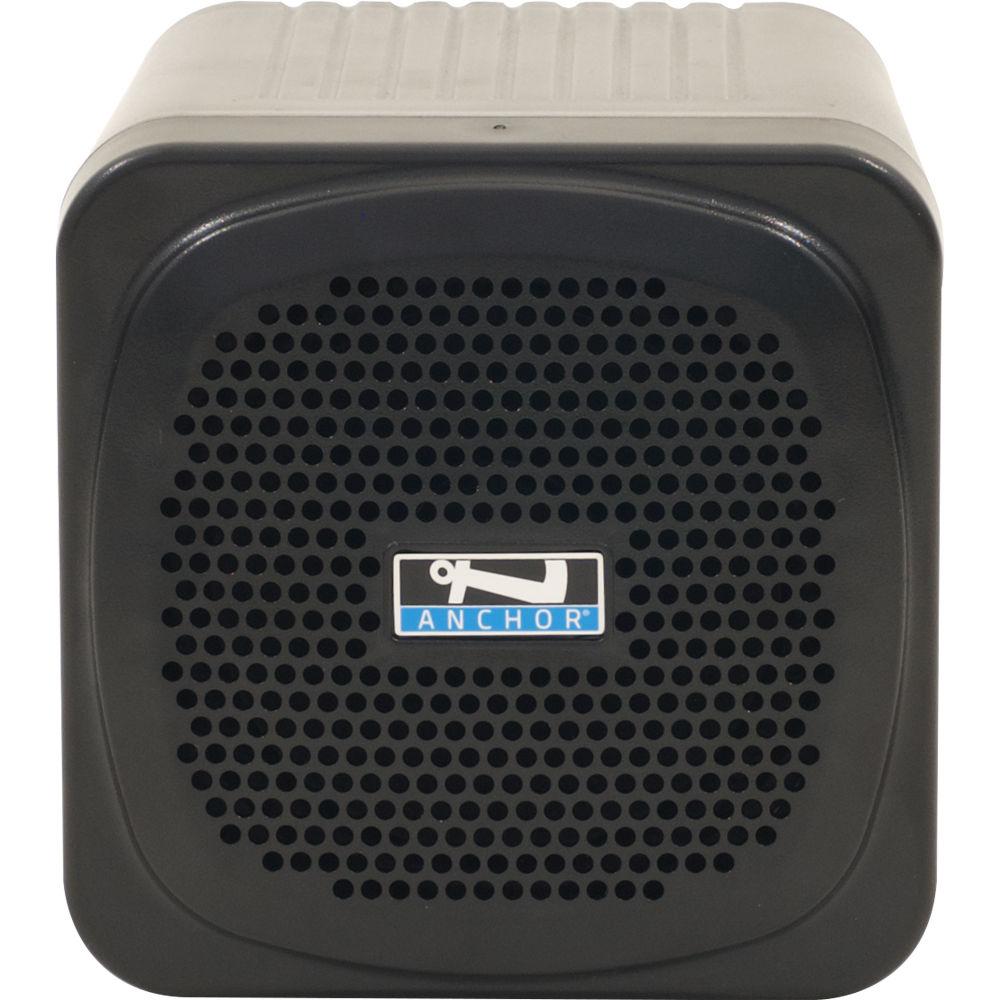

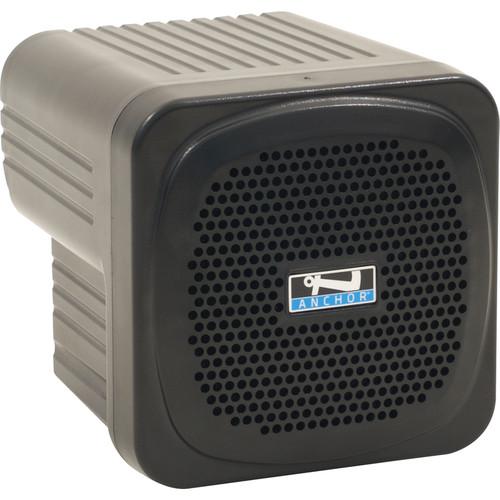

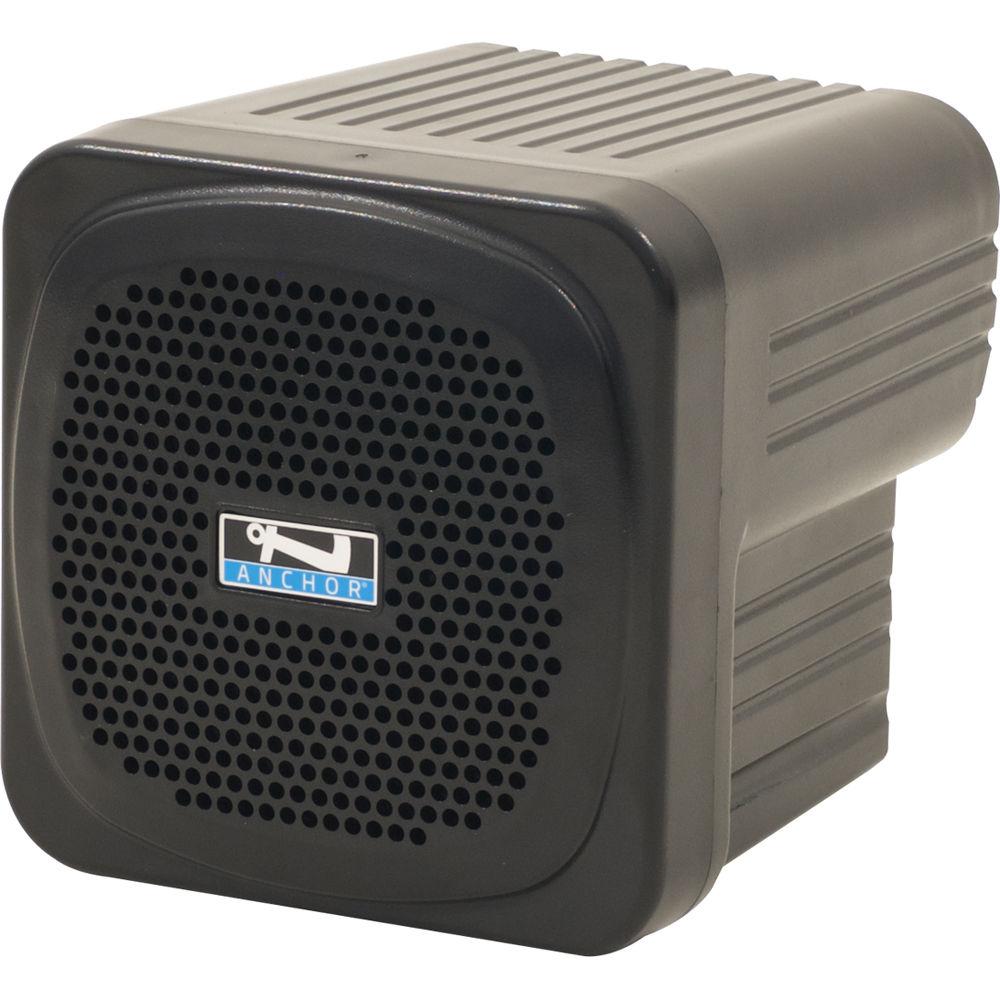

Product description The Anchor Audio AN-MINI is a wearable, compact, and lightweight (2.5 lb) public-address system designed to project clear and intelligible speech or to listen to music. It delivers up to 30W of power with 100 dB of clear sound, reaching crowds up to 100 people for public gathering, tour, emergency-preparedness, or field-trip applications, and more. The AN-MINI is equipped with a 1/4" mic jack that lets you connect a traditional handheld microphone (available separately). It also features a 3.5mm line input for connecting a portable player, instrument, or CD player, and a 3.5mm line output lets you connect an external mixer, recorder, or additional speaker. Use the mic boost to help your voice project farther when addressing a large crowd or speaking in a noisy environment. The AN-MINI is powered via ten AA batteries and operates for up to 12 hours on a full charge. If used as a stationary unit, it can also be powered with the Anchor Audio AC-30 AC adapter (available separately). - Key Features
-
- Portable, public-address system reaches crowds of 100+
- Wearable, compact, and lightweight
- 30W of power for 100 dB of clear sound
- 4.5" woofer with neodymium driver

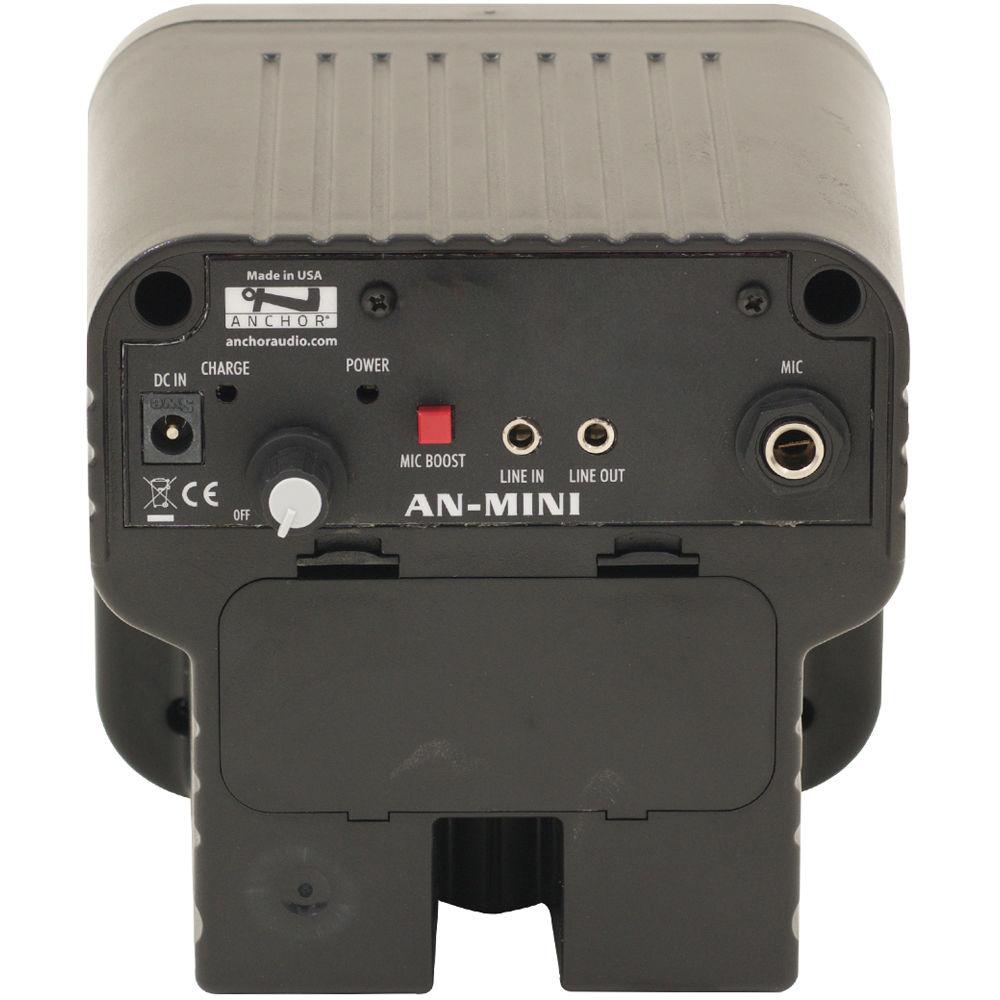

- 1/4" input for wired mic (microphone available separately)
- Mic boost button
- 3.5mm line input for connecting a CD player, MP3 player, or instrument
- 3.5mm line output to send a signal to an external recorder or amplification system
- Listen to an external audio source and microphone simultaneously
- Powered via ten AA batteries or AC-30 AC adapter (available separately)
- Operate 10 to 12 hours on fresh batteries
UPC: 638632141275 In the Box Anchor Audio AN-MINI Personal Portable PA System (Black) Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio AN-MINI Personal Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio AN-MINI BK Specs | Rated Power Output | 30 W, AC/DC | | Maximum SPL | 100 dB, at 3.3' / 1 m (at rated power) | | Frequency Response | 100 Hz to 15 kHz (±3 dB) | | Speaker Type | 4.5" / 11.4 cm neodymium woofer | | Inputs | Microphone: 1/4" / 6.3 mm female, Lo-Z
Line: 1/8" / 3.5 mm female | | Output | Line: 1/8" / 3.5 mm female | | Batteries | 10 x AA alkaline | | Dimensions (H x W x D) | 5.5 x 5.5 x 6" / 14.00 x 14.00 x 15.24 cm | | Weight | 2.50 lb / 1.13 kg | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 9.7 x 9.5 x 8.1" |
