Anchor Audio BEA-TRIPLE-HHH Beacon 2 Triple

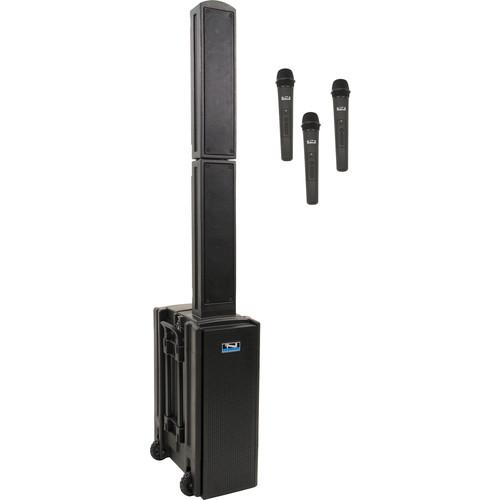

User Manual for Anchor Audio BEA-TRIPLE-HHH Beacon 2 Triple Package Portable Line Array Sound System with Bluetooth, AIR Transmitter, and Three Wireless Handheld Microphone Transmitters

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

• BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to four wireless mics (available separately) via the two included dual wireless microphone receivers. The balanced 1/4" output can be routed to another PA system or an audio recorder. Integrated mixer functions include volume controls and 2-band equalization. The supplied AIR wireless transmitter enables cord-free connection to a compatible companion speaker. Power the Beacon 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and heavy-duty rolling wheels simply transport of the system.
  • 150W of rated output power through eight 4" neodymium speakers and three 8" neodymium woofers
  • 120 dB maximum SPL reaches crowds of up to 2500 people
  • Folds down to 28" high for easy transport and unfolds to 71.5" in seconds for fast setup
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Includes an AIR wireless transmitter for cord-free connection to a companion speaker
  • Connect up to four wireless mics (available separately) via the two included dual wireless microphone receivers
  • Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
  • Nylon microphone storage bag
  • Heavy-duty wheels and carry handle
  • Made in the USA
  UPC: 819941015376
• WH-LINK Wireless Handheld Microphone (1.9 GHz) The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'. Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • Volume and mute control on the microphone
    • Lightweight design
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  UPC: 819941016243

• Limited 6-Year Warranty on Line Array

• Limited 2-Year Warranty on Battery

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers

  Drivers	8 x 4" / 10.2 cm Neodymium speakers 3 x 8" / 20.3 cm Neodymium woofers
  Rated Power Output	150 W (AC mode) 125 W (DC mode)
  Maximum SPL	120 dB at 1 m
  Inputs	2 x XLR/1/4" combo (balanced) 1 x 1/4" TRS balanced 1 x 1/8" / 3.5 mm stereo
  Outputs	1 x 1/4" TRS
  Frequency Response ± 3dB	60 Hz to 15 kHz
  Input Sensitivity	Lo-Z Microphone: -52 dBV (2.5 mVrms) Hi-Z Microphone: -43 dBV (7.5 mVrms) Auxiliary: -14 dBV (200 mVrms) Phantom Power: 36 V
  Input Impedance	Lo-Z: 1 kOhm Hi-Z: 10 kOhms
  Output Impedance	Line: 600 Ohms
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Receiver/Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' (line of sight)
  Phantom Power	12 VDC
  Battery	2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max
  Dimensions (H x W x D)	Closed: 28.0 x 11.0 x 18.5" / 71.1 x 27.9 x 47.0 cm Opened: 71.5 x 11.0 x 18.5" / 181.6 x 27.9 x 47.0 cm
  Weight	43 lb / 19.5 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	32.4 x 21.0 x 15.5"

• WH-LINK Wireless Handheld Microphone (1.9 GHz)

  Frequency Band	1.9 GHz
  Wireless Range	300' / 91 m, line of sight
  Controls	Volume Mute
  Power	2 x AA batteries Operates up to 8 hours

  Box Dimensions (LxWxH)	10.45 x 3.15 x 2.3"
