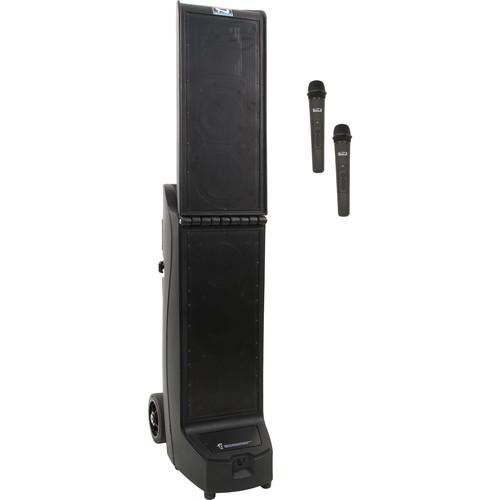

User Manual for Anchor Audio BIG-DUAL-HH Bigfoot 2 Dual Package Portable Line Array Sound System with Bluetooth, AIR Transmitter, and Two Wireless Handheld Microphone Transmitters

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

• BIG2-XU2 Bigfoot 2 Portable Line Array with Bluetooth, AIR Transmitter & Dual Mic Receiver The Anchor Audio BIG2-XU2 is a Bigfoot 2 portable line array with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The balanced 1/4" output can be routed to another PA system or an audio recorder. Integrated mixer functions include volume controls and 2-band equalization. The supplied AIR wireless transmitter enables cord-free connection to a compatible companion speaker. Power the Bigfoot 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and heavy-duty rolling wheels simplify transport of the system.
  • 400W of rated output power through five 8" neodymium woofers and a neodymium compression driver
  • 130 dB maximum SPL reaches crowds of up to 5000 people
  • Designed to cover a football field or large auditorium
  • Folds down for easy transport and unfolds in seconds for fast setup
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Includes an AIR wireless transmitter for cord-free connection to a companion speaker
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
  • Onboard microphone storage bag
  • Heavy-duty wheels and carry handle
  • Made in the USA
  UPC: 819941015499
• WH-LINK Wireless Handheld Microphone (1.9 GHz) The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'. Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • Volume and mute control on the microphone
    • Lightweight design
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  UPC: 819941016243

• Limited 6-Year Warranty on Line Array

• Limited 2-Year Warranty on Battery

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BIG2-XU2 Bigfoot 2 Portable Line Array with Bluetooth, AIR Transmitter & Dual Mic Receiver

  LF Driver	5 x 8" / 20.3 cm Neodymium woofers
  HF Driver	1 x Neodymium compression driver
  Rated Power Output	400 W (AC/DC mode)
  Maximum SPL	130 dB at 1 m
  Inputs	2 x XLR/1/4" combo (balanced) 1 x 1/4" TRS balanced 1 x 1/8" / 3.5 mm stereo
  Outputs	1 x 1/4" TRS
  Frequency Response ± 3dB	100 Hz to 15 kHz
  Input Sensitivity	Lo-Z Microphone: -52 dBV (2.5 mVrms) Hi-Z Microphone: -43 dBV (7.5 mVrms) Auxiliary: -14 dBV (200 mVrms)
  Input Impedance	Lo-Z: 1 kOhm Hi-Z: 10 kOhms
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Receiver/Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' (line of sight)
  Phantom Power	12 VDC
  Battery	3 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 300 W max
  Dimensions (H x W x D)	Closed: 42.5 x 14.0 x 23.0" / 108.0 x 35.6 x 58.4 cm Opened: 68.5 x 14.0 x 23.0" / 174.0 x 35.6 x 58.4 cm
  Weight	63.5 lb / 28.8 kg
  Country of Manufacture	United States of America

• WH-LINK Wireless Handheld Microphone (1.9 GHz)

  Frequency Band	1.9 GHz
  Wireless Range	300' / 91 m, line of sight
  Controls	Volume Mute
  Power	2 x AA batteries Operates up to 8 hours

  Box Dimensions (LxWxH)	10.45 x 3.15 x 2.3"
