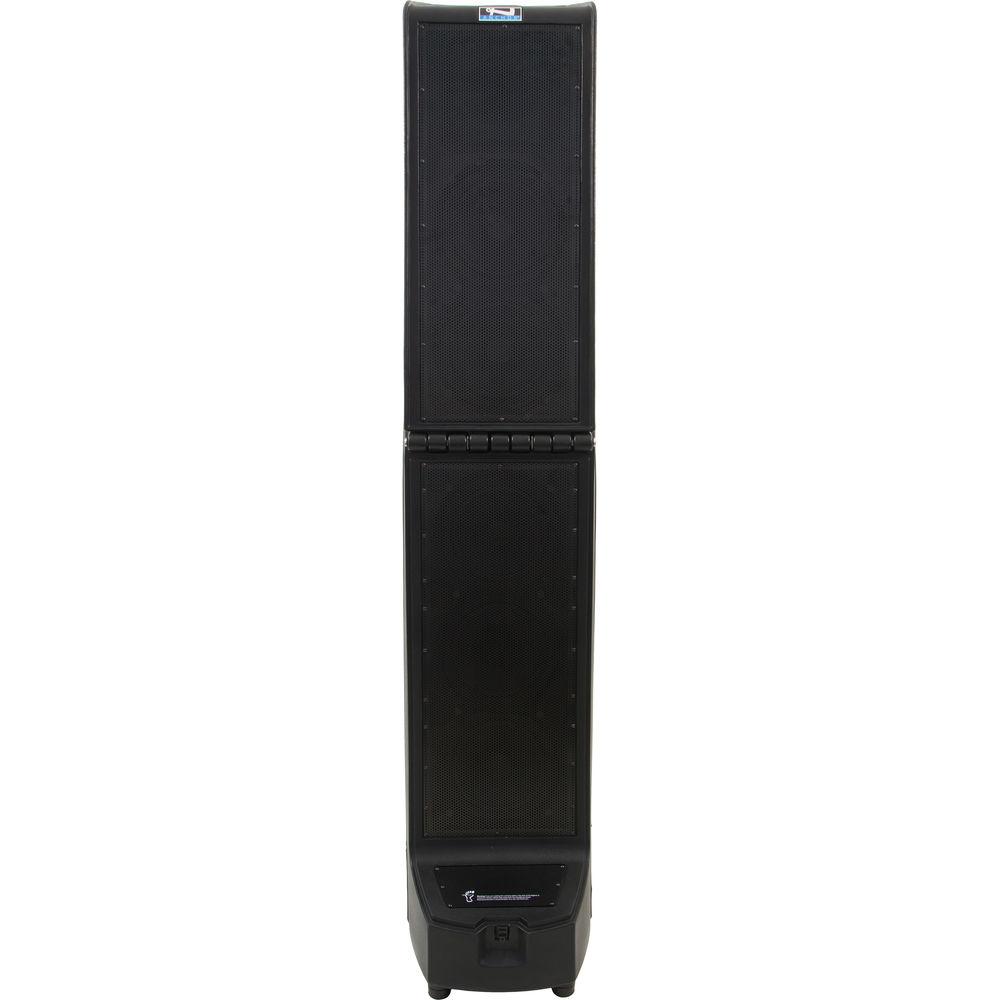

User Manual for Anchor Audio BIG2-U4 Bigfoot 2 Portable Line Array with Bluetooth & Two Dual Mic Receivers Click to enlarge the picture
Contents of the user manual for the Anchor Audio BIG2-U4 Bigfoot 2 Portable
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
 |
User manual for the Anchor Audio BIG2-U4 Bigfoot 2 Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio BIG2-U4 is a Bigfoot 2 portable line array with Bluetooth and two dual wireless microphone receivers. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to four wireless mics (available separately) via the two included dual wireless microphone receivers. The balanced 1/4" output can be routed to another PA system or an audio recorder. Integrated mixer functions include volume controls and 2-band equalization. Power the Bigfoot 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and heavy-duty rolling wheels simplify transport of the system. - 400W of rated output power through five 8" neodymium woofers and a neodymium compression driver
- 130 dB maximum SPL reaches crowds of up to 5000 people
- Designed to cover a football field or large auditorium

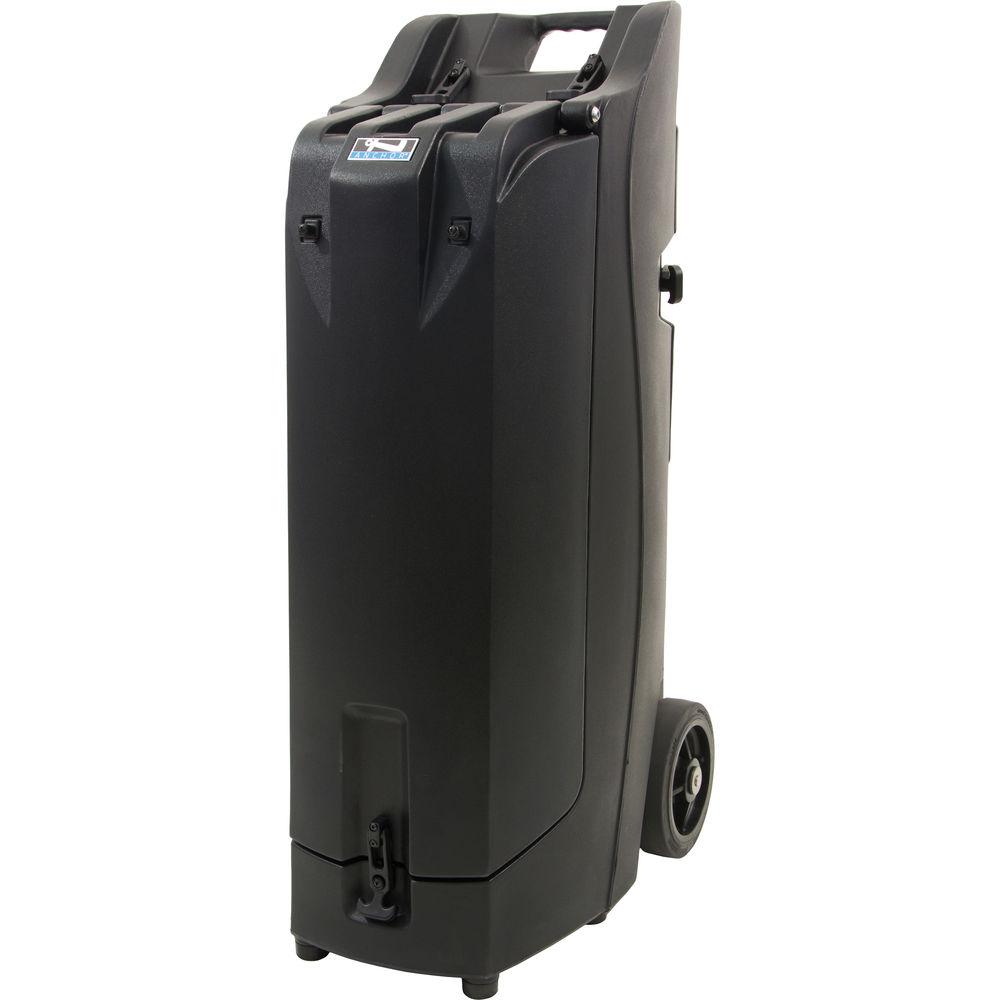

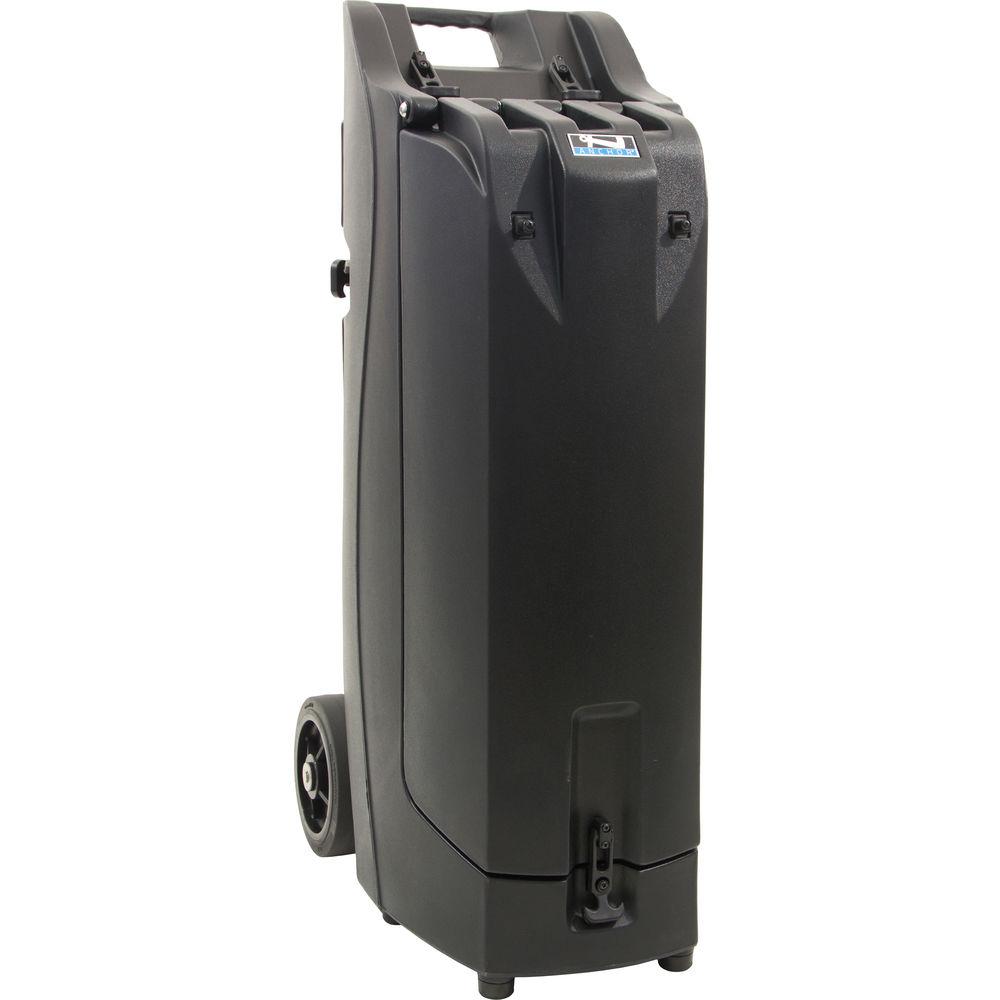

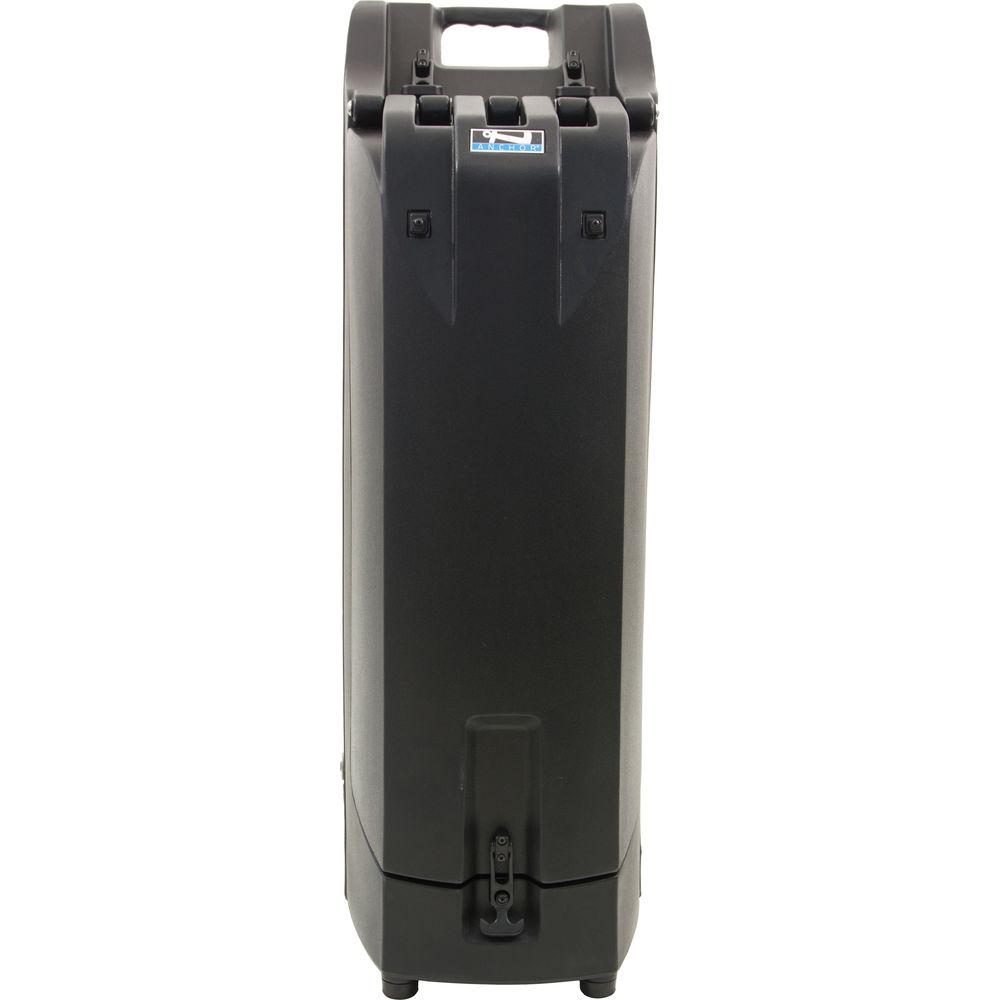

- Folds down for easy transport and unfolds in seconds for fast setup
- Built-in Class-1 Bluetooth for streaming music from a mobile device
- Compatible with Anchor AIR transmitters and receivers
- Connect up to four wireless mics (available separately) via the two included dual wireless microphone receivers
- Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
- Onboard microphone storage bag
- Heavy-duty wheels and carry handle
UPC: 819941015475 In the Box Anchor Audio BIG2-U4 Bigfoot 2 Portable Line Array with Bluetooth & Two Dual Mic Receivers Limited 6-Year Warranty on Line Array Limited 2-Year Warranty on Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio BIG2-U4 Bigfoot 2 Portable Line Array with Bluetooth & Two Dual Mic Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

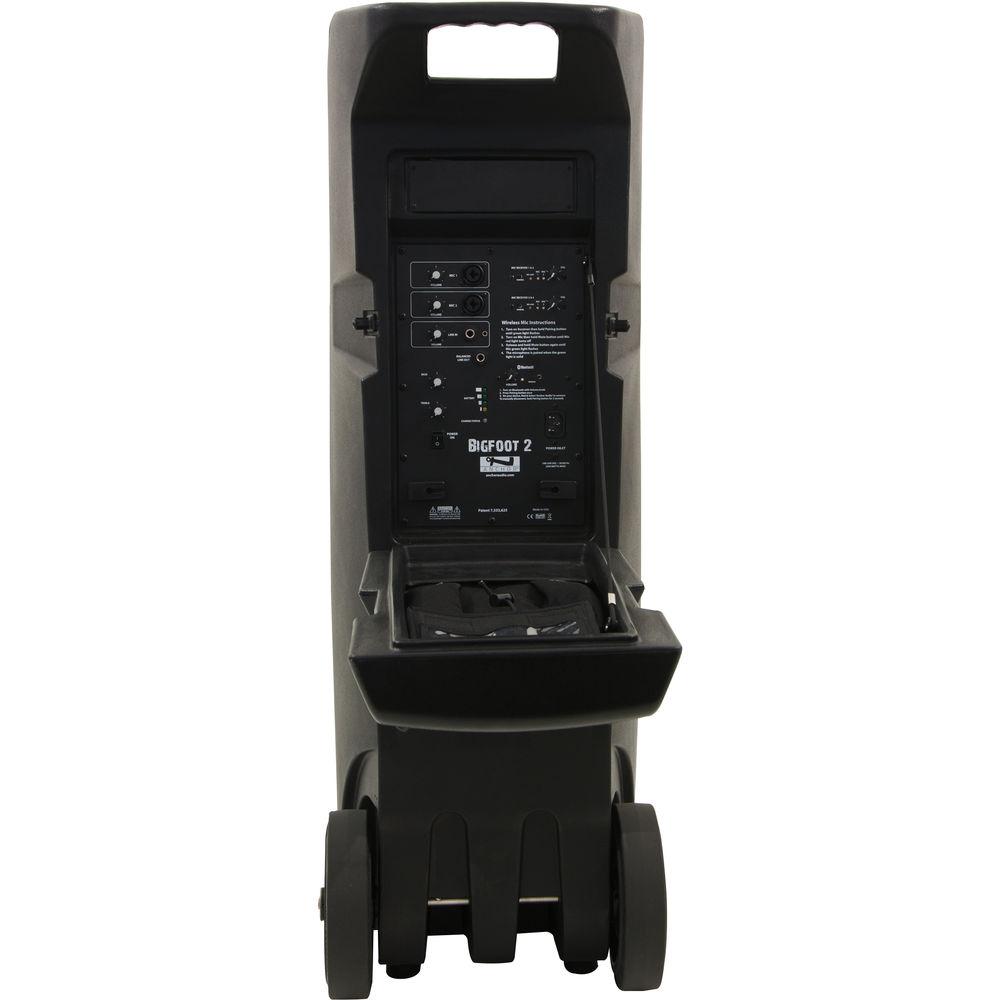

Technical parametersAnchor Audio Bigfoot Specs | LF Driver | 5 x 8" / 20.3 cm Neodymium woofers | | HF Driver | 1 x Neodymium compression driver | | Rated Power Output | 400 W (AC/DC mode) | | Maximum SPL | 130 dB at 1 m | | Inputs | 2 x XLR/1/4" combo (balanced)
1 x 1/4" TRS balanced
1 x 1/8" / 3.5 mm stereo | | Outputs | 1 x 1/4" TRS | | Frequency Response ± 3dB | 100 Hz to 15 kHz | | Input Sensitivity | Lo-Z Microphone: -52 dBV (2.5 mVrms)
Hi-Z Microphone: -43 dBV (7.5 mVrms)
Auxiliary: -14 dBV (200 mVrms) | | Input Impedance | Lo-Z: 1 kOhm
Hi-Z: 10 kOhms | | Bluetooth | Class-1 | | Wireless Frequency | Wireless Microphone: 1.9 GHz DECT
AIR Receiver/Transmitter: 902 to 928 MHz | | Wireless Range | Up to 300' (line of sight) | | Phantom Power | 12 VDC | | Battery | 3 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah | | Battery Life (approx.) | 6 to 8 hours | | Power Requirements | Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 300 W max | | Dimensions (H x W x D) | Closed: 42.5 x 14.0 x 23.0" / 108.0 x 35.6 x 58.4 cm
Opened: 68.5 x 14.0 x 23.0" / 174.0 x 35.6 x 58.4 cm | | Weight | 63.5 lb / 28.8 kg | | Country of Manufacture | United States of America |
