User Manual for Anchor Audio GG-8000CU2 Go Getter Portable Sound System with Bluetooth, CD MP3 Combo Player, and 2 Wireless Receivers Click to enlarge the picture
Contents of the user manual for the Anchor Audio GG-8000CU2 Go Getter Portable
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
 |
User manual for the Anchor Audio GG-8000CU2 Go Getter Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More - Anchor Audio Go Getter 8000 Portable Sound System - In less than 2 minutes

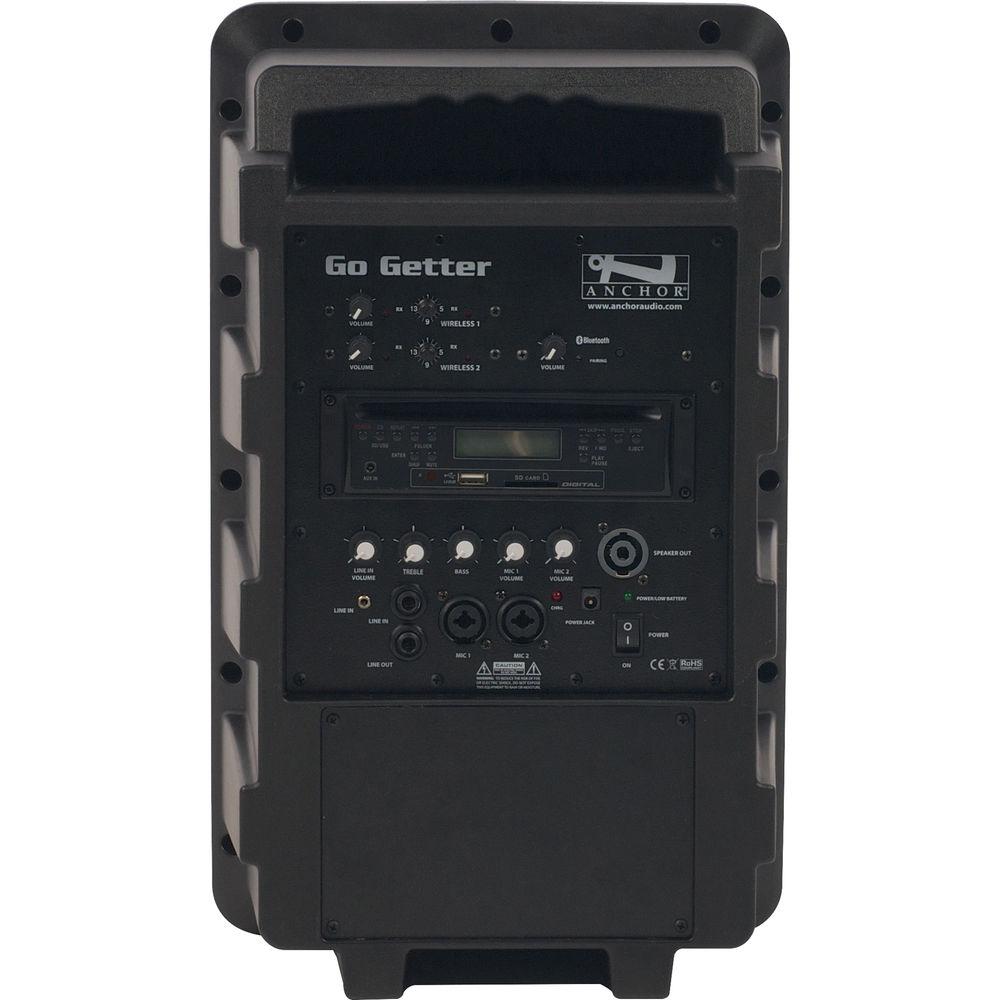

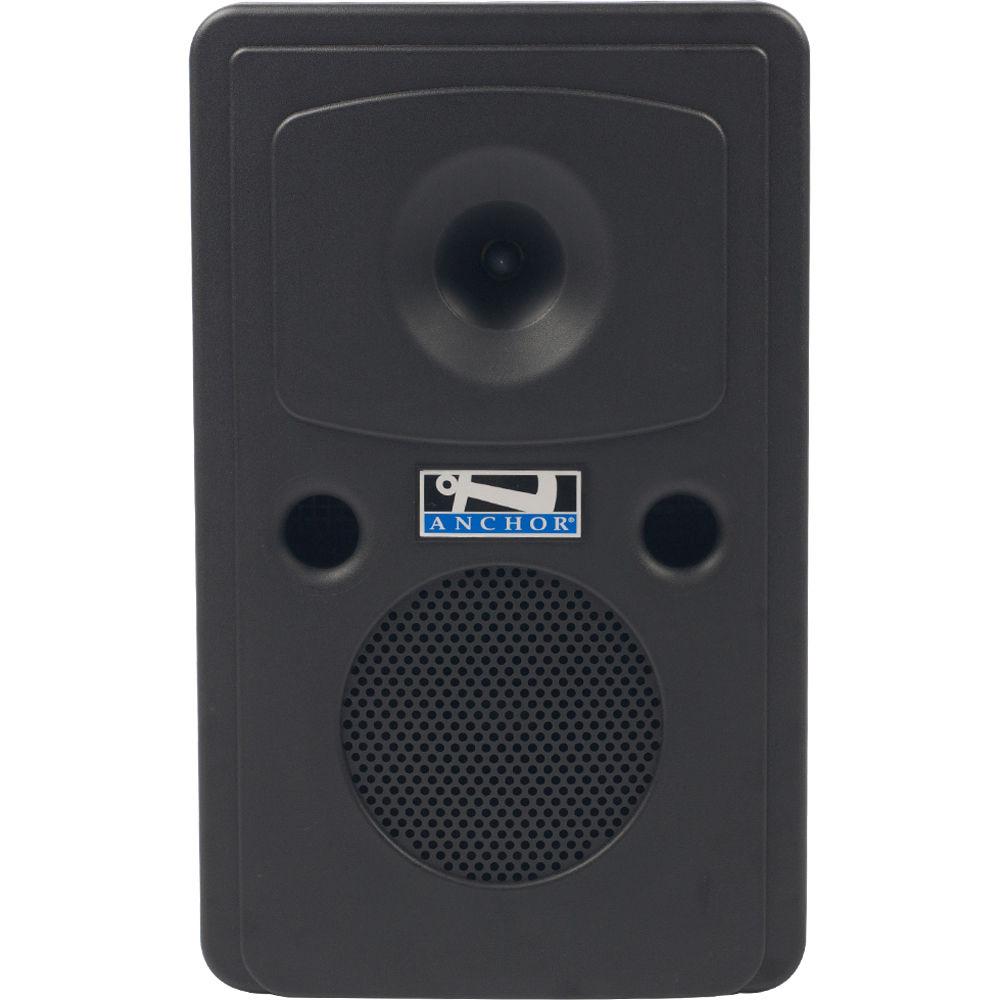

Well suited for schools, corporate training, fitness centers, houses of worship, and public speaking engagements up to 500 people, the Anchor Audio GG-8000CU2 Go Getter is a battery powered, portable PA sound system. The system utilizes a high-output horn tweeter and a 6.5" woven fiber woofer, which combine to offer a frequency response of 60 Hz to 16 kHz with an SPL of 109 dB. At 23 lb, it is portable and easy to set up on an optional speaker stand and can be used indoors or outdoors. The portable Go Getter system features AC/DC operation and includes an integrated rechargeable battery that can operate up to 8 hours on a full charge (at medium volume). The speaker comes with built-in Bluetooth with a range of 100' (line of sight) and a dual UHF wireless receiver with 16 user-selectable channels. It also features a CD/MP3 combo player that supports WMA and MP3 files, as well as CD, CD-R, CD-RW, and MP3 disks. The back panel features two universal microphone inputs, and an LED battery display that indicates charging and low battery. Additionally, there is a SpeakON speaker output that can power an optional Go Getter passive companion speaker. -
- Reaches crowds of 500+
- 109 dB clear sound
- 75W AC mode / 50W DC mode
- Two built-in wireless receivers
- Standard built-in Bluetooth
- Built-in CD/MP3 combo player
- Two universal microphone jack inputs
- 3.5mm Aux line input
- Built-in rechargeable battery operates 6 to 8 hours on a single charge
- High-output horn tweeter
- 6.5" woven fiber woofer
- External speaker output powers optional Go Getter unpowered companion speaker
- Made in the USA
- Limited 6-year warranty
In the Box Anchor Audio GG-8000CU2 Go Getter Portable Sound System with Bluetooth, CD/MP3 Combo Player, and 2 Wireless Receivers Power Cord Remote Control for CD/MP3 Combo Player Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio GG-8000CU2 Go Getter Portable Sound System with Bluetooth, CD MP3 Combo Player, and 2 Wireless Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio GG-8000CU2 Specs | Rated Power Output | AC Mode: 75 W
DC Mode: 50 W | | Max SPL Level | 109 dB @ 1 m | | Frequency Response | 60 Hz to 16 kHz | | Microphone Input | Two Combo: Lo-Z (1 kOhms), balanced, XLR
12 VDC condenser microphone phantom power
Hi-Z (10 kOhms), unbalanced 1/4" phone | | Auxiliary | Line Input: Hi-Z (10 kOhms), unbalanced, 1/8" / 3.5 mm and 1/4" / 6.35 mm | | Line Output | Post Fader: Lo-Z, buffered, 1/4" / 6.35 mm balanced | | Speaker Output | 4-pole Neutrik speakON jack | | Sensitivity for Rated Output | Line: -8.4 dBV (380 mVrms)
Mic (Unbalanced & Balanced): -49 dBV (3.63 mVrms) | | Bluetooth | Version: 3.0
Range: 100' (30 m), Class 1
RF Gain Output: +18 dB PA
RF Gain Input: +12 dB LNA
Data Rate: Up to 3 Mb/s
Bluetooth connection and behavior may depend on your individual device settings and capabilities. All testing was done using an Apple iPhone | | MP3 Player | Supported File Types: WMA, MP3
Supported Media Type: CD, CD-R, CD-RW, and MP3 | | Power | 90 to 264 VAC, 50/60 Hz | | Battery | 1 x 12 VDC sealed lead acid rechargeable, 9.0 AH
Full Recharge: 7 hours approximately | | Approvals | CE, RoHS | | Dimensions (H x W x D) | 18.0 x 11.0 x 9.0" / 457.2 x 279.4 x 228.6 mm | | Weight | 23.0 lb / 10.4 kg | | | | Package Weight | 26.35 lb | | Box Dimensions (LxWxH) | 23.1 x 13.4 x 13.0" |
