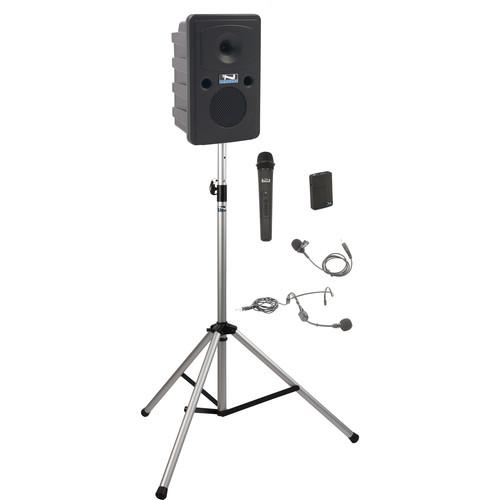

User Manual for Anchor Audio GG-BP2-HB Go Getter Portable Sound System Basic Package 1 with Bodypack Transmitter & Wireless Handheld Microphone and Speaker Stand Click to enlarge the picture
Contents of the user manual for the Anchor Audio GG-BP2-HB Go Getter Portable
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio GG-BP2-HB Go Getter Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio GG-BP2-HB Go Getter Portable Sound System Basic Package 1 includes a GG2-U2 Go Getter Bluetooth portable sound system with a dual-channel wireless receiver, a WB-LINK wireless bodypack transmitter, an LM-LINK lapel microphone, an HBM-LINK headset microphone, a WH-LINK wireless handheld microphone, and an SS-550 heavy-duty speaker stand. The system is ideal for school functions, corporate training, fitness centers, houses of worship, and more. The GG2-U2 Go Getter speaker delivers 109 dB of clear sound. It features easy-to-use controls and is suitable for both voice and background music. At 15.5 lb, it is simple to setup on the included SS-550 speaker stand and can be used indoors or outdoors. This portable sound system with a dual-channel wireless receiver can operate up to 8 hours on a full charge (at medium volume) with the built-in rechargeable battery. The GG2-U2 Go Getter has a Bluetooth range of 100' (line of sight) and is built with a 6.5" woven fiber woofer and a high-output horn tweeter. In addition, the back panel features two universal microphone inputs, and an LED battery display that indicates charging and low battery statuses. A speaker out connector allows you to power an optional companion speaker (available separately) to increase your sound coverage. The WB-LINK bodypack transmitter and WH-LINK wireless handheld microphone operate in the 1.9 GHz frequency with automatic channel switching and up to 300' of transmission range. They are both equipped with volume and mute controls. The bodypack transmitter runs on two AA batteries for approximately 20 hours, while the wireless handheld mic runs on two AA batteries for approximately 6 to 8 hours. The LM-LINK lapel mic and HBM-LINK headset mic both feature a cardioid polar pattern to minimize unwanted feedback when used near the speaker. - GG2-U2 Go Getter Portable Sound System
-
- 109 dB of clear sound
- One dual-channel receiver with automatic channel switching
- AC/DC operation
- 110/220 VAC power supply
- User-replaceable, lithium-ion rechargeable battery
- 6 to 8 hours of continuous music in DC mode at medium volume level (2 to 4 hours at full volume or longer for speech only)
- LED displays charging and low-battery warning
- 1.9 GHz wireless frequency range
- Comes with standard built-in Bluetooth v3.0 with a range of 100' (line of sight)
- Wireless data rate of up to 3 Mb/s
- Lightweight at 15.5 lb
- Two microphone combo input jacks
- Recessed back panel protects knobs and ports
- 6.5" woven fiber woofer and high-output horn tweeter
- Limiter circuitry reduces distortion & increases intelligibility
- Durable injection-molded polypropylene case
- UV treated / fade resistant case
- External speaker output powers a companion speaker (available separately)
- Made in the USA
- WB-LINK Wireless Bodypack Transmitter
-
- Up to 300' transmission range
- Automatic channel switching
- 1.9 GHz wireless frequency range
- Volume and mute controls
- Mic/Line switch for transmission of mic or line level signals such as CD players or mixers
- Tone Key Noise Suppression uses microphone ID to lock out interference
- Includes belt clip
- LM-LINK Lapel Microphone
-
- Cardioid polar pattern results in high-gain-before-feedback, ideal for use near monitor speakers
- Includes clip and foam windscreen
- HBM-LINK Headset Microphone
-
- Cardioid polar pattern results in high-gain-before-feedback, ideal for use near monitor speakers
- Mic is stationed on a flexible boom for easy positioning and optimum pickup
- The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters
- WH-LINK Wireless Handheld Microphone
-
- Up to 300' transmission range
- Automatic channel switching
- 1.9 GHz wireless frequency range
- Volume and mute controls
- Powered via two AA batteries
- Operates approximately 6 to 8 hours with fresh batteries
In the Box Anchor Audio GG-BP2-HB Go Getter Portable Sound System Basic Package 1 with Bodypack Transmitter & Wireless Handheld Microphone and Speaker Stand (1 x Lavalier Mic, 1 x Headset Mic, 1.9 GHz) GG2-U2 Go Getter Bluetooth Portable Sound System with Dual-Channel Receiver (1.9 GHz) WB-LINK Wireless Bodypack Transmitter Transmitter Belt Clip LM-LINK Wireless Lapel Microphone with Mic Clip and Foam Windscreen HBM-LINK Wireless Headset Microphone WH-LINK Wireless Handheld Microphone SS-550 Heavy-Duty Speaker Stand Limited 6-Year Warranty Limited 2-Year Warranty for Bodypack Transmitter, Handheld Microphone, Lapel Mic, Headset Mic, Receiver, Stand, and Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio GG-BP2-HB Go Getter Portable Sound System Basic Package 1 with Bodypack Transmitter & Wireless Handheld Microphone and Speaker Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Go Getter Specs | | | Rated Power Output | 75 W AC mode / 50 W DC mode | | Rated Power | Maximum SPL at 109 dB at 1 m | | Frequency Response | 60 Hz to 16 kHz | | AC Power Requirements | 90 to 264 VAC, 50/60 Hz | | Battery | Lithium-ion rechargeable battery, user replaceable | | Battery Life | 6 to 8 hours on a full charge
2000 charging cycles | | Microphone Input | Two Combos:
Lo-Z (1 kOhm), balanced, XLR
12 VDC condenser microphone phantom power
Hi-Z (10 kOhms), unbalanced 1/4" / 6.3 mm | | Auxiliary | Line Input: Hi-Z (10 kOhms), unbalanced 1/4" / 6.3 mm, 1/8" / 3.5 mm | | Line Output | Post Fader: Lo-Z, buffered, 1/4" / 6.3 mm, unbalanced/balanced | | Speaker Output | 4-pole Neutrik speakON jack | | Approvals | CE, RoHS | | Dimensions (H x W x D) | 18 x 11 x 9" / 46 x 28 x 23 cm | | Weight | 15.5 lb / 7.0 kg | | | | Version | 3.0 | | Range | 100' / 30 m, Class 1 Note: Bluetooth connection and behavior may depend on your individual device settings and capabilities. All testing was done using an Apple iPhone | | RF Output | Gain: +18 dB PA | | RF Input | Gain: +12 dB LNA | | Data Rate | 3 Mb/s | | | | Type | Dual-channel | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz | | | | Frequency Range | 1.9 GHz | | Frequencies | Automatic channel switching | | Range | 300' / 91.44 m | | Input Connector | 4-pin mini XLR male | | Battery Type/Approx. Life | 2 x 1.5 V AA (dry or rechargeable), 20 hours | | Mute Switch | Yes | | Volume Control | Yes | | Antenna type | Detachable whip | | Display | No | | Dimensions (HxWxD) | 3.86 x 2.6 x 1.02" / 98 x 66 x 26 mm | | Weight | 7.2 oz / 204 g | | | | Lapel Microphone | Name: LM-LINK
Polar Pattern: Cardioid
Connector: 4-pin mini XLR, female | | Headset Microphone | Name: HBM-LINK
Transducer: Electret condenser
Polar Pattern: Cardioid
Frequency Response: 30 Hz to 15 kHz
Dynamic Range Sensitivity: -48 dB at 1 kHz, typical
Power Requirements: 1 to 10 VDC
Output Impedance: Lo-Z
Connector: TA4F (mini XLR female)
Cable: 36"
Weight: 0.07 oz | | | | Frequency Range | 1.9 GHz | | Frequencies | Automatic channel switching | | Range | 300' / 91.44 m | | Battery Type/Approx. Life | 2 x AA batteries, 6 to 8 hours | | Mute Switch | Yes | | Volume Control | Yes | | | | Load Capacity | 75 lb / 34 kg | | Height Range | 38 to 70" / 71 to 178 cm | | | | Package Weight | 37.1 lb | | Box Dimensions (LxWxH) | 47.0 x 22.5 x 14.0" |
