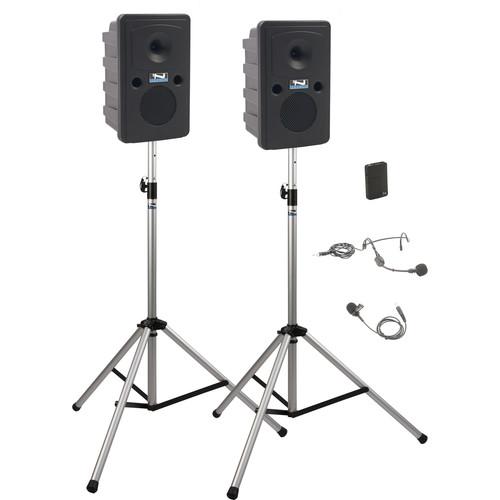

User Manual for Anchor Audio GG-DP1-AIR-B Go Getter Portable Sound System Deluxe AIR Package 1 with One Wireless Bodypack Transmitter and Wireless Companion Speaker & Speaker Stands Click to enlarge the picture
Contents of the user manual for the Anchor Audio GG-DP1-AIR-B Go Getter Portable
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
|
User manual for the Anchor Audio GG-DP1-AIR-B Go Getter Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio GG-DP1-AIR-B Go Getter Portable Sound System Deluxe AIR Package 1 includes a GG2-XU2 Go Getter Bluetooth portable sound system with an AIR wireless companion speaker transmitter and a dual-channel wireless receiver, a GG-AIR battery-powered wireless companion speaker, a WB-LINK wireless bodypack transmitter, an LM-LINK lapel microphone, an HBM-LINK headset microphone, and two SS-550 heavy-duty speaker stands. The system is ideal for large school functions, corporate training, fitness centers, houses of worship, and more. The GG2-XU2 Go Getter speaker delivers 109 dB of clear sound. It features easy-to-use controls and is suitable for both voice and background music. At 19 lb, it is simple to setup on the included SS-550 speaker stand and can be used indoors or outdoors. This portable sound system with a dual-channel wireless receiver can operate up to 8 hours on a full charge (at medium volume) with the built-in rechargeable battery. The Go Getter has a Bluetooth range of 100' (line of sight) and is built with a 6.5" woven fiber woofer and a high-output horn tweeter. In addition, the back panel features two universal microphone inputs, and an LED battery display that indicates charging and low battery statuses. The built-in AIR wireless companion transmitter enables you to wirelessly connect to the included GG-AIR wireless companion speaker to increase the range of your sound coverage. The companion speaker mounts on the second included SS-550 stand and can be position at a distance up to 300' from the Go Getter speaker. The WB-LINK bodypack transmitter operates in the 1.9 GHz frequency range with automatic channel switching and up to 300' of transmission reach. It features volume and mute controls and runs on two AA batteries for approximately 20 hours. The LM-LINK lapel mic and HBM-LINK headset mic both feature a cardioid polar pattern to minimize unwanted feedback when used near the speakers. - GG2-XU2 Go Getter Portable Sound System with AIR Transmitter
-
- One 6.5" woven fiber woofer
- One high-output horn tweeter
- Reaches crowds up to 500+
- 109 dB of clear sound
- 75W AC mode / 50W DC mode
- One built-in AIR wireless companion transmitter
- One dual-channel receiver with automatic channel switching
- 1.9 GHz wireless frequency range
- Wirelessly connects to multiple Go Getter AIR battery-powered companion speakers (available separately)
- Easily connects to Assistive Listening
- Standard built-in Bluetooth 3.0 module with high-speed wireless data rate of up to 3 Mb/s
- Two universal microphone input jacks
- 3.5mm aux line input
- User-replaceable, lithium-ion rechargeable battery provides up to 8 hours of operation on a full charge
- External speaker output powers an optional Go Getter unpowered or AIR companion speakers
- Alternate wired and wireless mode
- ADA-compliant
- Made in the USA
- GG-AIR Battery-Powered Wireless Companion Speaker
-
- Pairs with an Anchor Audio GG2 or GG-X Go Getter speaker (available separately)
- High maximum SPL of 109 dB
- 75W output when operated on AC power, 50W output on DC power
- Selectable wired or wireless mode
- Built-in AIR wireless receiver and dual external antennas for reception of wireless signal from a Go Getter AIR transmitter
- Wireless range up to 300'
- Runs on user-changeable, rechargeable battery or external power supply
- Made in the USA
- WB-LINK Wireless Bodypack Transmitter
-
- Up to 300' transmission range
- Automatic channel switching
- 1.9 GHz wireless frequency range
- Volume and mute controls
- Mic/Line switch for transmission of mic or line level signals such as CD players or mixers
- Tone Key Noise Suppression uses microphone ID to lock out interference
- Includes belt clip
- LM-LINK Lapel Microphone
-
- Cardioid polar pattern results in high-gain-before-feedback, ideal for use near monitor speakers
- Includes clip and foam windscreen
- HBM-LINK Headset Microphone
-
- Cardioid polar pattern results in high-gain-before-feedback, ideal for use near monitor speakers
- Mic is stationed on a flexible boom for easy positioning and optimum pickup
- The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters
In the Box Anchor Audio GG-DP1-AIR-B Go Getter Portable Sound System Deluxe AIR Package 1 with One Wireless Bodypack Transmitter and Wireless Companion Speaker & Speaker Stands (1 x Lavalier Mic, 1 x Headset Mic, 1.9 GHz) GG2-XU2 Go Getter Portable Sound System with Built-In Bluetooth, AIR Wireless Companion Transmitter, and Dual-Channel Receiver (1.9 GHz) rtyuawfrfbudfeu WB-LINK Wireless Bodypack Transmitter Transmitter Belt Clip LM-LINK Wireless Lapel Microphone with Mic Clip and Foam Windscreen HBM-LINK Wireless Headset Microphone GG-AIR Battery-Powered Wireless Companion Speaker 2 x SS-550 Heavy-Duty Speaker Stand Limited 6-Year Warranty Limited 2-Year Warranty for Transmitters, Microphones, Receiver, Stands, and Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio GG-DP1-AIR-B Go Getter Portable Sound System Deluxe AIR Package 1 with One Wireless Bodypack Transmitter and Wireless Companion Speaker & Speaker Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Go Getter Specs | | | Rated Power Output | 75 W AC mode / 50 W DC mode | | Maximum SPL | 109 dB at 0.3' / 1 m, rated power | | Battery | Lithium-ion rechargeable battery, user replaceable | | Battery Life | 6 to 8 hours on a full charge
2000 charging cycles | | AIR Transmitter | Frequency Range: 902 to 928 MHz
Range: 300' / 91.4 m, line of sight | | Mic Input | Lo-Z (1 kOhm), balanced, XLR
12 VDC condenser microphone (phantom) power
Hi-Z (10 kOhms) unbalanced, 1/4" phone | | Line In | 1/4" / 6.3 mm balanced, 1/8" / 3.5 mm stereo | | Bluetooth | Version 3.0
Class 1 radio
Range: 100' / 30.5 m, line of sight
+12 dB LNA input RF gain
+18 dB PA output RF gain
High-speed wireless data rate up to 3 Mb/s
Digital and analog stereo input and output | | Line Output | Isolated, 600 Ohms, 1/4" phone (post fader) | | Speaker Output | 4-pole Neutrik speakON jack | | DC Power Requirements | 19 VDC, 60 W maximum | | Dimensions (H x W x D) | 23 x 14 x 12" / 58.4 x 35.6 x 30.5 cm | | Weight | 19 lb / 8.6 kg | | | | LF Driver | 1 x 6.5" / 16.5 cm woven fiber woofer | | HF Driver | 1 x high-output horn tweeter | | Amplifier Power | 75 W (on AC power)
50 W (on DC power) | | Input | 1 x Neutrik 4-pole speakON | | Wireless Frequency Range | 902 to 928 MHz | | Wireless Range | Up to 300' / 91.4 m (line of sight) | | Maximum SPL | 109 dB at 1 m | | Battery | 1 x 12 V, 9 Ah SLA | | Battery Life | Approximately 6 to 8 hours | | Charging Time | Approximately 7 hours | | Carrying Options | Built-in handle | | Power Requirement | Built-in rechargeable batteries or 19 VDC, 60 W maximum power supply | | Dimensions (H x W x D) | 18.0 x 10.0 x 11.5" / 45.7 x 25.4 x 29.2 cm | | Weight | 19 lb / 8.6 kg | | Country of Manufacture | United States of America | | | | Type | Dual-channel | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz | | | | Frequency Range | 1.9 GHz | | Frequencies | Automatic channel switching | | Range | 300' / 91.44 m | | Input Connector | 4-pin mini XLR male | | Battery Type/Approx. Life | 2 x 1.5 V AA (dry or rechargeable), 20 hours | | Mute Switch | Yes | | Volume Control | Yes | | Antenna Type | Detachable whip | | Display | No | | Dimensions (HxWxD) | 3.86 x 2.6 x 1.02" / 98 x 66 x 26 mm | | Weight | 7.2 oz / 204 g | | | | Lapel Microphone | Name: LM-LINK
Polar Pattern: Cardioid
Connector: 4-pin mini XLR, female | | Headset Microphone | Name: HBM-LINK
Transducer: Electret condenser
Polar Pattern: Cardioid
Frequency Response: 30 Hz to 15 kHz
Dynamic Range Sensitivity: -48 dB at 1 kHz, typical
Power Requirements: 1 to 10 VDC
Output Impedance: Lo-Z
Connector: TA4F (mini XLR female)
Cable: 36"
Weight: 0.07 oz | | | | Load Capacity | 75 lb / 34 kg | | Height Range | 38 to 70" / 71 to 178 cm |
