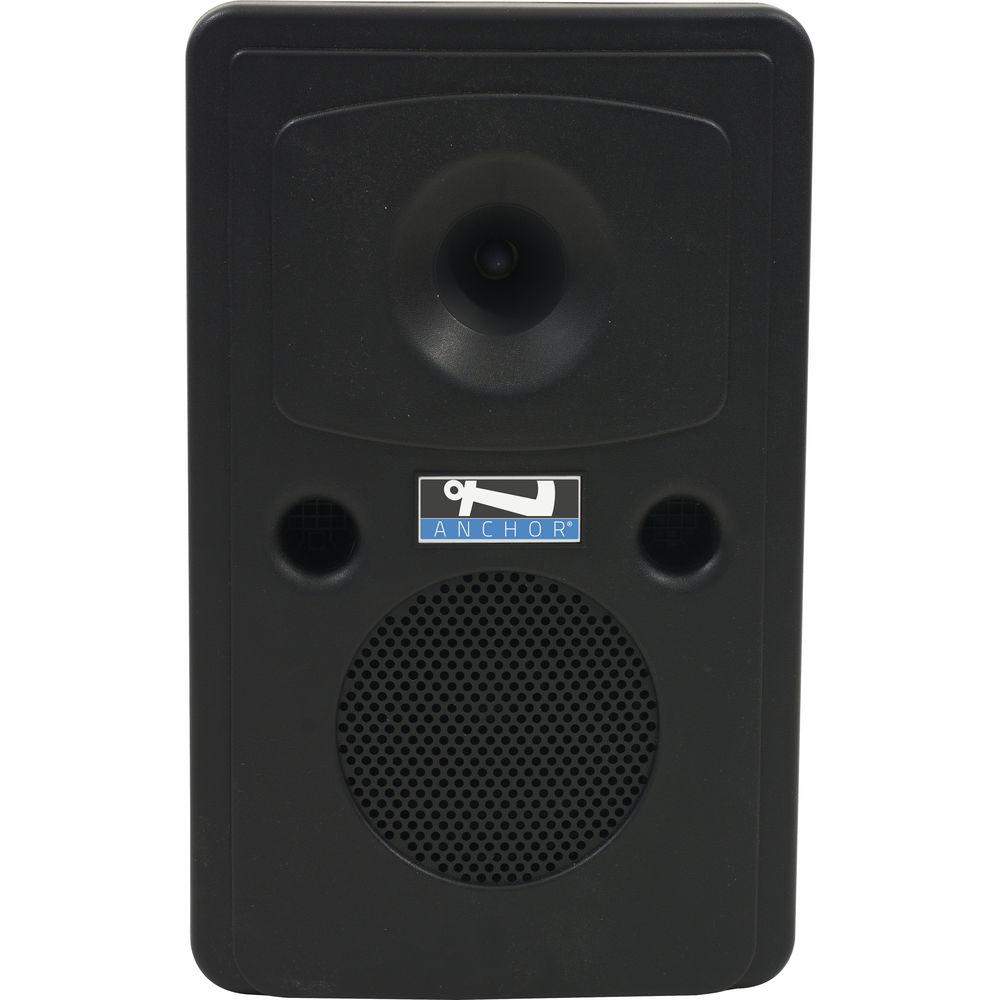

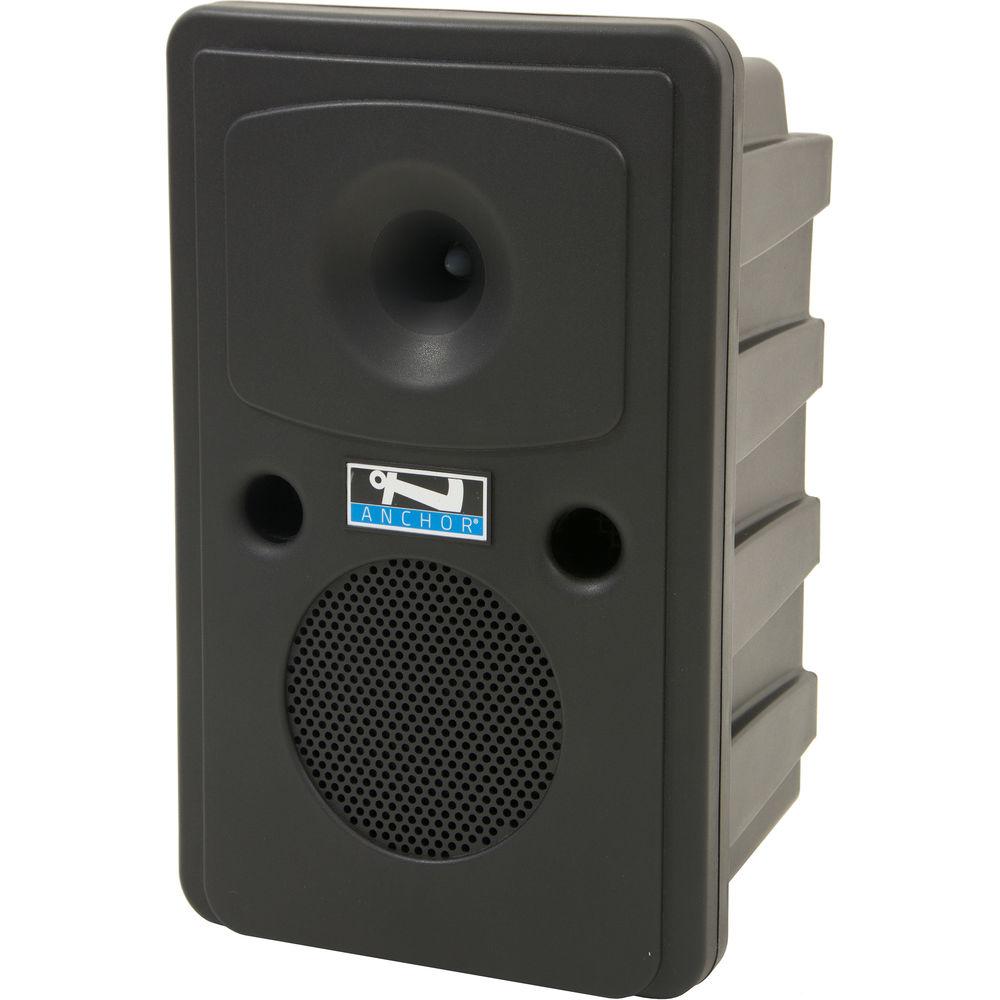

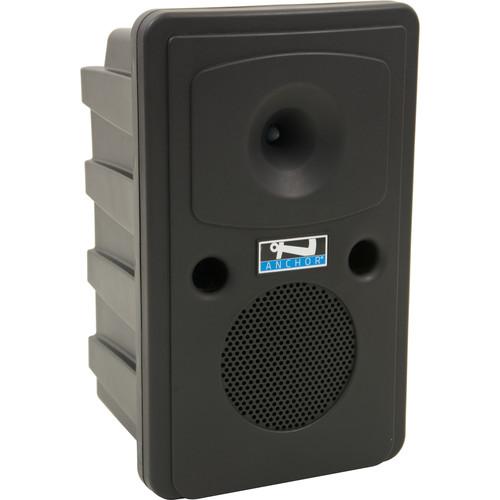

User Manual for Anchor Audio GG2-U4 Go Getter Bluetooth Portable Sound System with Two Dual-Channel Receivers Click to enlarge the picture
Contents of the user manual for the Anchor Audio GG2-U4 Go Getter Bluetooth
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
 |
User manual for the Anchor Audio GG2-U4 Go Getter Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio GG2-U4 Go Getter Bluetooth Portable Sound System with Two Dual-Channel Receivers delivers 109 dB of clear sound, features easy-to-use controls, and is suitable for both voice and background music. At 15.5 lb, it is portable and simple to setup on a speaker stand (not included) and can be used indoors or outdoors. The portable Go Getter system features AC or DC operation.This portable sound system with two dual-channel wireless receivers can operate up to 8 hours on a full charge (at medium volume) with the built-in rechargeable battery. It has a Bluetooth range of 100' (line of sight) and is built with a 6.5" woven fiber woofer and a high-output horn tweeter. In addition, the back panel features two universal microphone inputs, and an LED battery display that indicates charging and low battery. Also, there is a speaker out connector that can power an optional companion speaker (available separately) so you can increase the range of the sound and coverage. The GG2-U4 Go Getter Portable Sound System is suitable for school functions, corporate training, fitness centers, houses of worship, and more. - User-replaceable, lithium-ion rechargeable battery
- 6 to 8 hours of continuous music in DC mode at medium volume level (2 to 4 hours at full volume or longer for speech only)
- LED displays charging and low-battery warning
- Two dual-channel receivers with automatic channel switching
- 1.9 GHz wireless frequency range
- Comes with standard built-in Bluetooth v3.0 with a range of 100' (line of sight)
- Wireless data rate of up to 3 Mb/s
- Two microphone combo input jacks
- Recessed back panel protects knobs and ports
- 6.5" woven fiber woofer and high-output horn tweeter
- Limiter circuitry reduces distortion & increases intelligibility
- Durable injection-molded polypropylene case
- UV treated / fade resistant case
- External speaker output powers a companion speaker (available separately)
UPC: 819941015673 In the Box Anchor Audio GG2-U4 Go Getter Bluetooth Portable Sound System with Two Dual-Channel Receivers (1.9 GHz) Limited 6-Year Warranty Limited 2-Year Warranty for Receivers and Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio GG2-U4 Go Getter Bluetooth Portable Sound System with Two Dual-Channel Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Go Getter Specs | | | Rated Power Output | 75 W AC mode / 50 W DC mode | | Rated Power | Maximum SPL at 109 dB at 1 m | | Frequency Response | 60 Hz to 16 kHz | | AC Power Requirements | 90 to 264 VAC, 50/60 Hz | | Battery | Lithium-ion rechargeable battery, user replaceable | | Battery Life | 6 to 8 hours on a full charge
2000 charging cycles | | Microphone Input | Two Combos:
Lo-Z (1 kOhm), balanced, XLR
12 VDC condenser microphone phantom power
Hi-Z (10 kOhms), unbalanced 1/4" / 6.3 mm | | Auxiliary | Line Input: Hi-Z (10 kOhms), unbalanced 1/4" / 6.3 mm, 1/8" / 3.5 mm | | Line Output | Post Fader: Lo-Z, buffered, 1/4" / 6.3 mm, unbalanced/balanced | | Speaker Output | 4-pole Neutrik speakON jack | | Approvals | CE, RoHS | | Dimensions (H x W x D) | 18 x 11 x 9" / 46 x 28 x 23 cm | | Weight | 15.5 lb / 7.0 kg | | | | Version | 3.0 | | Range | 100' / 30 m, Class 1 Note: Bluetooth connection and behavior may depend on your individual device settings and capabilities. All testing was done using an Apple iPhone | | RF Output | Gain: +18 dB PA | | RF Input | Gain: +12 dB LNA | | Data Rate | 3 Mb/s | | | | Type | Dual-channel | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz |
