User Manual for Anchor Audio GG2-XU4 Go Getter Portable Sound System with Built-In Bluetooth, AIR Wireless Companion Transmitter, and Two Dual-Channel Receivers Click to enlarge the picture
Contents of the user manual for the Anchor Audio GG2-XU4 Go Getter Portable
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
 |
User manual for the Anchor Audio GG2-XU4 Go Getter Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|

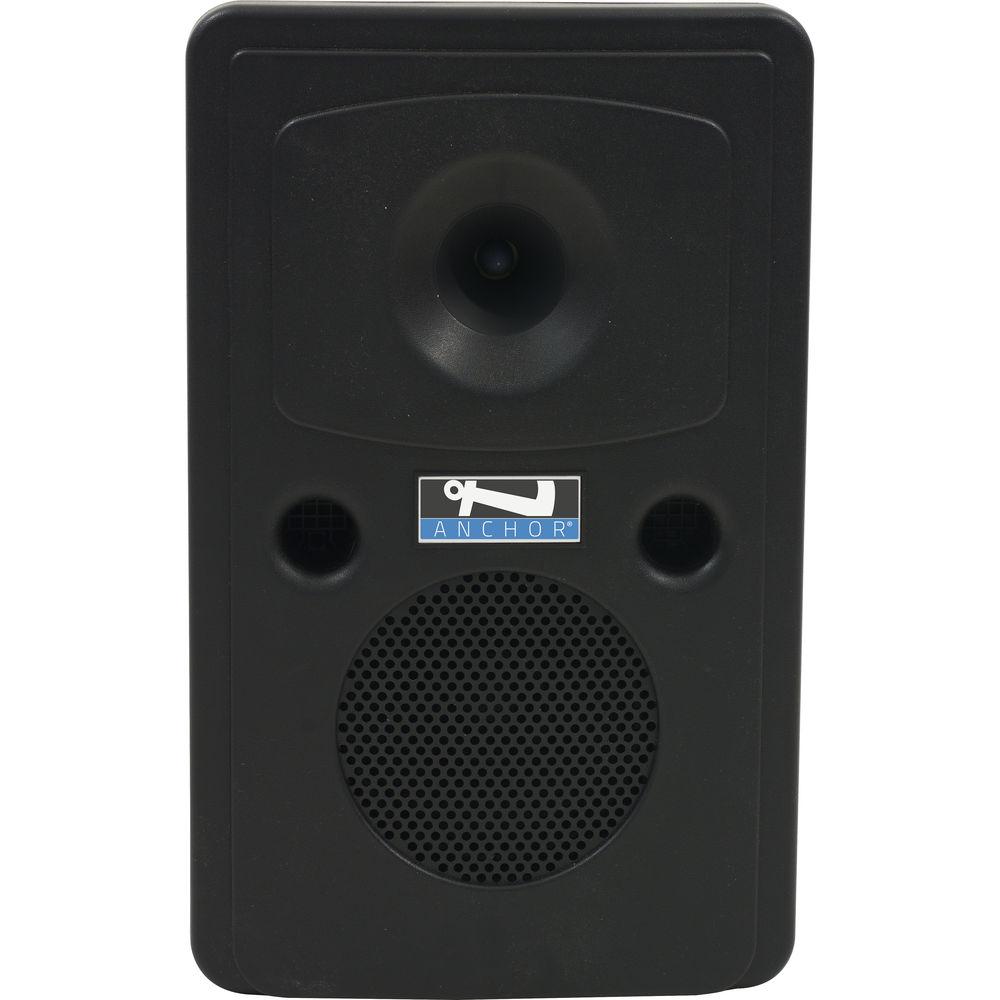

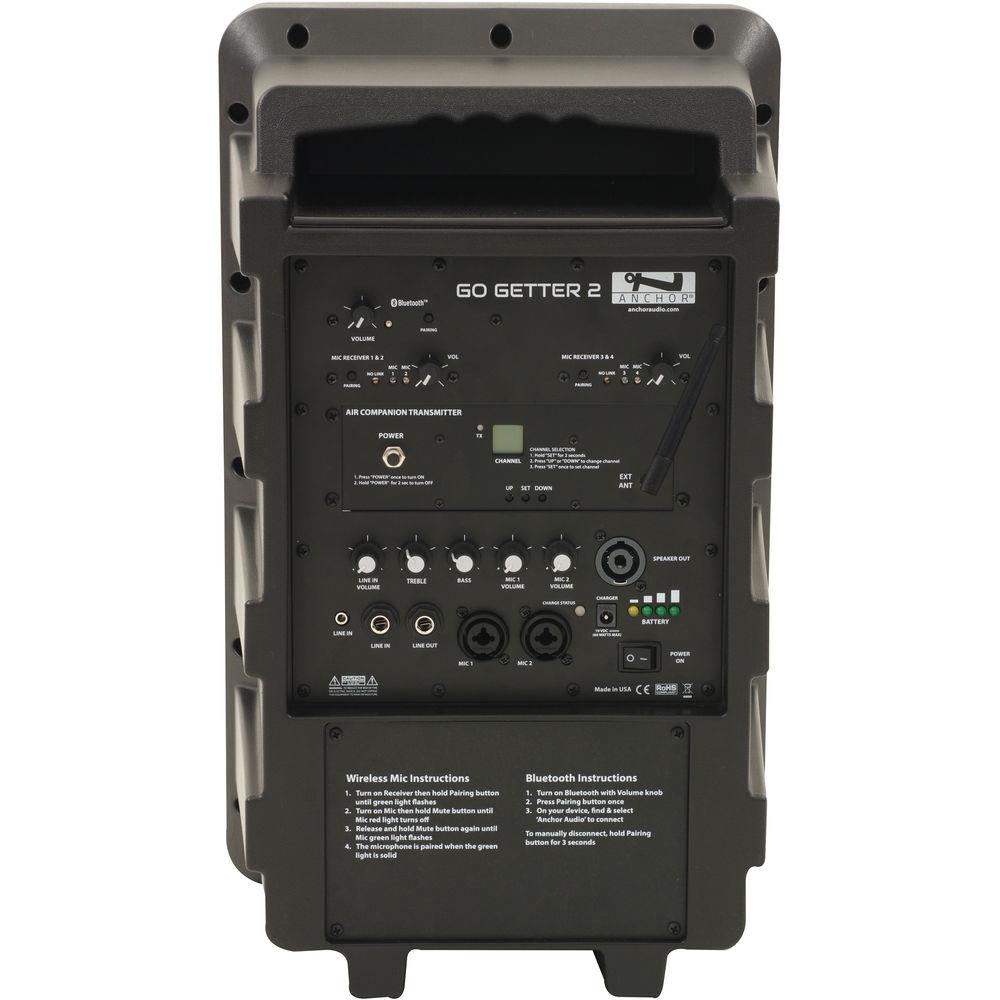

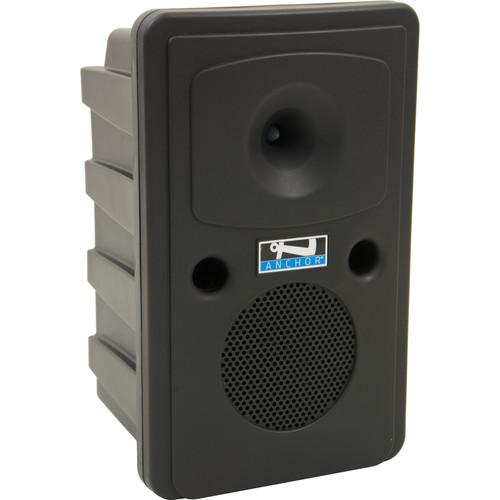

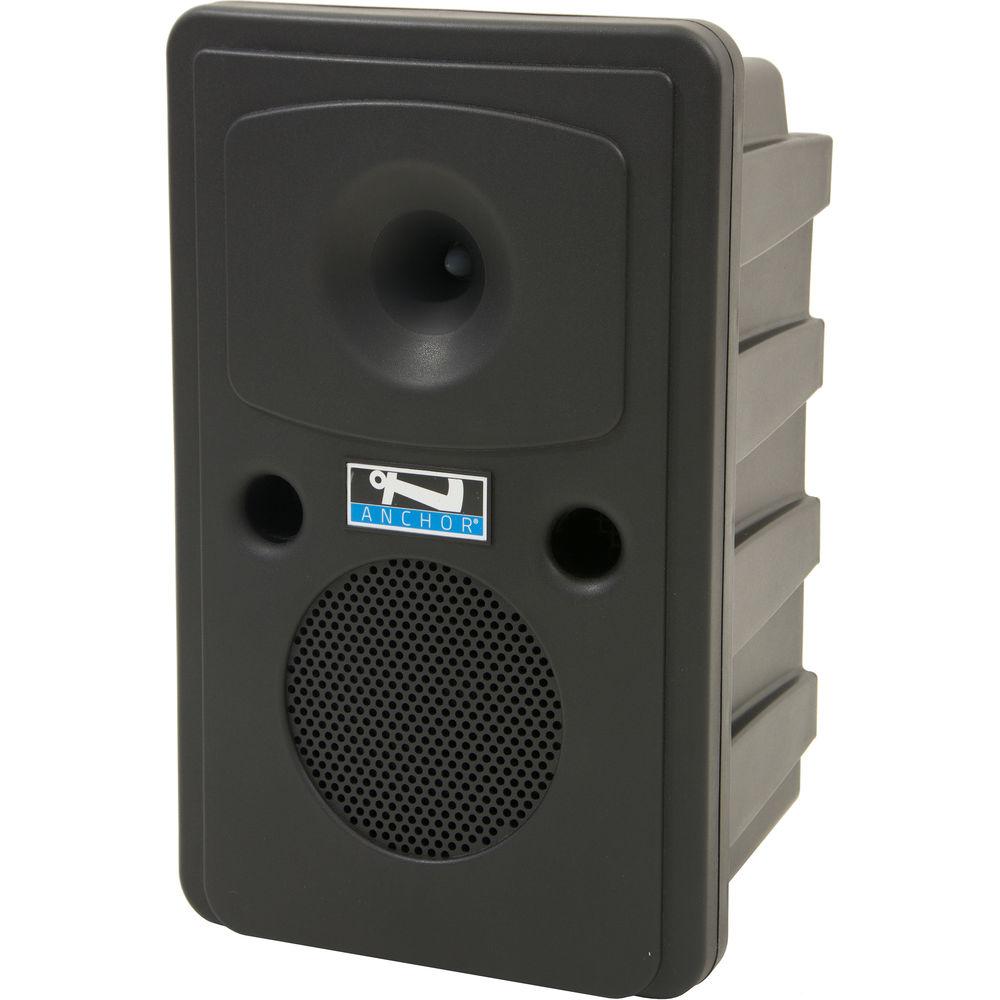

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio GG2-XU4 Go Getter Portable Sound System with Built-In Bluetooth, AIR Wireless Companion Transmitter, and Two Dual-Channel Receivers delivers 109 dB of clear sound and features easy-to-use controls. It is suitable for both voice and background music, and at 19 lb, is portable and easy to set up on an optional speaker stand (not included). The GG2-XU4 Go Getter can be used indoors or outdoors and features AC/DC operation. It comes with a built-in AIR wireless companion transmitter that wirelessly connects to one or more Go Getter AIR battery-powered companion speakers (available separately).This portable sound system, with two dual-channel wireless receivers can operate up to 8 hours on a full charge (at medium volume) with the built-in rechargeable battery. It has a Bluetooth range of 100' (line of sight) and is built with a 6.5" woven fiber woofer and a high-output horn tweeter. In addition, the back panel features two universal microphone inputs and an LED battery display that indicates charging and low battery.Finally, there is a speaker output connector that can drive an optional unpowered companion speaker (available separately) so you can increase the range of the sound. The GG2-XU4 Go Getter is suitable for school functions, corporate training, fitness centers, houses of worship, and more. - One 6.5" woven fiber woofer
- One high-output horn tweeter
- Reaches crowds up to 500+
- 75W AC mode / 50W DC mode
- One built-in AIR wireless companion transmitter
- Two dual-channel receivers with automatic channel switching
- 1.9 GHz wireless frequency range
- Wirelessly connects to multiple Go Getter AIR battery-powered companion speakers (available separately)
- Easily connects to Assistive Listening
- Standard built-in Bluetooth 3.0 module with high-speed wireless data rate of up to 3 Mb/s
- Two universal microphone input jacks
- User-replaceable, lithium-ion rechargeable battery provides up to 8 hours of operation on a full charge
- External speaker output powers an optional Go Getter unpowered or AIR companion speakers
- Alternate wired and wireless mode
UPC: 819941015703 In the Box Anchor Audio GG2-XU4 Go Getter Portable Sound System with Built-In Bluetooth, AIR Wireless Companion Transmitter, and Two Dual-Channel Receivers (1.9 GHz) Limited 6-Year Warranty Limited 2-Year Warranty for AIR Transmitter, Receivers, and Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio GG2-XU4 Go Getter Portable Sound System with Built-In Bluetooth, AIR Wireless Companion Transmitter, and Two Dual-Channel Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Go Getter Specs | Rated Power Output | 75 W AC / 50 W DC | | Maximum SPL | 109 dB at 0.3' / 1 m, rated power | | Battery | Lithium-ion rechargeable battery, user replaceable | | Battery Life | 6 to 8 hours on a full charge
2000 charging cycles | | AIR Transmitter | Frequency Range: 902 to 928 MHz
Range: 300' / 91.4 m, line of sight | | Mic Input | Lo-Z (1 kOhm), balanced, XLR
12 VDC condenser microphone (phantom) power
Hi-Z (10 kOhms) unbalanced, 1/4" phone | | Line In | 1/4" / 6.3 mm balanced, 1/8" / 3.5 mm stereo | | Bluetooth | Version 3.0
Class 1 radio
Range: 100' / 30.5 m, line of sight
+12 dB LNA input RF gain
+18 dB PA output RF gain
High-speed wireless data rate up to 3 Mb/s
Digital and analog stereo input and output | | Line Output | Isolated, 600 Ohms, 1/4" phone (post fader) | | Speaker Output | 4-pole Neutrik SpeakON jack | | DC Power Requirements | 19 VDC, 60 W maximum | | Dimensions (H x W x D) | 23 x 14 x 12" / 58.4 x 35.6 x 30.5 cm | | Weight | 19 lb / 8.6 kg | | | | Type | Dual-channel | | Frequencies | Automatic channel switching | | Frequency Range | 1.9 GHz |
