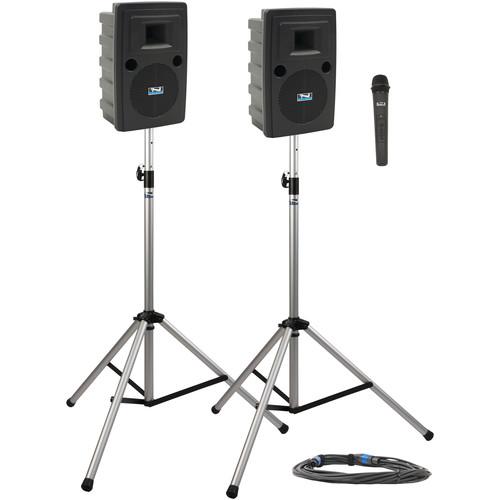

User Manual for Anchor Audio LIB-DP1-H Liberty Deluxe Package 1 Portable Bluetooth PA System with Handheld Wireless Microphone Transmitter, Unpowered Companion Speaker, and Speaker Stands

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

• LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver The Anchor Audio LIB2-U2 is a Liberty 2 portable PA system with Bluetooth and a dual wireless microphone receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The balanced 1/4" output can be routed to another PA system or an audio recorder, while the 4-pole speakON output can power a Liberty 2 companion speaker (available separately). Integrated mixer functions include volume controls and 2-band equalization. Power the Liberty 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simply physical setup of the system.
  • 125W of rated output power through a 10" woofer and a ceramic compression driver
  • 117 dB maximum SPL reaches crowds of up to 1500 people
  • External 4-pole speakON speaker output powers a Liberty 2 companion speaker (available separately)
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Anchor AIR compatible
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
  • Integrated pole mount and carry handle
  • Made in the USA
  UPC: 819941015796
• WH-LINK Wireless Handheld Microphone (1.9 GHz) The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'. Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • Volume and mute control on the microphone
    • Lightweight design
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  UPC: 819941016243
• LIB2-COMP Liberty 2 Passive Companion Speaker Made in the USA, the Anchor Audio LIB2-COMP is a Liberty 2 passive companion speaker designed to extend the coverage area of your Liberty 2 PA system. Able to handle 125W of power and produce 117 dB SPL through a 10" woofer and a ceramic compression driver, it delivers powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. Its 4-pole Neutrik speakON input allows a direct connection from the speakON output of your Liberty 2 PA. Being passive, the LIB2-COMP requires no power supply. Gig-to-gig transport is made easy with the built-in carry handle, which also simplifies the process of hoisting the LIB2-COMP onto a speaker stand. The integrated pole mount ensures secure placement atop your speaker pole.
  • Designed to be daisy-chained from Liberty 2 portable PA systems
  • 4-pole Neutrik speakON input allows direct connection from your Liberty 2 portable PA
  • 10" woofer and a ceramic compression driver handle 125W of power
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Passive design requires no power supply
  • Made in the USA
  UPC: 819941015789
• SS-550 Heavy-Duty Speaker Stand The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.
  • Heavy-duty brushed aluminum frame
  UPC: 689466057065
• SC-50NL 50' 4-Pole Speakon Speaker Cable Use Anchor Audio's SC-50NL 50' 4-Pole Speakon Speaker Cable to join speakers across a large auditorium, stage, or outdoor space. (Multiple speakers are recommended to spread sound evenly to reach an entire audience.)

  If you have Anchor's XTREME Sound System, connect one end of the SC-50NL to the Companion Speaker Output of the XTREME. Next, patch the other end into an XTR-6001 Unpowered Companion Speaker. The SC-50NL supplies power and signal to drive the XTR-6001.
  Neutrik Speakon Connection
  • The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the XTREME Dual-Function Sound System.
  Connect up to 50.0' (15.24 m) Away
  • Join speakers up to 50.0' (15.24 m) apart using this cable.
  UPC: 689466056983

• Limited 6-Year Warranty on Line Array

• Limited 2-Year Warranty on Battery

• Limited 2-Year Warranty

• Limited 6-Year Warranty

• 6 Year Limited Warranty

• 50.0' (15.24 m) Cable with Speakon Connectors

• Limited 6-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver

  LF Driver	1 x 10" / 25.4 cm woofer
  HF Driver	1 x Ceramic compression driver
  Rated Power Output	125 W (AC mode) 100 W (DC mode)
  Maximum SPL	117 dB at 1 m
  Inputs	2 x XLR/1/4" combo (balanced) 1 x 1/4" TRS balanced 1 x 1/8" / 3.5 mm stereo
  Outputs	1 x 1/4" TRS 1 x 4-pole Neutrik speakON jack
  Frequency Response ± 3dB	60 Hz to 15 kHz
  Input Sensitivity	Lo-Z Microphone: -52 dBV (2.5 mVrms) Hi-Z Microphone: -43 dBV (7.5 mVrms) Auxiliary: -14 dBV (200 mVrms) Phantom Power: 36 V
  Input Impedance	Lo-Z: 1 kOhm Hi-Z: 10 kOhms
  Output Impedance	Line: 600 Ohms
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' (line of sight)
  Phantom Power	12 VDC
  Battery	2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max
  Dimensions (H x W x D)	23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm
  Weight	28 lb / 12.7 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	27.8 x 16.3 x 14.0"

• WH-LINK Wireless Handheld Microphone (1.9 GHz)

  Frequency Band	1.9 GHz
  Wireless Range	300' / 91 m, line of sight
  Controls	Volume Mute
  Power	2 x AA batteries Operates up to 8 hours

  Box Dimensions (LxWxH)	10.45 x 3.15 x 2.3"

• LIB2-COMP Liberty 2 Passive Companion Speaker

  LF Driver	1 x 10" / 25.4 cm woofer
  HF Driver	1 x Ceramic compression driver
  Maximum Power Handling	125 W
  Maximum SPL	117 dB at 1 m
  Frequency Response ± 3dB	60 Hz to 15 kHz
  Input	1 x 4-pole Neutrik speakON
  Dimensions (H x W x D)	23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm
  Weight	20.5 lb / 9.3 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	27.5 x 16.3 x 14.2"

• SS-550 Heavy-Duty Speaker Stand

  Type	Speaker Stand
  Load Capacity	75 lb / 34 kg
  Height Adjustment Range	38 to 70" / 96.5 to 177.8 cm

  Box Dimensions (LxWxH)	43.2 x 6.0 x 6.0"

• SC-50NL 50' 4-Pole Speakon Speaker Cable

  Box Dimensions (LxWxH)	14.3 x 9.7 x 2.2"
