Anchor Audio LIB-DP2-AIR-BB Liberty Deluxe AIR

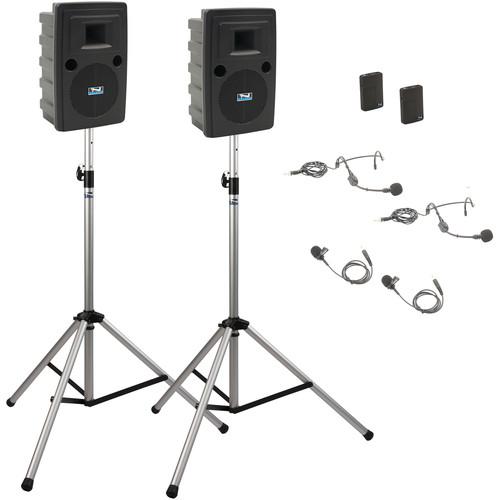

User Manual for Anchor Audio LIB-DP2-AIR-BB Liberty Deluxe AIR Package 2 Portable Bluetooth PA System with AIR Transmitter, Two Bodypack Transmitters, Wireless Companion Speaker, and Speaker Stands

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

• LIB2-XU2 Liberty 2 Portable PA System with Bluetooth, AIR Transmitter & Dual Mic Receiver The Anchor Audio LIB2-XU2 is a Liberty 2 portable PA system with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The balanced 1/4" output can be routed to another PA system or an audio recorder, while the 4-pole speakON output can power a Liberty 2 companion speaker (available separately). Integrated mixer functions include volume controls and 2-band equalization. The supplied AIR wireless transmitter enables cord-free connection to a compatible companion speaker. Power the Liberty 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simply physical setup of the system.
  • 125W of rated output power through a 10" woofer and a ceramic compression driver
  • 117 dB maximum SPL reaches crowds of up to 1500 people
  • External 4-pole speakON speaker output powers a Liberty 2 companion speaker (available separately)
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Includes an AIR wireless transmitter for cord-free connection to a companion speaker
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
  • Integrated pole mount and carry handle
  • Made in the USA
  UPC: 819941015840
• LIB2-AIR Liberty 2 AIR Wireless Companion Speaker Made in the USA, the Anchor Audio LIB2-AIR is a Liberty 2 wireless companion speaker designed to extend the coverage area of your Liberty 2 PA system. Able to handle 125W of power and produce 117 dB SPL through a 10" woofer and a ceramic compression driver, it delivers powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. It features two modes, AIR for active operation with a wireless source, and Wired for passive operation with a wired source. A built-in AIR wireless receiver allows a cord-free signal connection from your Liberty 2 portable PA and offers adjustable volume and 2-band EQ for the wireless signal it receives. Its 4-pole Neutrik speakON input allows a direct connection from the speakON output of your Liberty 2 PA. The LIB2-AIR requires no power source in Wired mode, but can be powered via AC power or the built-in rechargeable batteries in AIR mode. The lithium-ion batteries provide approximately six to eight hours of operating time on a single charge. A 4-stage LED meter indicates battery and charging status. Gig-to-gig transport is made easy with the built-in carry handle, which also simplifies the process of hoisting the LIB2-AIR onto a speaker stand. The integrated pole mount ensures secure placement atop your speaker pole.
  • Designed to be daisy-chained from Liberty 2 portable PA systems
  • Built-in AIR wireless receiver for cord-free connection from your Liberty 2 portable PA
  • Adjustable volume and 2-band equalization on the AIR wireless receiver
  • 4-pole Neutrik speakON input allows a wired connection from your Liberty 2 portable PA
  • Toggle switch allows operation in AIR mode (active/wireless) or Wired mode (passive/wired)
  • 10" woofer and a ceramic compression driver handle 125W of power
  • Built-in rechargeable batteries grant up to eight hours of operating time
  • Standard IEC outlet for battery charging or AC operation
  • 4-stage LED battery status meter
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Made in the USA
  UPC: 819941015772
• WB-LINK Wireless Bodypack Transmitter (1.9 GHz) The Anchor Audio WB-LINK is a wireless bodypack transmitter compatible with sound and PA systems equipped with AnchorLink Series receivers. It operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range up to 300'. Pairing the WB-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The unit is equipped with a 3.5mm input connector and accepts AnchorLink Series lavalier, headset, earset, and collar mics. The WB-LINK features volume and mute buttons, which enable you to conveniently mute and adjust the volume of your microphone without having to go to your speaker. The transmitter can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • 3.5mm microphone input connector
    • Volume and mute control on the microphone
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  Compatible Microphones (with 3.5mm Connectors)
  • • CM-LINK collar mic
    • EM-LINK Ultralite earset mic
    • HBM-LINK headset mic
    • LM-LINK lavalier mic
  UPC: 819941016212
• LM-LINK Cardioid Lavalier Microphone for AnchorLink Series Transmitter (3.5mm Connector) Ideal for speakers who prefer the hands-free convenience of a wearable microphone, the Anchor Audio LM-LINK is a lavalier mic with a 3.5mm connector for use with the AnchorLink Series WB-LINK bodypack transmitter. It features a cardioid polar pattern designed to minimize unwanted feedback when using the mic near a speaker. The LM-LINK ships with a clip and a foam windscreen. UPC: 819941015888
• HBM-LINK Cardioid Headset Microphone for AnchorLink Series Transmitter (3.5mm Connector) Ideal for speakers who prefer the hands-free convenience of a wearable microphone, the Anchor Audio HBM-LINK is a headset mic with a 3.5mm connector for use with the AnchorLink Series WB-LINK bodypack transmitter. It features a cardioid polar pattern designed to minimize unwanted feedback when using the mic near a speaker. UPC: 819941015734
• SS-550 Heavy-Duty Speaker Stand The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.
  • Heavy-duty brushed aluminum frame
  UPC: 689466057065

• Limited 6-Year Warranty on Line Array

• Limited 2-Year Warranty on Battery

• Limited 6-Year Warranty on Speaker System

• Limited 4-Year Warranty on Batteries

• Belt Clip

• Limited 2-Year Warranty

• Clip

• Foam Windscreen

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 6 Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LIB2-XU2 Liberty 2 Portable PA System with Bluetooth, AIR Transmitter & Dual Mic Receiver

  LF Driver	1 x 10" / 25.4 cm woofer
  HF Driver	1 x Ceramic compression driver
  Rated Power Output	125 W (AC mode) 100 W (DC mode)
  Maximum SPL	117 dB at 1 m
  Inputs	2 x XLR/1/4" combo (balanced) 1 x 1/4" TRS balanced 1 x 1/8" / 3.5 mm stereo
  Outputs	1 x 1/4" TRS 1 x 4-pole Neutrik speakON jack
  Frequency Response ± 3dB	60 Hz to 15 kHz
  Input Sensitivity	Lo-Z Microphone: -52 dBV (2.5 mVrms) Hi-Z Microphone: -43 dBV (7.5 mVrms) Auxiliary: -14 dBV (200 mVrms) Phantom Power: 36 V
  Input Impedance	Lo-Z: 1 kOhm Hi-Z: 10 kOhms
  Output Impedance	Line: 600 Ohms
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' (line of sight)
  Phantom Power	12 VDC
  Battery	2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max
  Dimensions (H x W x D)	23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm
  Weight	28 lb / 12.7 kg
  Country of Manufacture	United States of America

• LIB2-AIR Liberty 2 AIR Wireless Companion Speaker

  LF Driver	1 x 10" / 25.4 cm woofer
  HF Driver	1 x Ceramic compression driver
  Maximum Power Handling	125 W
  Maximum SPL	117 dB at 1 m
  Frequency Response ± 3dB	60 Hz to 15 kHz
  Input	1 x 4-pole Neutrik speakON
  Wireless Frequency Range	902 to 928 MHz
  Wireless Range	Up to 300' / 91.4 m (line of sight)
  Battery	2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max
  Dimensions (H x W x D)	23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm
  Weight	27 lb / 12.2 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	24.0 x 16.0 x 14.0"

• WB-LINK Wireless Bodypack Transmitter (1.9 GHz)

  Frequency Band	1.9 GHz
  Wireless Range	300' / 91 m, line of sight
  Input Connector	1/8" / 3.5 mm
  Controls	Volume Mute
  Power	2 x AA batteries Operates up to 8 hours

  Box Dimensions (LxWxH)	5.7 x 4.0 x 1.3"

• LM-LINK Cardioid Lavalier Microphone for AnchorLink Series Transmitter (3.5mm Connector)

  Polar Pattern	Cardioid
  Connector	1/8" / 3.5 mm

  Box Dimensions (LxWxH)	4.2 x 2.95 x 2.5"

• HBM-LINK Cardioid Headset Microphone for AnchorLink Series Transmitter (3.5mm Connector)

  Polar Pattern	Cardioid
  Frequency Response	100 Hz to 18 kHz
  Sensitivity	-84 dB Rating 70% users recommend this product to others. And what about you? This product has already been rated by 31 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
